* 8CH 4MP/3MP/1080P/720P IP camera input;
* 1/4CH playback;
* embeded 8 PoE Network ports;
* Supports dual stream;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 2 USB2.0 ports, 1 SATA 3.0 HDD port(up to 4000G);
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS,StreamView APP
* Support P2P
| Specification: | |||
| System | GUI | 16-bit True Color | |
| Operating System | Embedded Linux OS | ||
| Password security | Multi-level users management, 1 Admin + 19 Users | ||
| A/V Input | Video Input | IP Camera x8 POE | |
| Audio Input | NO | ||
| A/V Output | Decoding resolution | 4MP/3MP/1080P/720P | |
| VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | ||
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | ||
| Audio output | 1CH RCA (Linear, 1kΩ) | ||
| Playback resolution | 4MP/3MP/1080P/720P | ||
| Synchronous playback | 4CH | ||
| HDD | SATA Devices | 1 x SATA HDD | |
| Maximum capacity | 4TB | ||
| External HDD | 1 x Esata, e-sata as storange function. | ||
| External Interface | USB Connector | 2 x USB2.0 | |
| Serial Interface | NO | ||
| 2 way audio (voice talk) | NO | ||
| Alarm input/output | Optional | ||
| Network Interface | RJ 45,10M/100 M Ethernet, 8 Network ports for IP camera, 1 Giga network port for LAN/WAN | ||
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | ||
| System Upgrade | Supports USB update | ||
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | ||
| General | Power Supply | Input 100~240V, 48V 2A | |
| Consumption | <10W without HDD&PoE | ||
| Working temperature | -10℃~+55℃(14°F~131°F) | ||
| Working humidity | 10%~90% | ||
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 2.0 kg | ||
User interface(Very easy to use)
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .

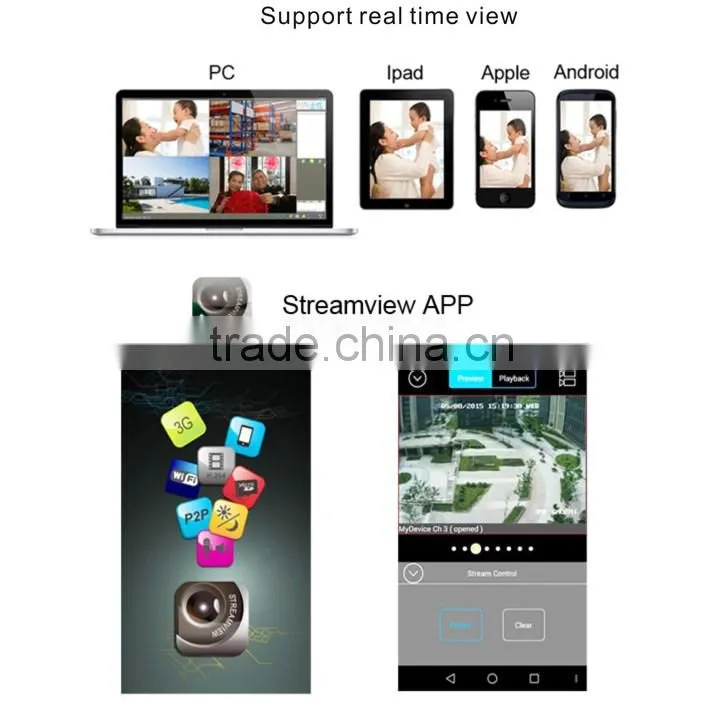

4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
