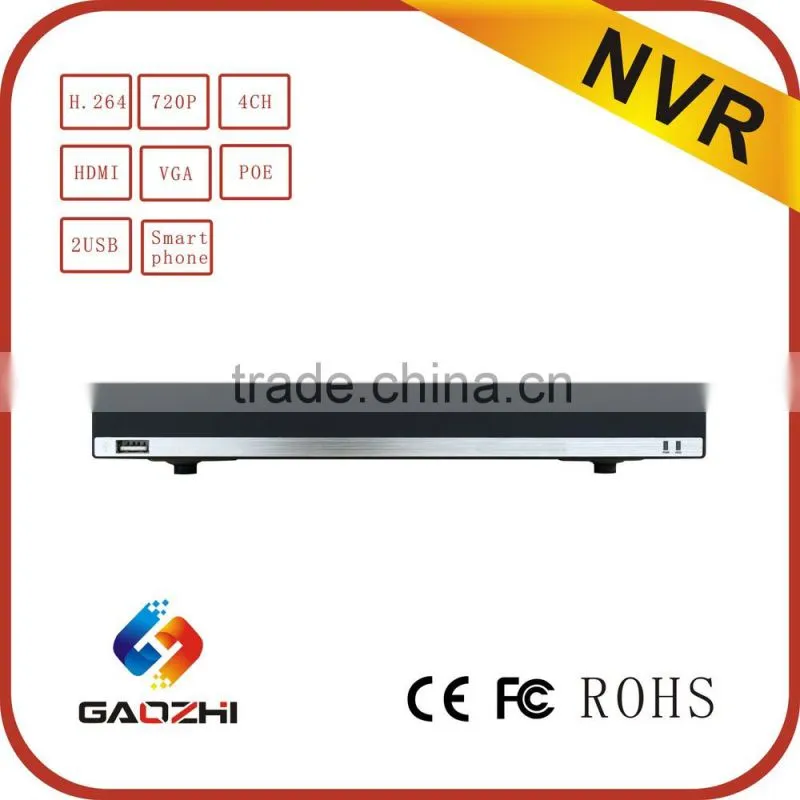

720P NVR 4CH Onvif P2P HDMI POE Network Video Recorder
* H.264 high profile compression;
* 4CH 720P IPCam input;
* 4CH of IP channel playback;
* Support dual stream; * Support VGA ( Maximum 720p ) , HDMI ( Maximum 720p)output;
* 2 USB2.0 ports;
* Support IR remote control;
* Support 4 10/100 Ethernet interface;
* 1 RS-485 port;
* Support smart phone real time remotely monitoring,such as iPhone,Android;
* Provide IE Activex,CMS, iView NVR APP management software .
| Specification: | |||
| Video | Input | IP Camera x4, 4port Ethernet &PoE | |
| Output | VGA ( Maximum 720p ) , HDMI ( Maximum 720p) | ||
| HDMI | 720p Output | ||
| System | Operating System | Embedded Linux OS | |
| SATA Devices | 1 x SATA HDD | ||
| USB | 2 x USB2.0 | ||
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 1.8kg | ||
| Power Supply | Input 100~240V, Output 48V 1.25A | ||
| Power Rating (Not include PoE) | 10W | ||
| Account | 1 Admin + 19 Users | ||
| Display | Speed | 120 fps (NTSC) / 100 fps (PAL) | |
| Split Screen | 1,4,SEQ. | ||
| Mode | Digital Zoom ( x2 ~ x6), PIP, Auto SEQ. | ||
| Recording | Compression | H.264 High Profile | |
| Dual Stream Resolution (Pixel) | Main (Recording) | 1920x1080,1280x720 (NTSC) | |
| Sub (Network) | 1/4 Main Stream | ||
| Picture Quality | 384kbps-6Mbps | ||
| Mode | Normal, Manual, Event, Schedule | ||
| Maximum Speed | 120fps@1080P IP Camera | ||
| Pre-Alarm | 5 SEC | ||
| Post-Alarm | 5/10/15/ 20/30/60/120/300/600 SEC | ||
| Playback | Display | 1, 4 | |
| Search Mode | Date/Time, Event | ||
| Zoom | Digital ( x2 ~ x6 ) | ||
| Snapshot | NO | ||
| Speed | Play, Pause, Stop, Slow(1/2, 1/4, 1/8,1/16), FF(2,4, 8, 16), REW(2,4, 8, 16), Frame Step | ||
| Device | Int. HDD | ||
| Network | Network Interface | 1 pc 10/100 Ethernet for LAN+4 pcs 10/100 Ethernet for IPC | |
| Protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Owif | ||
| Application | Windows XP/VISTA/7/8, Mac OS X | ||
| Remote Software | iView HVR APP Software, IE Browser,Google Chrome Browser,Firefox Browser | ||
| CMS | CMS for Windows XP, Windows Vista, Windows 7/8 | ||
| Mobile Device | iPhone(IOS6.0 and above), iPad(IOS6.1 and above), Android Phone( 3.0 and above), Android Pad( 3.0 and above) | ||
| Event Transport | |||
| Backup | Interface | USB 2.0 | |
| Audio Backup | YES | ||
| Network | YES | ||
| Backup Device | USB Flash Drive | ||
| Alarm | Motion Detection | Detect Fram: Channel | |
| Event Log | Up to the 5000 Events | ||
| GUI | 32-bit True Color | ||
| OSD & DVR Control | Multi-Language | Chinese,English, Spanish,Russian,Portuguese,German,Romanian,Thai,etc | |
| Camera Title | English | ||
| USB Mouse | YES | ||
| Remote Controller | IR Remote Control | ||
| System Upgrade | USB Flash Drive | ||
User interface (Auto Add IP Cameras)------Easy to use
Support real time view (PC,IOS, Android)
Hunan Gaozhi Science and Technology Co. Limited is a High technology company with the registered capital of 4 million USD, Offer satisfactory ODM,OEM service in Security & Surveillance Field.
1.R&D Team
About 50 R&D engineers, most are from Huawei and Key members specialized for 11years . Also more than 10% of annual profits was invested .New products come out continuously with New feature& good performance.
2. Main products
AHD Camera / recorder include 720P,960P,1080P
Used in engineering projects due to low cost .
Hybrid DVR support analog/ahd/ipc 3 input,
No need change cable when upgrade the video resolution.
IP camera / NVR ---Include POE and WIFI
Mainly use for Home, office , Small shop for easy installation & High quality of Video picture.
3.Primary advantage
1.Excellent & Stable quality approved by Famous distributor
2.Big Capital-Supported by Government,
3.Strong R&D team, customized service .
4.2-years quality guarantee
1.Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
