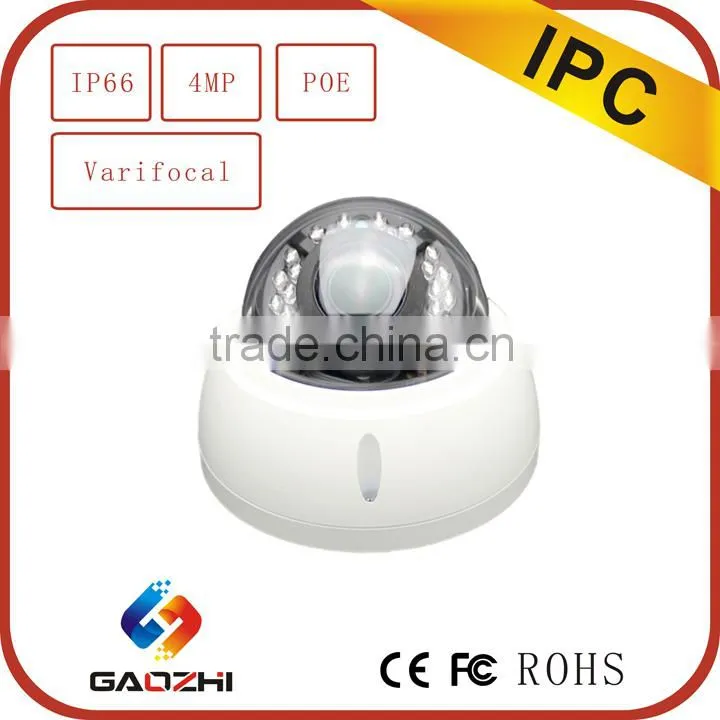

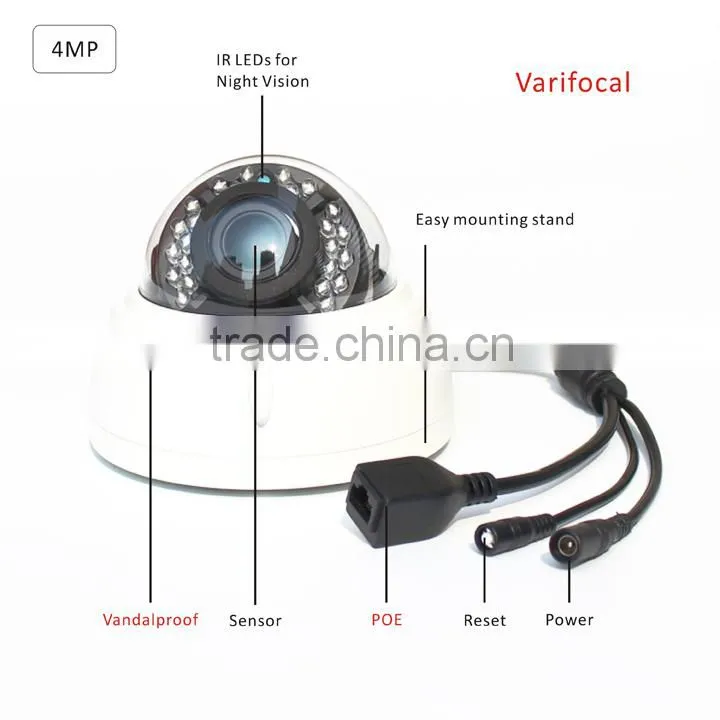

2015 4MP 2.8-12 mm Auto-Focal dome Ip camera
* 1/3" 4Megapixel progressive scan CMOS
* H.264 High profile encoding
* Max 30fps@4M(2512*1520)
* 4x optical zoom,6x digital zoom
* 2.8~12mm varifocal motorized lens
* Supports IR-CUT filter switch to achieve day and night monitoring
* Metal housing, Ingress protection IP66
* Built-in PoE for easy installation
* Max. IR LEDs distance 30m
* Onvif V2.1 protocol
| Camera | Image Sensor | 1/3" 4Megapixel CMOS | |
| Effective Pixels | 2512 (H)x1520(V) | ||
| Min. Illumination | Color: 0. 05LUX/F1.4, B/W: 0Lux (IR on) | ||
| S/N Ratio | >50dB | ||
| Backlight Compensation | BLC | ||
| WDR | Digital WDR | ||
| Noise Reduction | 3D DNR | ||
| Gain Control | Auto/Manual | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| White Balance | Auto | ||
| Electronic Shutter Speed | Auto/Manual 1/50~1/10000 | ||
| IR distance | IR distance 30 Meters(24pcs LED) | ||
| Adjustment Range | Pan:30° - 150°, Tilt: 0° - 65°, Rotation: 30° - 150° | ||
| Lens | Focal Length | 2.8~12mm motorized | |
| Max Aperture | F1.4 | ||
| Focus control | Auto | ||
| Angle of View | H: 107°(Wide)~35° (Tele), V: 61°(Wide)~20° (Tele) | ||
| Lens Type | Motorized/Auto Iris(DC) | ||
| Video | Video Compression | H.264 High Profile / JPEG Snapshot | |
| Resolution | Main Stream:4M(2512*1520)/3M(2048*1536)/1080P(1920*1080) Sub Stream: 352*288 | ||
| Video Bitrates | 1024Kbps ~ 8092Kbps | ||
| Video Frame Rate | 30fps@4M | ||
| Audio | Compression | ADPCM | |
| Interface | 1channel Audio in /RCA | ||
| Network | Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | Option | ||
| Network Protocol | IPv4, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Cloud | ||
| Network Preview | Web browser view, including IE,Chrome,Firefox | ||
| Smart Phone | Supports iPhone,iPad, Android phone,pad,Windows Mobile phone. | ||
| Compatibility | Onvif V2.1 | ||
| Max. User Access | 12 Users | ||
| General | Power Supply | DC12V & PoE (802.3af) | |
| Power Consumption | <8W | ||
| Working Environment | -10℃~+55℃(14°F~131°F),10%~90% | ||
| Ingress Protection | IP66 | ||

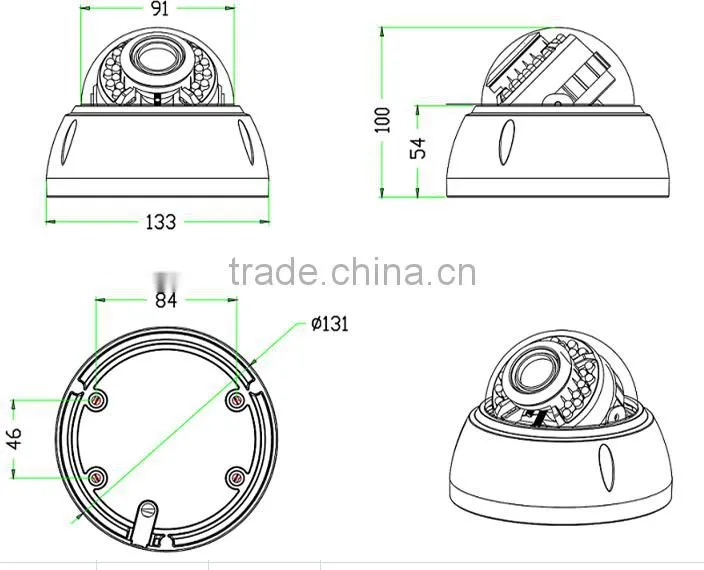

| Dimensions | Φ133 x 100mm | ||
| Weight | 720g | ||
Hunan Gaozhi Science and Technology Co. Limited is a High technology company with the registered capital of 4 million USD, Offer satisfactory ODM,OEM service in Security & Surveillance Field.
1.R&D Team
About 50 R&D engineers, most are from Huawei and Key members specialized for 11years . Also more than 10% of annual profits was invested .New products come out continuously with New feature& good performance.
2. Main products
AHD Camera / recorder include 720P,960P,1080P
Used in engineering projects due to low cost .
Hybrid DVR support analog/ahd/ipc 3 input,
No need change cable when upgrade the video resolution.
IP camera / NVR ---Include POE and WIFI
Mainly use for Home, office , Small shop for easy installation & High quality of Video picture.
3.Primary advantage
1.Excellent & Stable quality approved by Famous distributor
2.Big Capital-Supported by Government,
3.Strong R&D team, customized service .
4.2-years quality guarantee
1.Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
