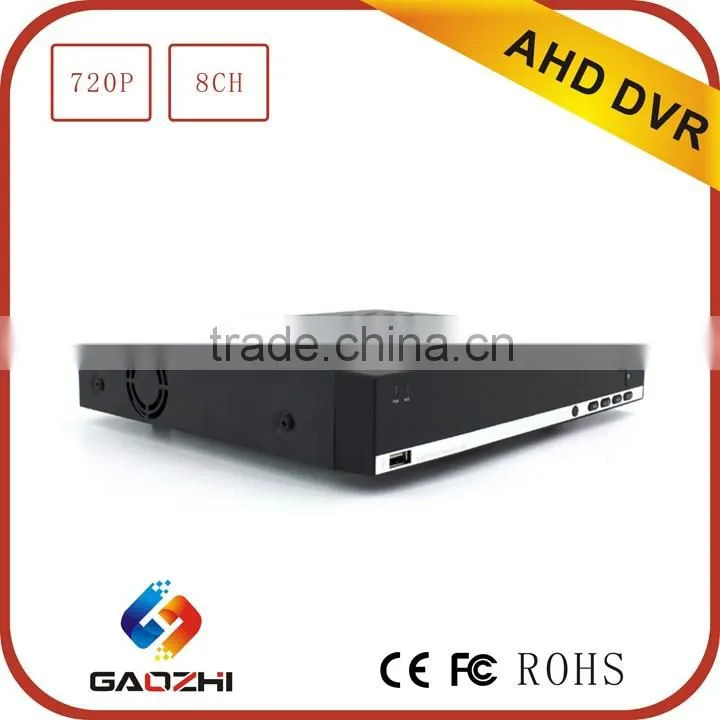

Help Center1080P 8CH.264 P2p Ahd Dvr
Related Products
-
H.264 4CH 2MP Onvifi P2P Remote Monitoring AHD DVRUS$ 40 - 60MOQ: 10 Pieces -
Best Selling ! Dvr Player, Password Security P2p1080p 4CH h 264 DvrUS$ 40 - 60MOQ: 10 Pieces
-
Provide IE Activex,CMS,StreamView APP P2P h 264 Dvr Software,720p 4CH Dvr RohsUS$ 39 - 41MOQ: 25 Pieces
-
2016 New Arrival ! Rohs H.264 8ch Dvr ,USB 2.0 8CH 720P 1080p P2p hd DvrUS$ 45 - 60MOQ: 10 Pieces
-
Real Time Remotely Monitoring 2 USB 2.0 Ports 720P h 264 Network Dvr SoftwareUS$ 39 - 41MOQ: 25 Pieces
* With P2P funciton;
* Version Ⅰ 3ways to connect cameras;
A: 8CH 720P/960H AHD input;
B: 8CH 720p/1080p/3MP IPC input;
C: 4CH AHD+4CH IPC input;
*VersionⅡ: 8CHxAHD + 4CH x IPC;
* 4CH analog playback or 1CH of IP playback;
* Supports dual stream;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 4CH audio input, 1CH audio output;
* 2 USB2.0 ports, 1 SATA2.0 HDD port(up to 4000G);
* Supports IR remote control;
* 1 RS-485 port;
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS, Stream View APP management software.
| Specification: | |||
| System | GUI | 16-bit True Color | |
| Operating System | Embedded Linux OS | ||
| Password security | Multi-level users management, 1 Admin + 19 Users | ||
| A/V Input | Video Input | AHD camera x 8 or AHD camera x 8 + IP Camera x4 | |
| Audio Input | 1CH RCA | ||
| A/V Output | VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080(1080P) | |
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080(1080P) | ||
| Spot output | NO | ||
| Loop output | NO | ||
| Audio output | 1CH RCA (Linear, 1kΩ) | ||
| A/V encoding parameters | Video compression | H.264 High Profile | |
| Video standard | PAL/NTSC | ||
| Stream type | Video& Audio/Video | ||
| Video frame rate | Pal:1-25FPS, NTSC:1-25FPS | ||
| Maximum frame rate | 8CH 720P AHD/8CH 3M IPC/4CH 720PAHD+4CH 3M IPC : 200FPS 8CH 720P AHD +4CH IP: 200FPS+100FPS |
||
| Video bit rate | AHD: 768kbps-3072kbps IP:1536kbps-8192 kbps | ||
| Dual Stream Resolution (Pixel) | Main Stream (Recording) :IPCam:3M,1080P,720P ; Analog:AHD:1280x720 ,960H: 960x576(480) | ||
| Sub Stream (Network):1/4 Main Stream | |||
| Record mode | Manual,Schedule,Motion | ||
| Video search | Date/time, Event | ||
| Display | 1/4 /8/9/12/SEQ optional | ||
| Audio compression | 8K*16bit ADPCM | ||
| Audio bit rate | 32Kbps | ||
| Recording & playback performance |
Version1: A: 8CH 720P AHD 200FPS recording + 4 CH 100FPS playback ; B: 8CH 3M IP 200FPS recording + 1 CH 25FPS playback ; C: 4CH 720P AHD 100FPS recording + 4CH 3M IP 100FPS recording + 1 CH 25FPS playback ; Version2: 8CH 720P AHD 200FPS recording + 4CH 3Mega IP 100FPS recording+ 1CH 25FPS playback |
||
| HDD | SATA Devices | 1 x SATA HDD | |
| Maximum capacity | 4TB | ||
| External HDD | 1 x Esata, e-sata as storage function. | ||
| External Interface | USB Connector | 2 x USB2.0 | |
| Serial Interface | 1RS-485 serial port | ||
| 2 way audio (voice talk) | NO | ||
| Alarm input/output | Optional | ||
| Network Interface | RJ 45,10M/100 M Ethernet | ||
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | ||
| System Upgrade | Supports USB update | ||
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | ||
| General | Power Supply | Input 100~240V, Output 12V 2A | |
| Consumption | <6W without HDD | ||
| Working temperature | -10℃~+55℃(14°F~131°F) | ||
| Working humidity | 10%~90% | ||
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 1.6kg | ||
User interface(Very easy to use)
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
