Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 2016 New Cctv Dvr Security Camera Surveillance System
2016 New Cctv Dvr Security Camera Surveillance System
US$ 149 - 180
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GaoZhi
Model Number:
GZ-KH44-E1010
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top10 720p 4ch Ahd Dvr Kit Cctv CameraUS$ 149 - 180MOQ: 1 Set -
Hot Sale 8ch Ahd Cctv Dvr ir Camera System Made in ChinaUS$ 210 - 260MOQ: 10 Sets
-
2016 New CMOS 720P AHD P2p 4ch Dvr SystemUS$ 149 - 180MOQ: 10 Sets
-
Cctv Ahd Camera and Dvr 720p 4 Channel Bullet Waterproof Security Camera System,800 Tvl Cctv Camera,hi-tech Cctv DvrUS$ 340 - 470MOQ: 1 Set
-
-4CH POE DVR 720P AHD Analog Camera KitsUS$ 99 - 99.8MOQ: 30 Sets
Place of Origin
Guangdong, China
Brand Name
GaoZhi
Model Number
GZ-KH44-E1010
2016 new cctv dvr security camera surveillance system
Product Description
Specification
| |||
| 720p ahd camera | Model No. :GZ-AHD-E1010-PB3132 | ||
| Picture | Key Features | ||
|
•1/4sensor,varifocal 2.8-12mm lens •Effective Pixels:1280*720 •400m lossless transmission without delay •35-40m IR distance •HD AHD video output, no delay, lossless, long distance transmission •Progressive scan CMOS, capture moving object perfectly •Reach 500 meters coaxial cable real-time transmission •Support low illumination ,auto color to black •Support ICR switch, realize day& night monitor |
||
| Image Sensor | 1/4" color CMOS | ||
| Resolution | 1280x720P | ||
| Image System | PAL/NTSC | ||
| Minimum Illomination | 0lux(LED ON) | ||
| Lens | Vari-focal 2.8~12mm | ||
| IR distance | 40m | ||
| Video Output | BNC×1 | ||
| Frame rate | 30fps(60Hz),25fps(50Hz) | ||
| D&N | Support ICR | ||
| SNR | >52dB(AGC off) | ||
| Electronic shutter | 1/60s~1/67500s | ||
| Auto-gain | Support | ||
| White Balance | Auto | ||
| Power | DC12V(±10%) | ||
| Operation Environment | -20℃~ 55℃,10% ~ 90%(humidity) | ||
| Weight | 1 | ||
| Dimension | 265x127x80mm | ||
| |||

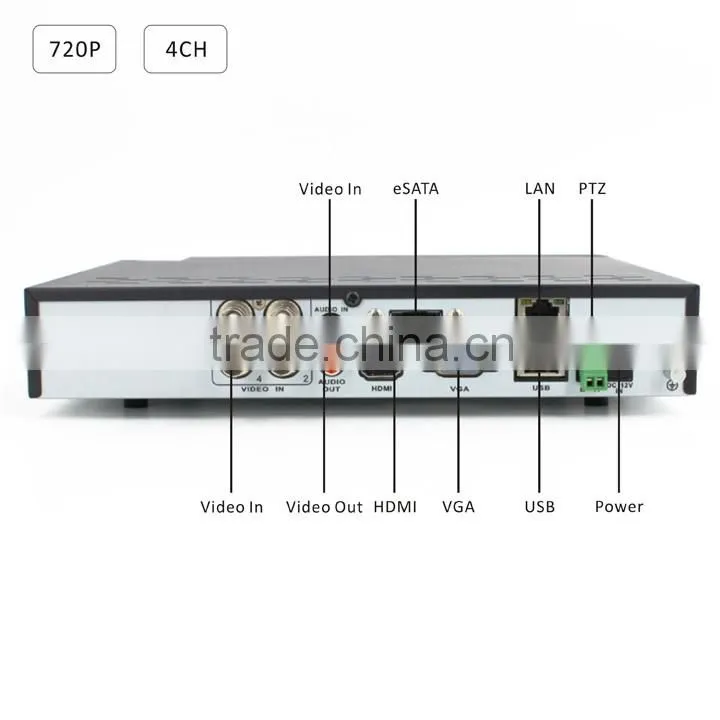

| Model no.: GZ-HVR-7704 Main CHIP: GM 8283 | |||
| Picture | Key Features | ||
| |
•H.264 high profile compression; |
||
| Specification: | |||
| Model | GZ-HVR-7704 | ||
| System | GUI | 16-bit True Color | |
| Operating System | Embedded Linux OS | ||
| Password security | Multi-level users management, 1 Admin + 19 Users | ||
| A/V Input | Video Input | AHD camera x 4 | |
| Audio Input | 1 ch RCA | ||
| A/V Output | VGA output | 1024*768,1280*720,1280*1024,1920*1080(1080P) | |
| HDMI output | 1024*768,1280*720,1280*1024,1920*1080(1080P) | ||
| Spot output | NO | ||
| Loop output | NO | ||
| Audio output | 1CH RCA (Linear, 1kΩ) | ||
| A/V encoding parameters | Video compression | H.264 High Profile | |
| Video standard | PAL/NTSC | ||
| Stream type | Video& Audio/Video | ||
| Video frame rate | Pal:1-25FPS, NTSC:1-30FPS | ||
| Maximum frame rate | Pal:100FPS, NTSC:120FPS | ||
| Video bit rate | 768kbps-3072kbps | ||
| Dual Stream Resolution (Pixel) | Main Stream (Recording) : AHD:1280x720 ,960H: 960x576(480) | ||
| Sub Stream (Network):1/4 Main Stream | |||
| Record mode | Manual,Schedule,Motion | ||
| Video search | Date/time, Event | ||
| Display | 1/4 windows optional | ||
| Audio compression | 8K*16bit ADPCM | ||
| Audio bit rate | 32Kbps | ||
| Recording & playback performance | 4CH 720P AHD 120fps recording, 1 CH 30 frames playback | ||
| HDD | SATA Devices | 1 x SATA HDD | |
| Maximum capacity | 4TB | ||
| External HDD | 1 x Esata, e-sata as storage function. | ||
| External Interface | USB Connector | 2 x USB2.0 | |
| Serial Interface | 1RS-485 serial port | ||
| 2 way audio (voice talk) | NO | ||
| Alarm input/output | Optional | ||
| Network Interface | RJ 45,10M/100 M Ethernet | ||
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | ||
| System Upgrade | Supports USB update | ||
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | ||
| General | Power Supply | Input 100~240V, Output 12V 2A | |
| Consumption | <6W without HDD | ||
| Working temperature | -10℃~+55℃(14°F~131°F) | ||
| Working humidity | 10%~90% | ||
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 1.6kg | ||
What's included

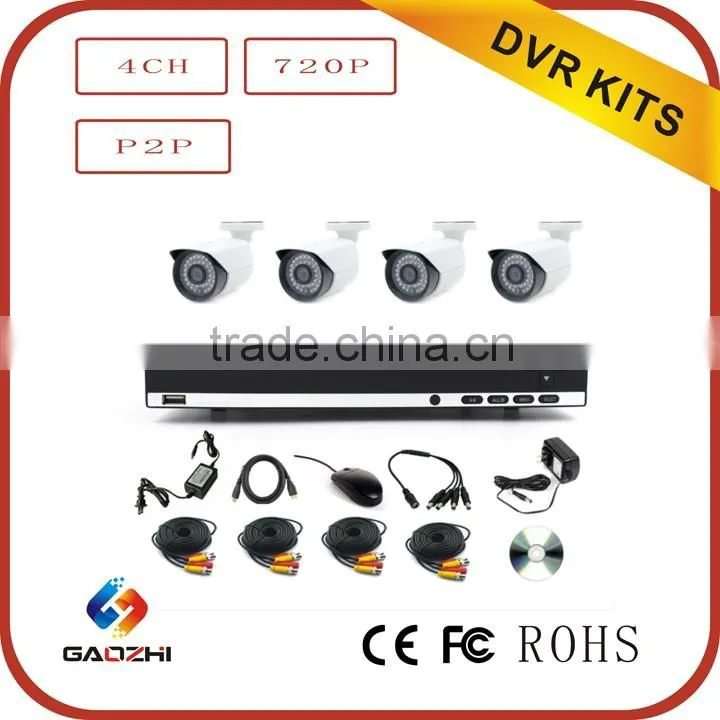

| BOM For 4CH 720P AHD kit | ||||||
| NO. | Items | Specifications | Quantity | 1.Economy kit | 2. Standard kit | 3.Super kit |
| 1 | DVR (Model:GZ-HVR-7704) | 1 | √ | √ | √ | |
| 2 | Original color box of DVR | with foam | 1 | √ | √ | √ |
| 3 | Adapter of DVR | 12V-2A | 1 | √ | √ | √ |
| 4 | Dryer bags | 1 | √ | √ | √ | |
| 5 | Software CD | 3.5" | 1 | √ | √ | √ |
| 6 | Remote Control | 1 | √ | √ | √ | |
| 7 | USB Mouse(Red light) | USB Mouse with red light | 1 | √ | √ | √ |
| 8 | E-sata | 1 | √ | √ | √ | |
| 9 | Ethernet Cable | 3.5ft / 1m | 1 | √ | √ | √ |
| 10 | HDMI cable | 6.5ft / 2m | 1 | √ | √ | √ |
| 11 | BNC Video and power cable | 18m | 4 | √ | √ | |
| 12 | Hard Disk | 500G | 1 | √ | ||
| 13 |
720p AHD camera (Model:GZ-AHD-E1010-PB3132) |
2431HH+OV9732 | 4 | √ | √ | √ |
| 14 | 1 to 4 Power cable | 0.4m | 1 | √ | √ | |
| 15 | Power | 12V-2A | 1 | √ | √ | |
| 16 | Original color box of Camera | 1 package with 4 cameras | 4 | √ | √ | √ |
| 17 | Outer box | 1 | √ | √ | √ | |
| 18 | Screw installation package | 4 | √ | √ | √ | |
Company Information
FAQ
1.Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition.
