IR Shrinking Tunnel

IR Shrinking Tunnel thumbnail-1
IR Shrinking Tunnel photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
UVIR
Contact Supplier Request Quote Chat Now
Jiangmen UVIR Lamp Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name UVIR
Model Number UVIR
Usage Other, Grain / Berb / Fruit / Agaric
Type Other, Infrared Oven
Power Source Electric
Voltage 380V
Power(W) 15KW~On request
Dimension(L*W*H) L8m x W0.8 x H1.2m
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Energy saving Fast heating
Low investment cost Easy installation

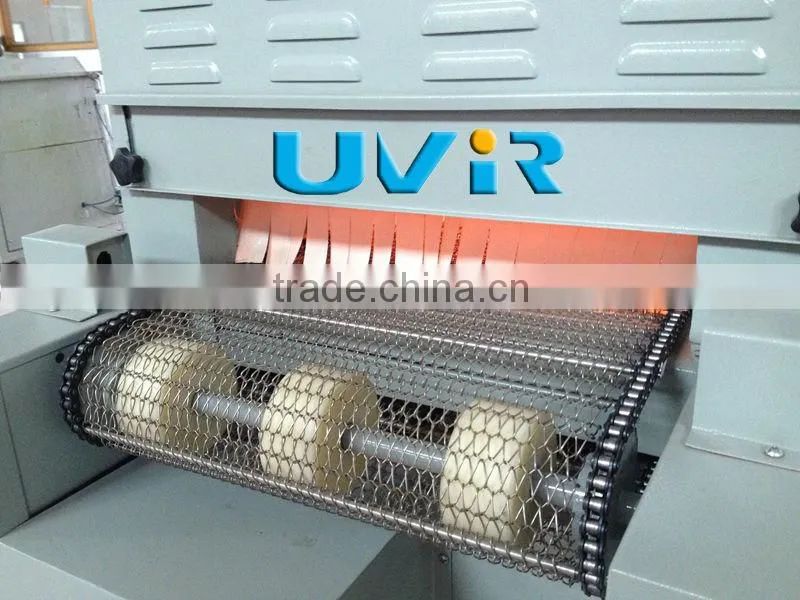

IR shrinking Tunnel

IR shrinking Tunnel

   IR Application Area

IR shrinking Tunnel n Paint drying

 n Pre-heating of PET perform

 n Silicon wafer manufacturing process in semiconductor

 n Drying process in paper mill

 n Plactics thermoforming

 n Fusing printing ink

 n And various kind of drying processes















   IR Benefits and Features

Long life

5000h on average

High Speed

within 1 second to switch on

Hight efficiency

more than 85% heat efficiency of full power

High power density

up to 200w/cm

High controllability

neither ballast nor special circuits are necessary for basic usage

No air draughts

because of radiation(like solar energy)

Clean and adorless

no risk of contamination over environment or target object to be heated

Extensive assortment

many types of voltage,wattage,length,base,cables,niversal burning position is available

Flexible

special lamp designing service on demand is available





   IR Emitter Technical Background

IR Emitter

NIR Infra Short Wave

Single Tube

Short Wave

Twin Tube

Medium Wave

Twin Tube

Fast Response

Medium Wave

Twin Tube

Power

500-4000W

<200w/cm

18  20  25w/cm

80w/cm

Max. Heated Length

Min.50 / Max.1000mm

6400/2400w

1500 2000 6500mm

6400/2390mm

Tube Cross Section

8-14mm

34x14 / 23x11mm

18x8 23x11 34x14mm

34x14 / 23x11mm

Filament Temp.°C

1100-2600

1850-2400

800-950

<1850

Peak Wavelength

1-2um

1.0-1.4um

2.4-2.7um

>1.4um

Reflector

Gold

Gold

Gold

Gold

Max. Power

---

200kw/m2

60kw/m2

150kw/m2

Response Time

1s

1s

1-4min

1-2s





   IR Emitter Spectrum

IR shrinking Tunnel







   IR Machine

 IR shrinking TunnelIR shrinking TunnelIR shrinking Tunnel



  Heraeus Short Wave Twin Tube IR Emitter

80002677 80046737 09751713 09751765 45130750
80009069 80046754 09751751 09751760 45130753
80009073 80046755 09751741 09751731 45132045
80010767 80009069 09751740 09751720 45132827
80042199 80009073 09751761 Heraeus Infrared
