Best Selling 2mp Cctv h 264 4-channel Standalone Oem Dvr
- SHENZHEN
- T/T Credit Card
You May Like
-
New Arrival 1080p 2MP 4ch 4 Channel Ahd Dvr
-
New 2MP Ahd-h User Manual 4 Channel 12v Dvr Recorder
-
Hot Sale Support P2p 4ch 2MP Cctv Full 1080p Dvr Recorder
-
Hot Sale Support P2p 4ch 2MP 24 Hours Video Camera Recorder
-
Hot Sale Support P2p 4ch 2MP h 264 Digital Video Recorder
-
Hot Sale h 264 2MP P2p Cctv Dvr 4 Channel
Product Details
| Place of Origin | Guangdong, China | Brand Name | GAOZHI | |
| Model Number | GZ-HVR-7804 |
Product Description
Best selling 2mp cctv h 264 4-channel standalone oem dvr
| Different DVR/HVR/NVR Optional |
| More DVR/HVR optional, click here to view more |
| More NVR optional , click here to view more |
![]() | ![]() | ![]() |
| 1080p 4CH AHD DVR | 1080P 8CH AHD DVR | 4MP 4CH POE NVR |
![]() | ![]() | ![]() |
| 4MP 8CH POE NVR | 4MP 16CH POE NVR | 4MP 32CH NVR |
* H.264 high profile compression;
* 4CH 1080P AHD input
* 1CH playback.
* Supports dual stream;

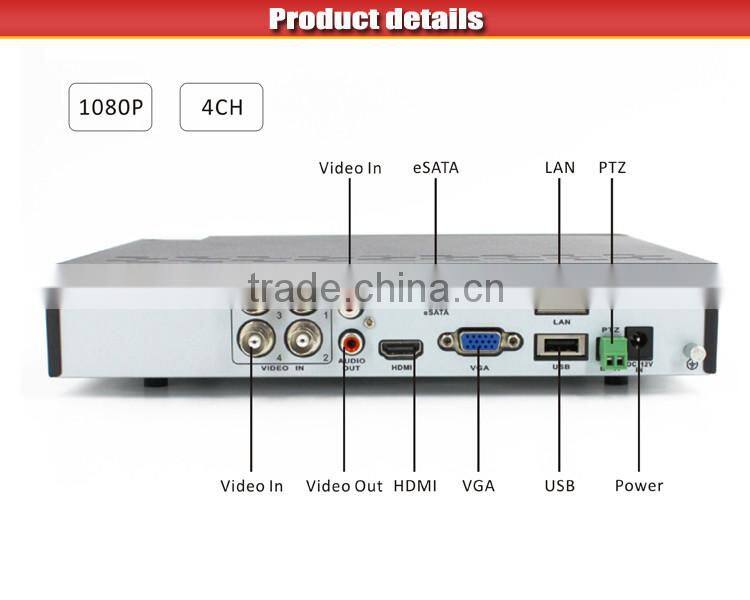

* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 1CH audio input, 1CH audio output;
* 2 USB2.0 ports, 1 SATA3.0 HDD port(up to 4000G);
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS,StreamView APP
* Support P2P
| Specification | ||
| Model No. | GZ-HVR-7804 | |
| Main CHIP | Faraday 8286 | |
| System | ||
| GUI | 16-bit True Color | |
| Operating System | Embedded Linux OS | |
| Password security | Multi-level users management, 1 Admin + 19 Users | |
| A/V Input | ||
| Video Input | AHD camera x 4 | |
| Audio Input | 1 ch RCA | |
| A/V Output | ||
| VGA output | 1024*768,1280*720,1280*1024,1920*1080(1080P) | |
| HDMI output | 1024*768,1280*720,1280*1024,1920*1080(1080P) | |
| Spot output | NO | |
| Loop output | NO | |
| Audio output | 1CH RCA (Linear, 1kΩ) | |
| A/V encoding parameters | ||
| Video compression | H.264 High Profile | |
| Video standard | PAL/NTSC | |
| Stream type | Video& Audio/Video | |
| Video bit rate | 768kbps-3072kbps | |
| Dual Stream Resolution (Pixel) | Main Stream (Recording) : AHD:1920x1080,1280x720 ,960H: 960x576(480) | |
| Sub Stream (Network):1/4 Main Stream | ||
| Record mode | Manual,Schedule,Motion | |
| Video search | Date/time, Event | |
| Display | 1/4 windows optional | |
| Audio compression | 8K*16bit ADPCM | |
| Audio bit rate | 32Kbps | |
| Recording & playback | 1ch 1080p 10 fps recording or 4ch 1080P AHD 40fps recording, 1ch 10fps playback | |
| HDD | ||
| SATA Devices | 1 x SATA HDD | |
| Maximum capacity | 4TB | |
| External HDD | 1 x Esata, e-sata as storage function. | |
| External Interface | ||
| USB Connector | 2 x USB2.0 | |
| Serial Interface | 1RS-485 serial port | |
| 2 way audio (voice talk) | NO | |
| Alarm input/output | Optional | |
| Network Interface | RJ 45,10M/100 M Ethernet | |
| Network | ||
| Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | |
| System Upgrade | Supports USB update | |
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | |
| General | ||
| Power Supply | Input 100~240V, Output 12V 2A | |
| Consumption | <6W without HDD | |
| Working temperature | -10℃~+55℃(14°F~131°F) | |
| Working humidity | 10%~90% | |
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | |
| Weight ( w/o HDD/DVD±RW ) | 1.6kg | |
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2years free repair Warranty. For the confirmed defective products , will send free replacement in the
next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control

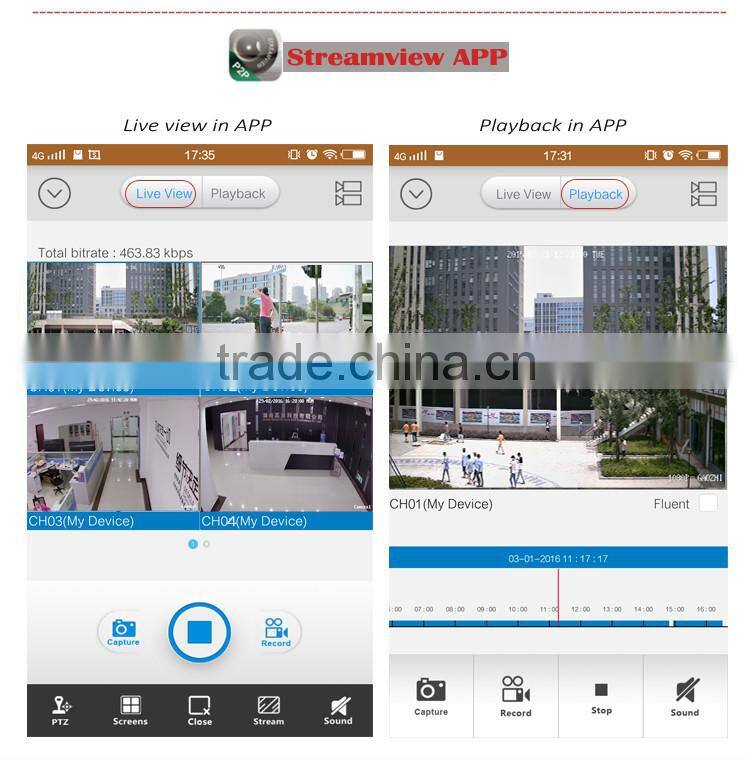

Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
