Top sale 4CH 720P P2P instruction cctv ip camera dvr
| Different DVR/HVR/NVR Optional |
| More DVR/HVR optional, click here to view more |
| More NVR optional , click here to view more |
|
|
|
| 1080p 4CH AHD DVR | 1080P 8CH AHD DVR | 4MP 4CH POE NVR |
|
|
|
| 4MP 8CH POE NVR | 4MP 16CH POE NVR | 4MP 32CH NVR |
* Main Chip : GM8283
* H.264 high profile compression;
* With P2P function;
* 4CH 720p AHD input
* 1CH playback.
* Supports dual stream;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 1CH audio input, 1CH audio output;
* 2 USB2.0 ports, 1 SATA 3.0 HDD port(up to 4000G);
* Supports IR remote control;
* 1 RS-485 port;
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS, StreamView APP management software
| Specification | |
| Model | GZ-HVR-7704 |
| Main CHIP | GM 8283 |
| System | |
| GUI | 16-bit True Color |
| Operating System | Embedded Linux OS |
| Password security | Multi-level users management, 1 Admin + 19 Users |
| A/V Input | |
| Video Input | AHD camera x 4 |
| Audio Input | 1RCA |
| A/V Output | |
| VGA output | 1024*768,1280*720,1280*1024,1920*1080(1080p) |
| HDMI output | 1024*768,1280*720,1280*1024, 1920*1080(1080p) |
| A/V encoding parameters | |
| Video compression | H.264 High Profile |
| Video standard | PAL/NTSC |
| Stream type | Video& Audio/Video |
| Video frame rate | Pal:1-25FPS, NTSC:1-30FPS |
| Maximum frame rate | PAL100FPS, NTSC 120FPS |
| Video bit rate | 768kbps-3072kbps |
| Dual Stream Resolution (Pixel) | Main Stream (Recording) : AHD:1280*720,960H:960*576(480) |
| Sub Stream (Network):1/4 Main Stream | |
| Record mode | Manual,Schedule,Motion |
| Video search | Date/time, Event |
| Display | 1/4 windows optional |
| Audio compression | 8K*16bit ADPCM |
| Audio bit rate | 32Kbps |
| Recording resolution | 4CH 720P AHD 120fps recording, 1 CH 30 frames playback |
| HDD | |
| SATA Devices | 1 x SATA HDD |
| Maximum capacity | 4TB |
| External HDD | 1 x Esata |
| External Interface | |
| USB Connector | 2 x USB2.0 |
| Serial Interface | 1RS-485 serial port |
| Alarm input/output | Optional |
| Network Interface | RJ 45,10M/100 M Ethernet |
| Network | |
| Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad |
| System Upgrade | Supports USB update |
| Remote Software | StreamView APP Software, IE Browser,Google Chrome Browser,Firefox Browser |
| General | |
| Power Supply | Input 100~240V, Output 12V 2A |
| Consumption | <6W without HDD |
| Working temperature | -10℃~+55℃(14°F~131°F) |
| Working humidity | 10%~90% |
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) |
| Weight | 1.6kg ( without HDD/DVD±RW ) |
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2years free repair Warranty. For the confirmed defective products , will send free replacement in the
next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .

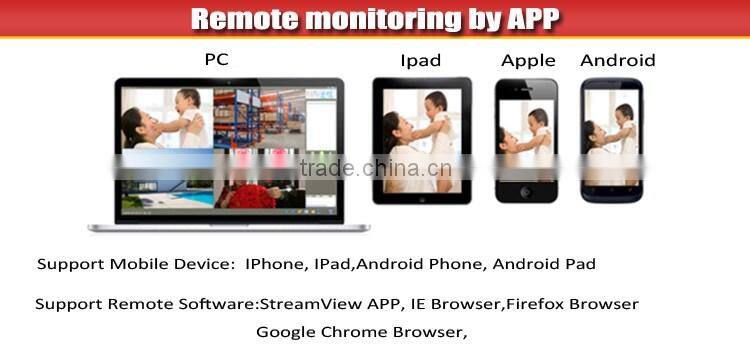

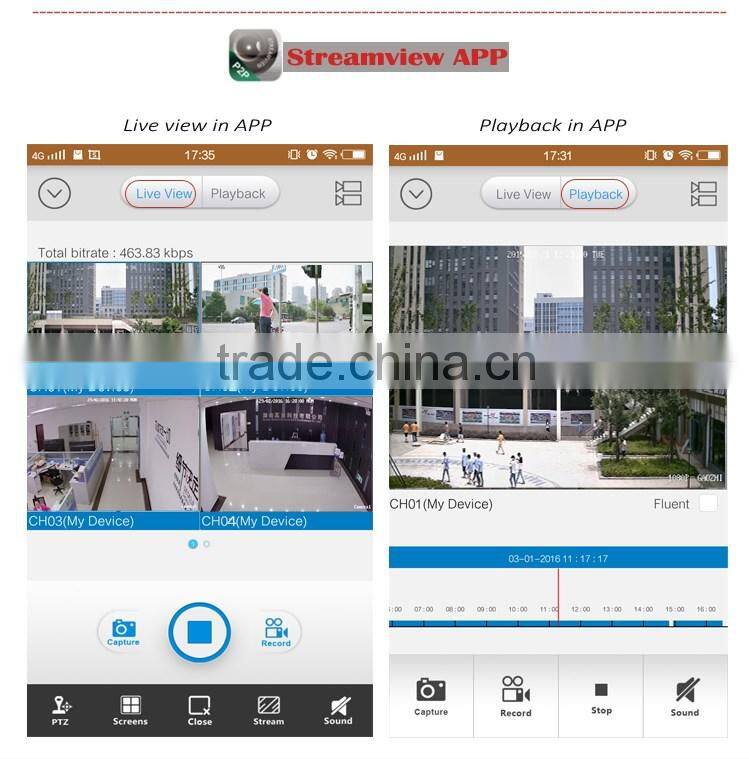

4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
