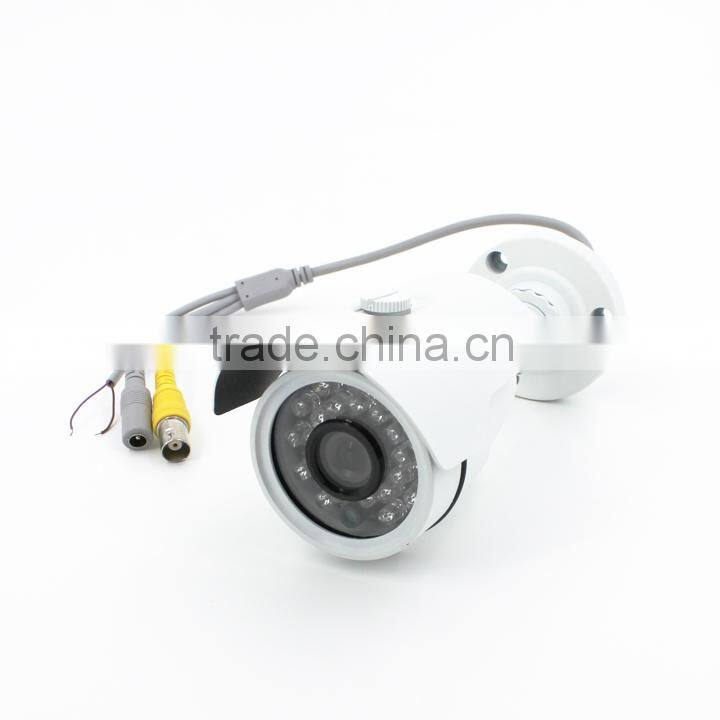

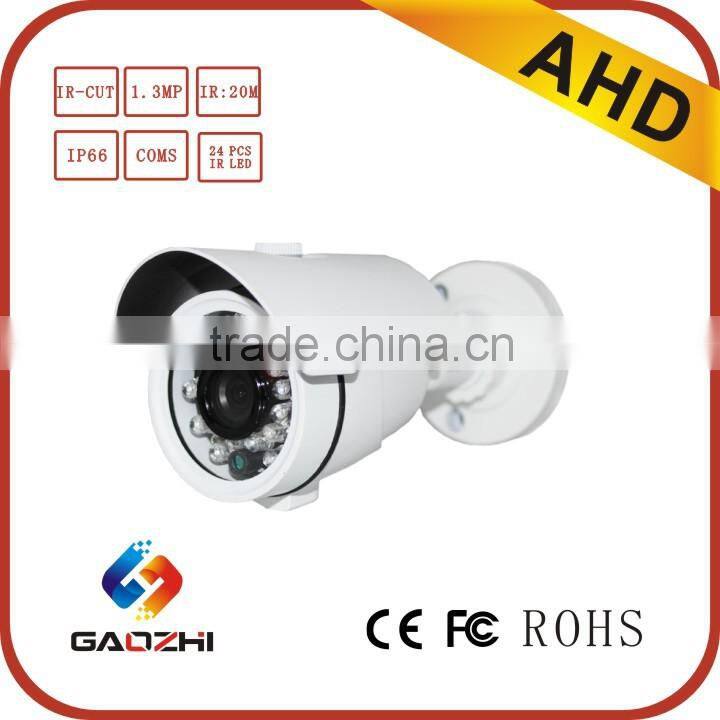

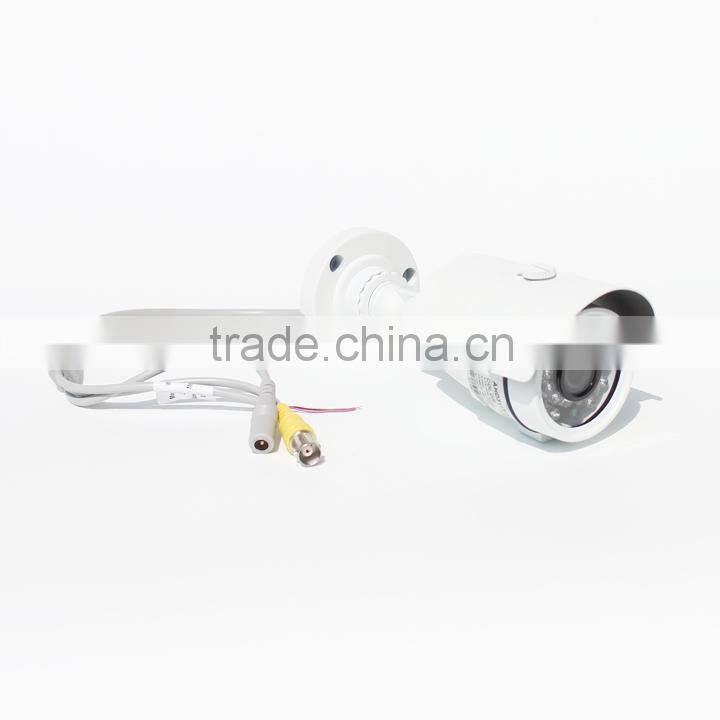

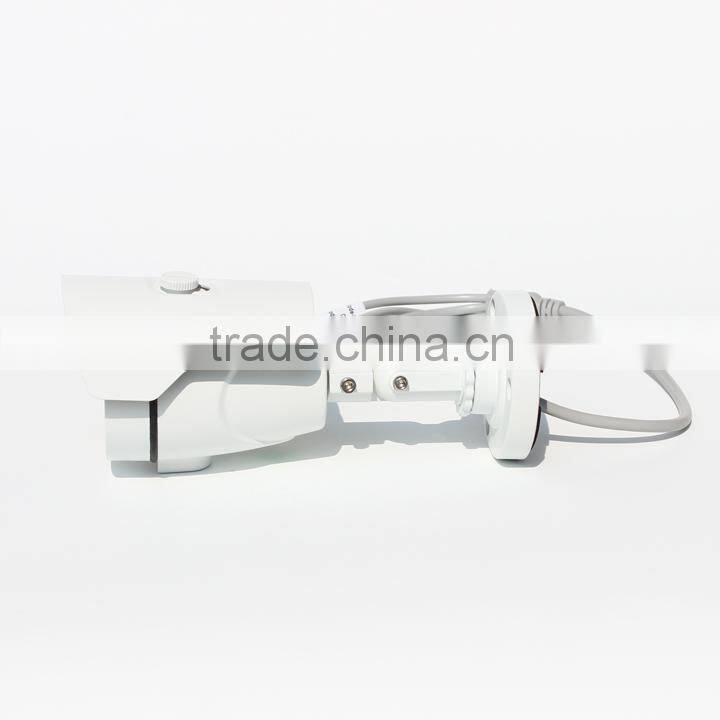

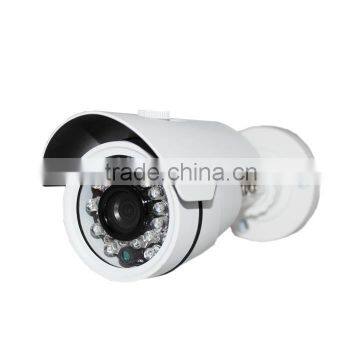

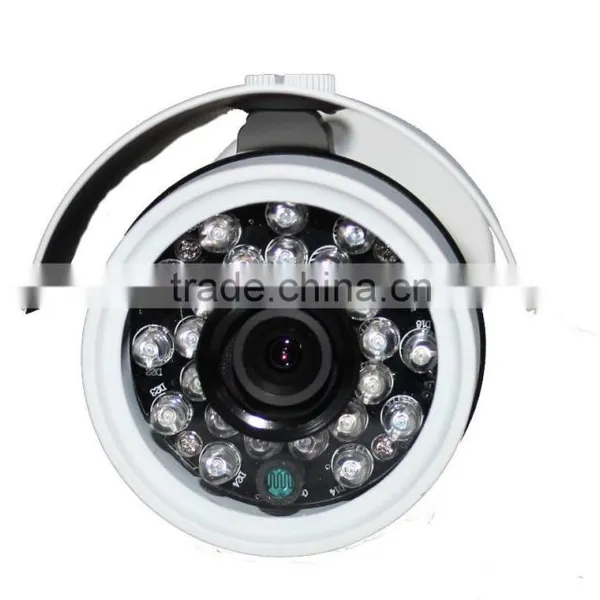

Help Center1.3MP With IR CUT Water Proof 66 AHD CCTV Camera
Related Products
-
1.3MP With IR- CUT Water Proof IP 66 AHD CCTV Box CameraUS$ 25 - 40MOQ: 50 Pieces -
1.3Mega Pixel With IR CUT Bullet AHD CCTV CameraUS$ 20 - 30MOQ: 50 Pieces
-
960P Low Illumination CMOS Sensor With IR CUT AHD CCTV CameraUS$ 20 - 30MOQ: 100 Pieces
-
1.3 Megapixel IR-CUT Motion-Detection IP 66 Box AHD CCTV CameraUS$ 30 - 40MOQ: 100 Pieces
-
1.3 Megapixel IR CUT COMS Low Illumination Outdoor AHD CCTV Bullet CameraUS$ 25 - 40MOQ: 100 Pieces
GZ-AHD3130-B310X-P
Feature:
*Sensor:1/3" Aptina super low illumination CMOS sensor
*1.3MP 960P, with IR CUT;
*Chipset:AR0130+NVP2431;
*24pcs IR LED;
*3.6mm fixed lens;
*IR range:20m;
*With 3 Axis bracket;
*Waterproof IP66;
*Size:148(L)*70W)*70(H)/mm;
*G.W:0.4KG;
*40pcs/CTN 432*350*482/mm.
| Specification | |
| Model | GZ-AHD3130-B311Y-P |
| Sensor | 1/3" 1.3Megapixel CMOS |
| Electronic Shutter | 1/25s~1/45,000s |
| Synchronization | Internal |
| Signal Mode | PAL/NTSC |
| Effective Pixel | 1280H*960V |
| Noise Reduction | 2D/3D |
| Min. Illumination | 0.01LUX F1.2(AGC ON),0Lux IR on |
| Lens | 3.6mm Fixed |
| Video Standard | Comply with HD-AHD |
| Video Frame Rate | 1280×960/25 fps;1280×960/30 fps |
| Video Output | 1-channel BNC HD-AHD video output |
| Day/Night | Auto(ICR)/Color/Black |
| Max. Transfer distance | Normal 75-3 coaxial cable up to 500m |
| Working Temperature | -20℃~+50℃,Less than 95%RH (No condensation) |
| Power | DC12V±10 % |
Hunan Gaozhi Science and Technology Co. Limited is a High technology company with the registered capital of 4 million USD, Offer satisfactory ODM,OEM service in Security & Surveillance Field.
1.R&D Team
About 50 R&D engineers, most are from Huawei and Key members specialized for 11years . Also more than 10% of annual profits was invested .New products come out continuously with New feature& good performance.
2.Main products
AHD Camera / recorder include 720P,960P,1080P
Used in engineering projects due to low cost .
Hybrid DVR support analog/ahd/ipc 3 input,
No need change cable when upgrade the video resolution.
IP camera / NVR ---Include POE and WIFI
Mainly use for Home, office , Small shop for easy installation & High quality of Video picture.
3.Primary Advantage
1.Excellent & Stable quality approved by Famous distributor
2.Big Capital-Supported by Government,
3.Strong R&D team, customized service .
4.2-years quality guarantee
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
