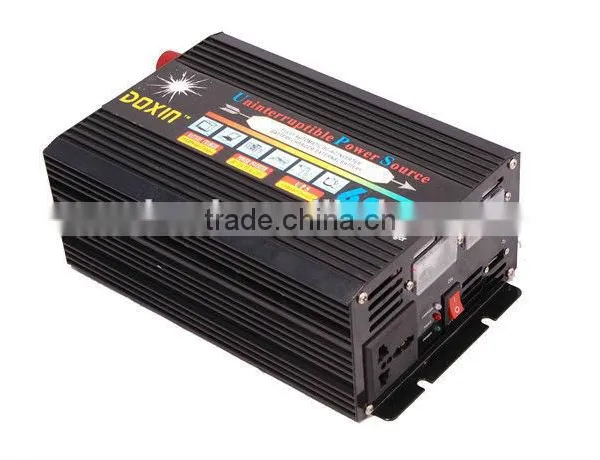

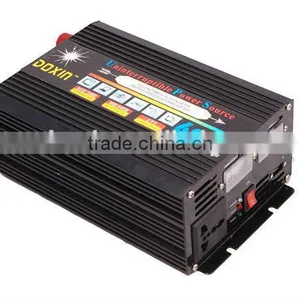

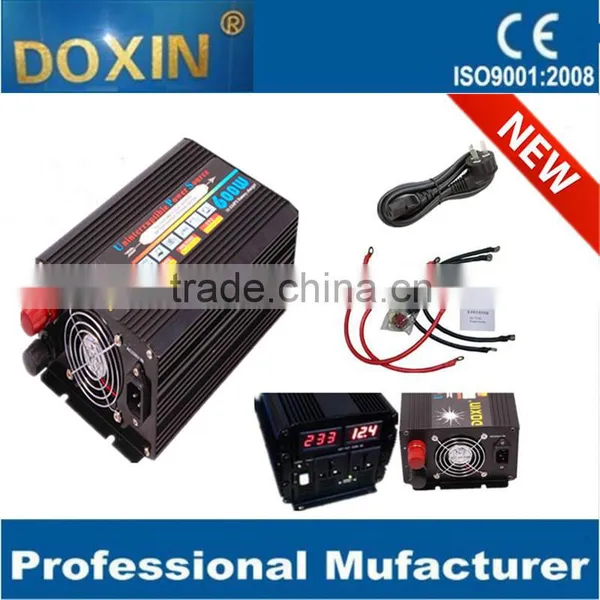

DC/AC Inverters Type and Single Output Type On and Off Grid Solar Inverter with digital screen
1. Feature:
- 1. LED display
- 2. Two sockets
- 3. Two Cooling fans
- 4. Battery connector ( Red + / Black - )
- 5. One charger cable socket

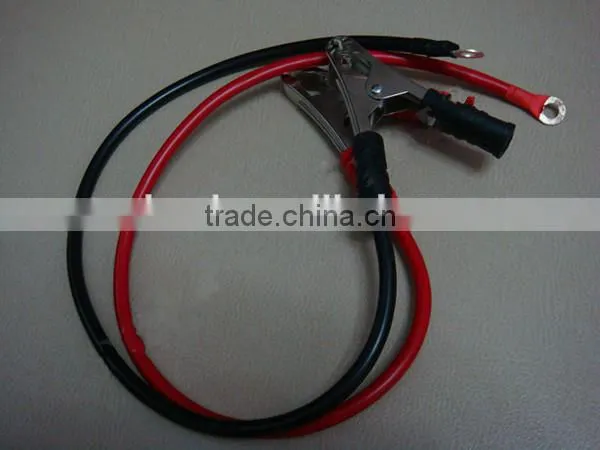

- 6. A Pair of cable wire
- 7. A pair of terminal
- 8. All around safety protection
- 9. 12 Months warranty
- 10. Excellent double-faced circuit board and components

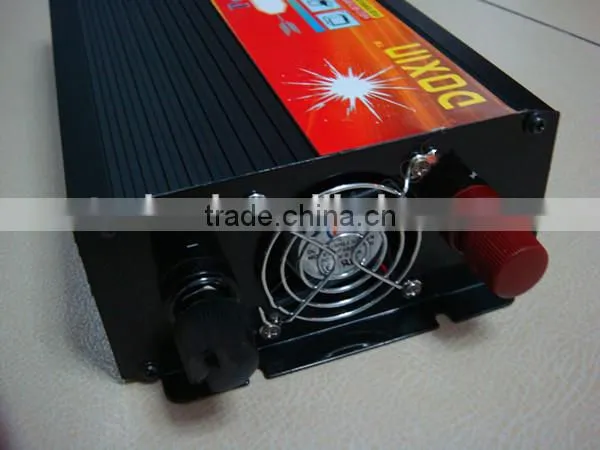

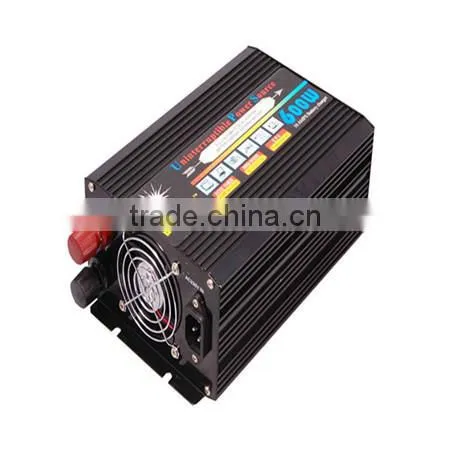

2.Parts Description:
3. Technical Data:
DXP600W |
||
Input |
Voltage |
DC12V |
|
Voltage Range |
11-15V |
|
No load Current Draw |
<3A |
|
Efficiency |
Average 90% max 95% |
|
Connector |
Cables with connector |
Output |
AC Voltage |
AC110/220V |
|
Continuous Power |
500W |
|
Surge Power |
1200W |
|
Waveform |
Modified sine wave |
|
Frequency |
50Hz or 60Hz |
Protection |
Low Voltage Alarm |
YES 10.2-10.8V |
|
Low Voltage Protection |
YES 9.2-9.8V |
|
Over Load Protection |
YES (120%-130% ) |
|
Over Voltage Protection |
YES 15-15V |
|
Thermal Protection |
YES, ( shutdown ) |
|
Short circuit protection |
YES, ( shutdown ) |
Environment |
Working Temperature |
-5° C ~ +40° C |
|
Working Humidity |
10%-90% |
|
Storage Temperature |
-20° C ~ +50° C |
|
Storage Humidity |
5%-95% RH |
Package |
Dimension( L*W*H ) |
215*150*90 (cm) |
|
Net Weight |
1.6Kg |
|
Gross Weight |
2.6Kg |
|
Qty/CTN |
1pc/BOX |
|
Cooling |
Cooling Fan |
|
Total Harmonic Distortion |
THD<3% |
|
Certification |
CE |

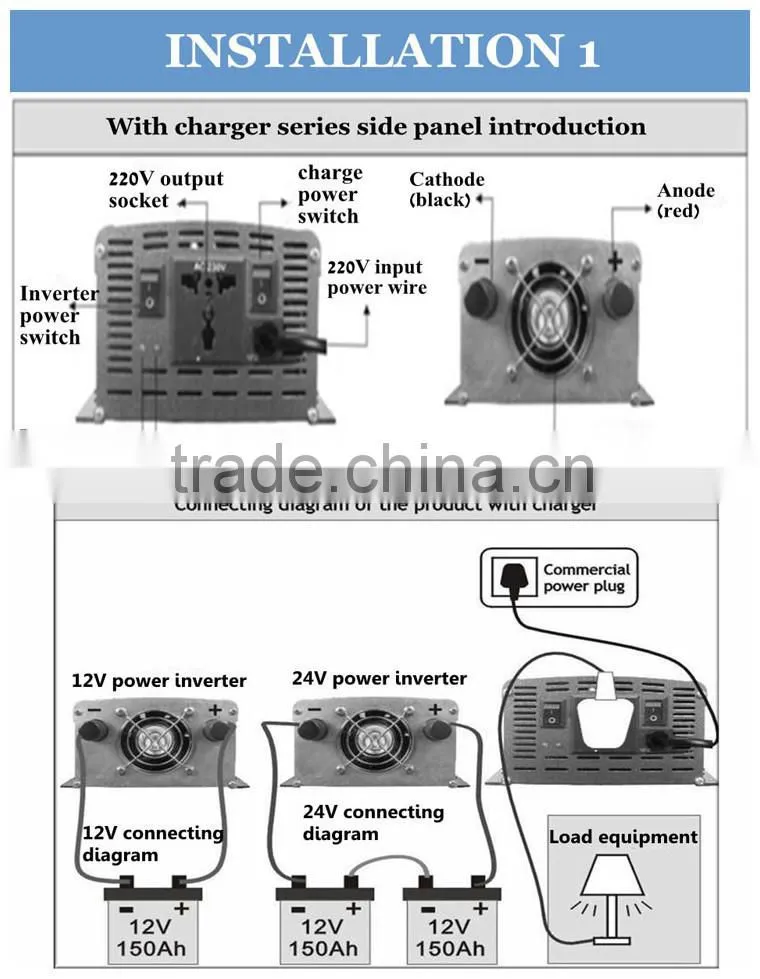

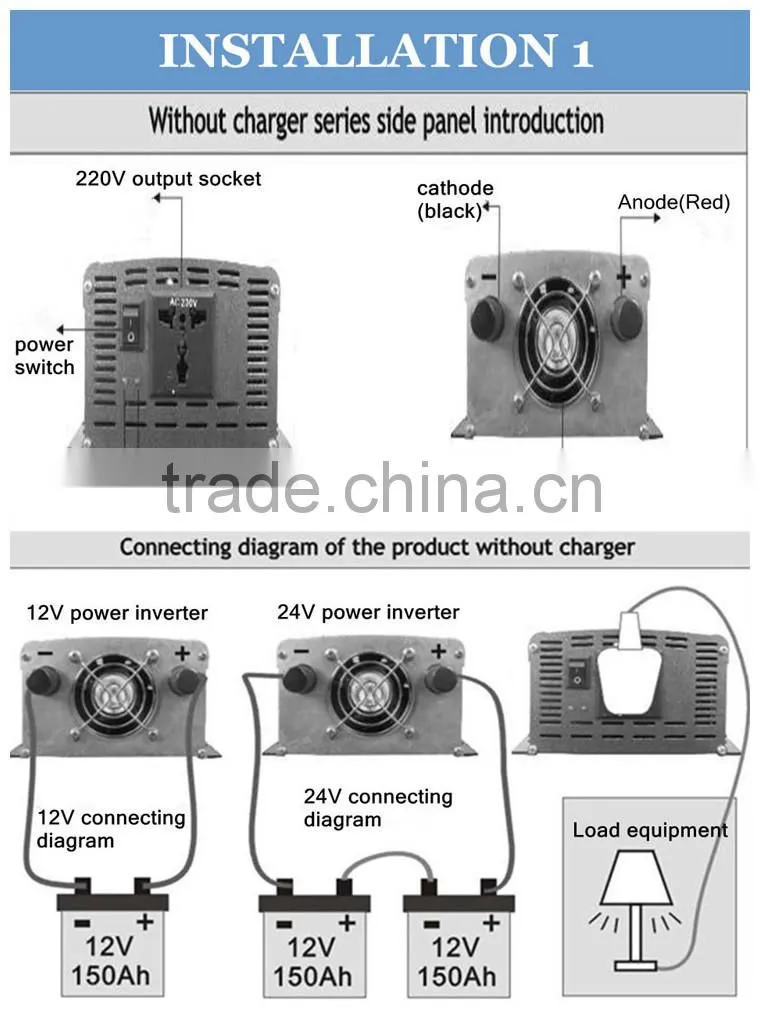

4. Install:

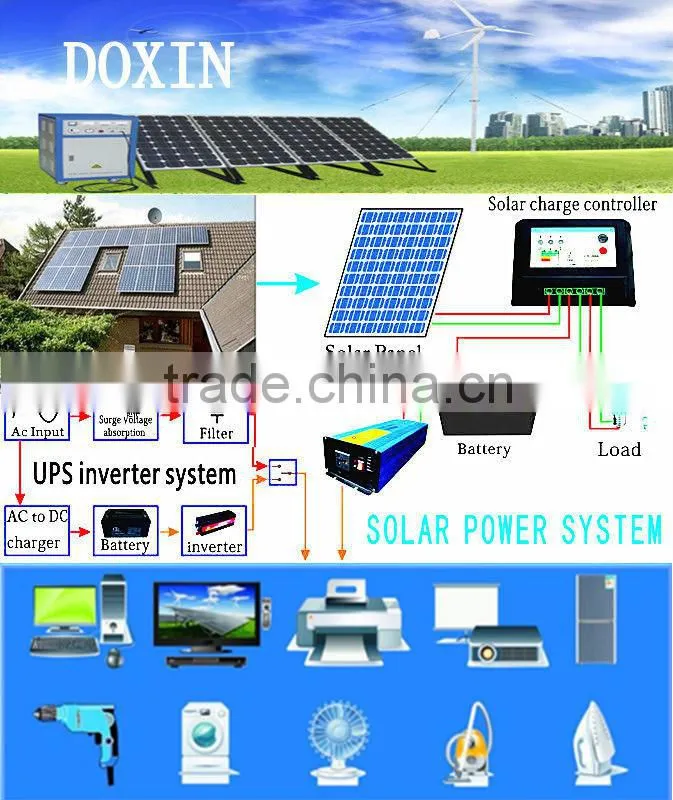

5. Appliance:
1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker, refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6) Power tool series: Electric saw, drilling machine, punching machines, air compressor etc
6. Protection:
High temperature protection
This machine will start temperature protection to stop working in order to protect the safety of power equipment when the internal temperature of the inverter or the surrounding temperature is over high.
Low-voltage protection
The inverter will be automatically off to prevent the storage battery or power supply from being damaged when the storage battery or power supply or power is over low. After the voltage becomes normal, it will work again automatically.
High-voltage protection
The inverter will be automatically off to prevent the storage battery or power supply from being damaged when the storage battery or power supply is over high. After the voltage becomes normal, it will work again automatically.
Overload protection
The inverter will be automatically off when the load connected with is terribly damaged by short-circuit fault. After is short circuit is removed, it will work again automatically.
7. Warranty:
If you can cooperate with us, we will be honored and you will benefit from:
1. The good construction warranty-1 years
2. Your client satisfied on the right schedule and quality
3. Your can get good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The free inverter samples after your first 3 orders
6. The reasonable price
7. Any questions from you are welcome and will be replied in 24 hours
8. FAQ:
1. What is Inverter?
Inverter is an electronic equipment that turn DC12V/ 24V/ 48V into AC110V/ 220V/ 230V/ 240V.
2. How many kinds of output wave form for Inverters?
Pure sine wave Inverter: It could provides high quality AC and carry various loads,While it requires high tech and high cost.
Modified sine wave Inverter: It can load poorly not carrying inductive load, but the price is moderate.
3. How to choose a power inverter?
Mose of the electronic products are signed out their rated power, and the rated power should be less than the rated power of the power inverter.
The method of how to estimate the power(W): The total of load power should be equal to the rated power(W) of the power inverter.
You can choose inverter in this way.

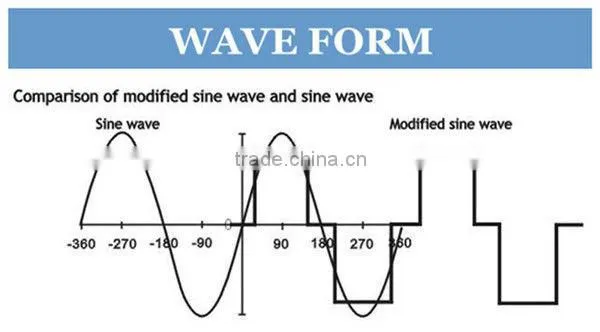

4. What the difference between a pure sine wave inverter and a modified sine wave inverter?
Pure sine wave AC is what comes from the sockets in your house. It is the best form and will run all types of equipment properly. Modified sine wave units are cheaper to produce and will run most appliances but not as efficiently. Devices that run best from pure sine wave are anything with AC motors such as fridges, washing machines, also radios and microwaves. Modified sine wave inverters will run computers, games consoles, TV's, power tools and lighting just fine.
9. Our Factory:
10.Shipping & Payment:
Lead Time
- 1.Sample orders will be delivered from our factory within 7 working days.
- 2.General orders will be delivered from our factory within 7-15 working days.
- 3.Big orders will be delivered from our factory within 15-25 working days at most.
Shipment
- 1.By EMS,DHL,FedEx,TNT,UPS or other express.
- 2.By our forwarding agent(by air or by sea).
- 3.By your own forwarding agent.
- 4.By domestic forwarding agents to any city in China
Payment
- 1. T/T ,Western Union,Money Gram.
- 2. We will arrange the products and shipment within 3-7 working days after receive the payment
