Home > Products > UPS DC - AC Modified Power Inverter > DC AC 1500W LCD Display power Inverter with Battery Charger and UPS
DC AC 1500W LCD Display power Inverter with Battery Charger and UPS
- 10000 Piece / Pieces per Month
- Guangzhou
- Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DOXIN | Model Number: | DXP1500 |
Output Power: | Other, 1500W | Output Type: | Single | Size: | 350*150*90mm |
Weight: | 3KG | Input Voltage: | 12V/24V/48V | Output Voltage: | 110V/220V/230V/240V |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | 15A |
Product Description

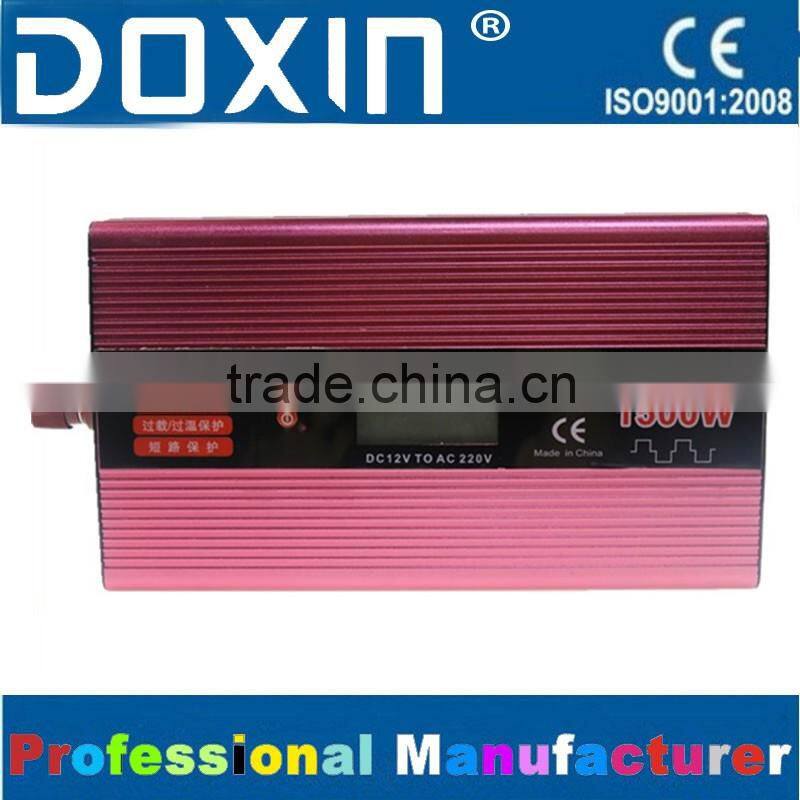

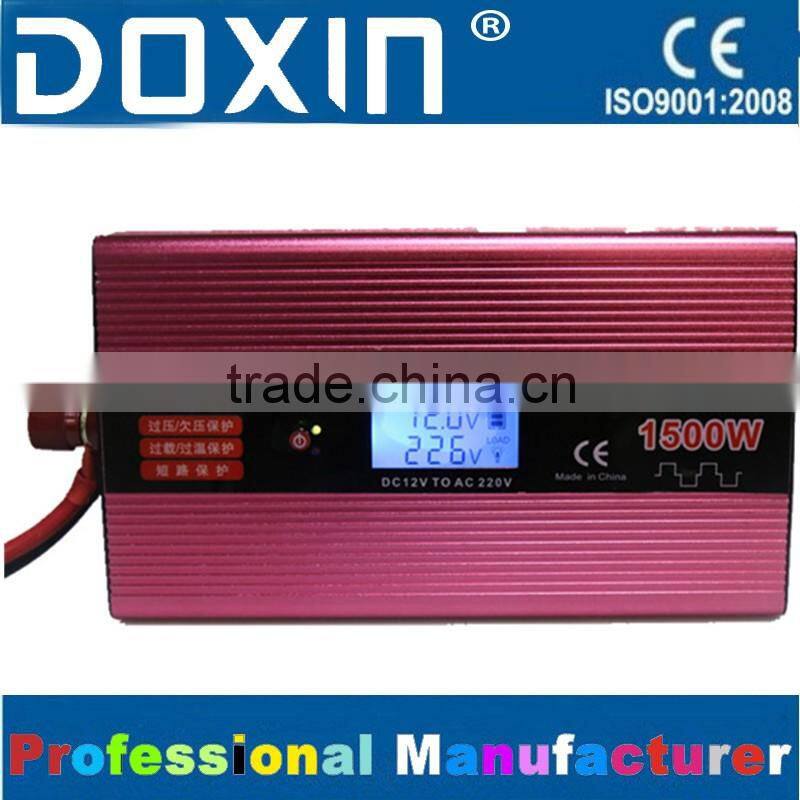

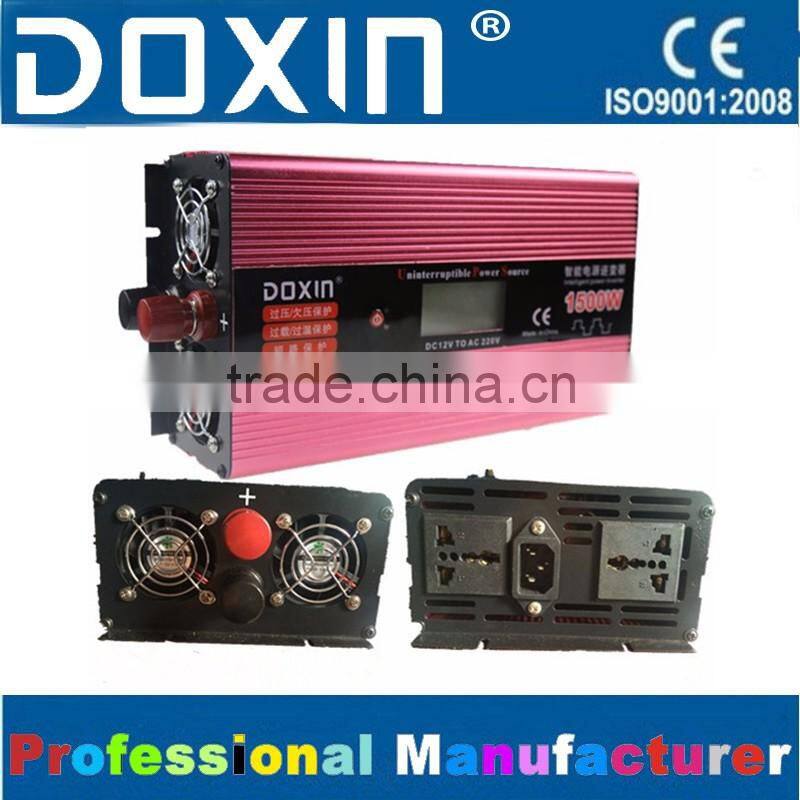

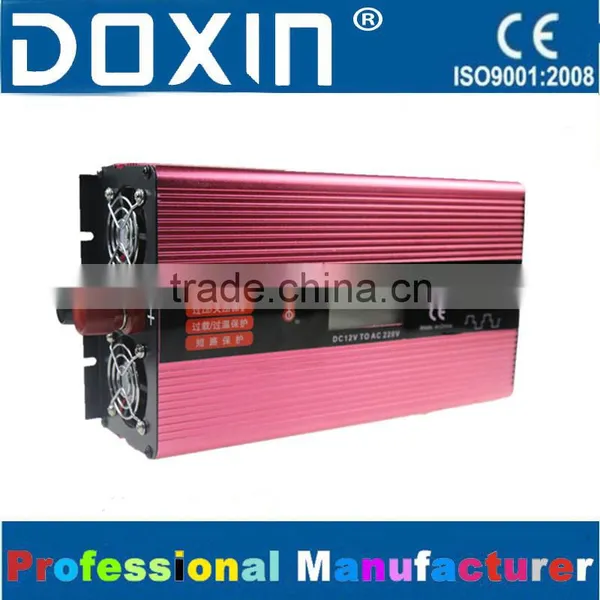

DC AC 1500W LCD Display power Inverter with Battery Charger and UPS
Our Motto is: Quality is our culture
Contact Person: Jason Tel: 13631478337
Skype: doxininverter QQ:2850165594
1. Features:
1) It is featured as high reliability, and low failure rate, with the advanced double CPU SCM intelligent controlling technology.
2) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
3) Low noise but high efficiency while working.
3. Technical parameters
* Max continuous power: | 1500W | |||
* Peak Load Power Rate: | 3000W | |||
* NO load current draw: | <0.4A | |||
* Input DC voltage Range: | DC10V-15V | |||
* Output Voltage Range: | AC220+/-10% | |||
* Output Frequency Range: | 47-55HZ | |||
* Max Outer Temperature: | < 70℃ | |||
* Max Power Efficiency: | > 85% | |||
* High Voltage Cut Off Level: | DC15V±1 | |||
* Low Voltage Alarm Level: | DC10.5±0.3V | |||
* Low Voltage Cut Off Level: | <DC10V±0.3V | |||
* Overload and Short-circuit Protection | yes | |||
* Input Voltage: | DC12V | |||
* Output waveform: | yes | |||
* AC input Voltage: | 220V | |||
* AC Frequency: | 50HZ/60HZ | |||
* AC output voltage range: | 165-260V | |||
* Charger current: | MAX 10A | |||
* DC to AC inverting household electricity supply time: ≤10ms | ||||
* household electricity supply inverting AC to DC time: ≤10ms | ||||
double cooling fan | yes | |||
full capacity,long time operation | yes | |||
* Product Size: | 350*150*90mm | |||
color package size | 34.5*13*22cm | |||
* N.W: | 2.6Kg | |||
* G.W: | 3Kg |
4. All protection function
(1)Over load (2)Over temperature (3)Over voltage(4)Low voltage(5)Reserve connect protection (6)Over current (6)Short circuit (7)Internal built in fuse (8)Buzzer alarm
5. Application
1. Travel Equipment Series: Military vehicle, police cars, ambulances, ships, traffic lights and so on
2. Industrial equipment series: Solar energy, wind power, metal halide lamps, high pressure sodium lamp and so on
3. Office equipment series: Computers, printers, monitors, copiers, scanners, digital cameras, digital cameras and so on
4. Home Equipment Series: Vacuum cleaners, fans, lights, electric cutting knife, sewing machines and so on

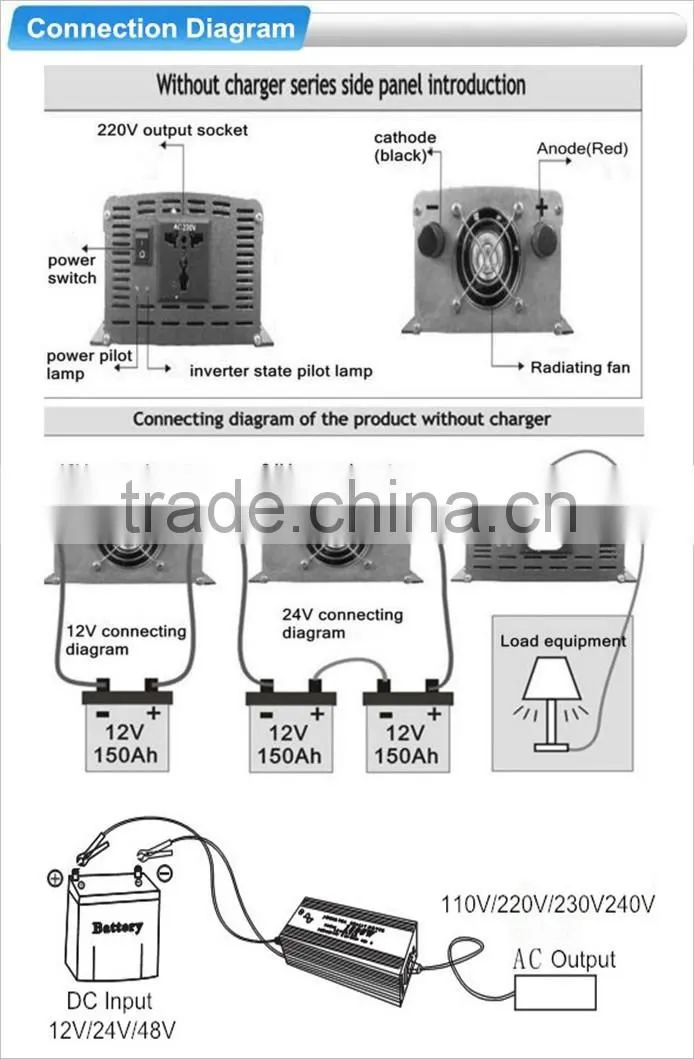

6. Connection diagram

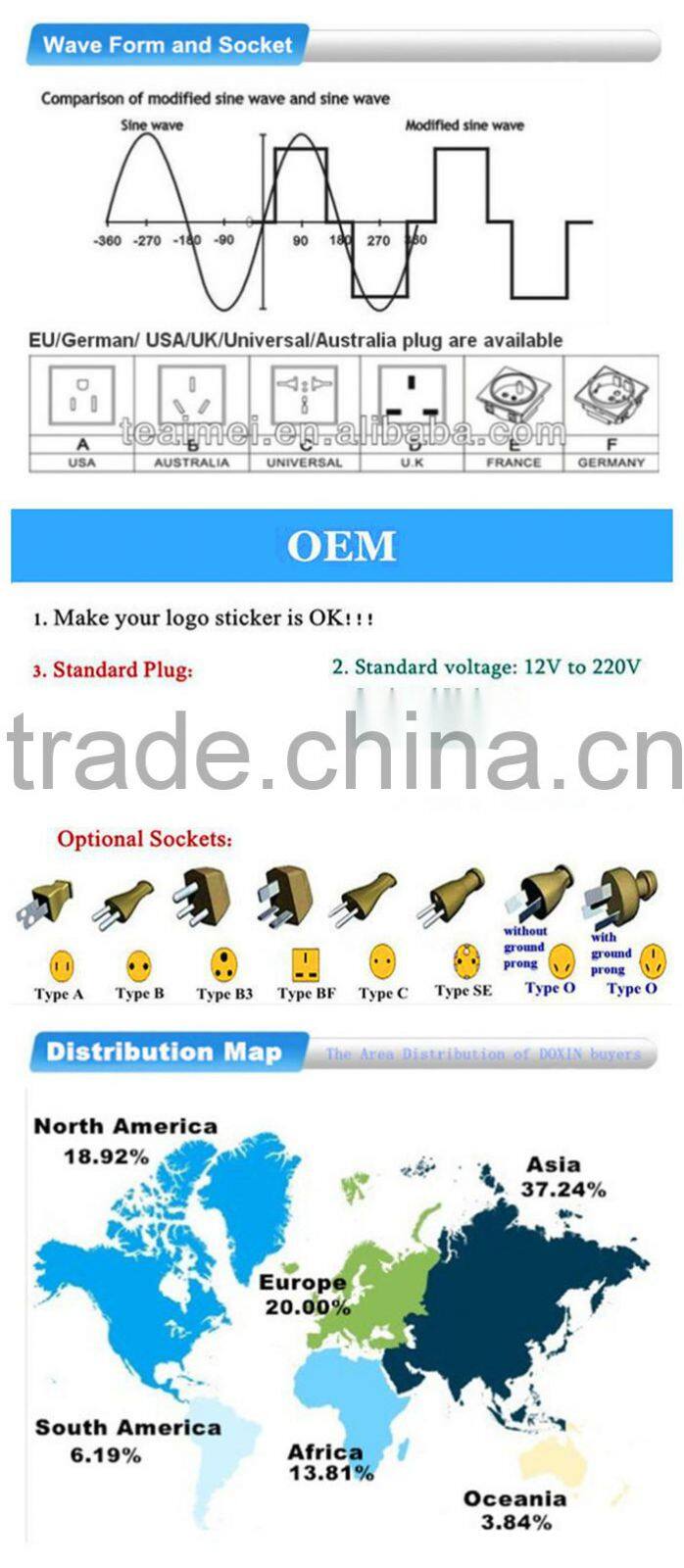

7. Wave form and Socket
8. Attention
Don't use them in the high temperature;keep the battery and charge for them
Don't overload the voltage;Don't use when the low voltage alarm is beginning
10. Customers service
After-sale service
• 1.All products have been checked and packaged in good condition before dispatch.
• 2.Warranty :one years,
• 3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in charge for the freight.No Refunds are offered.
1. What is inverter
Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac
2. How many kinds of output wave form for inverters?
Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
3. How do we equip an appropriate inverter for battery?
Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W. 12V*50A=600W. So we can choose a 600W power inverter according this theoretical value
4. How long can I operate my inverter
The runtime (i.e., amount of time that the inverter will power connected electronics) depends on the amount of battery power available and the load that it is supporting. In general, as you increase the load (e.g., plug in more equipment) your runtime will decrease. However, you can attach more batteries to extend the runtime. There is no limit to the number of batteries that can be connect
5. What's the difference between an inverter and inverter/charger?
An inverter simply converts DC (battery) power into AC power and then passes it along to connected equipment. An inverter/charger does the same thing, except that it is connected to an AC power source to continuously charge the attached batteries when AC utility power is available. In the case of a power outage, the inverter will automatically switch to battery power to provide power to connected equipment.
7. Can I use an extension cord with my inverter?
Yes. While it is recommended that you keep the inverter as close to the batteries as possible, the load can be connected with an extension cord and located up to 200 feet away without signal loss.
