solar power 800watts dc to ac home ups inverter with advanced functions competitive quotation
This is not only a power inverter, it is a 12/24v battery charger and an automatic UPS system.It is very suitable for using it to power many devices such as tv, fridge, light, computer,hifi,and at the same time it is a power back up for somewhere has electricity unsteady problem.It can be used as an UPS system for computer so the computer will never have data lost due to suddenly no power.
Feature
- Modified sine wave
- Input low voltage protection, overload protection, over temperature protection
- reverse polarity
- Soft-start function
- Automatic voltage regulation(AVR)
- Intelligent power management (IPM)
- Intelligent fan control (IFC)
- Input low voltage protection, overload protection,over temperature protection
- We test each item again before shipping!

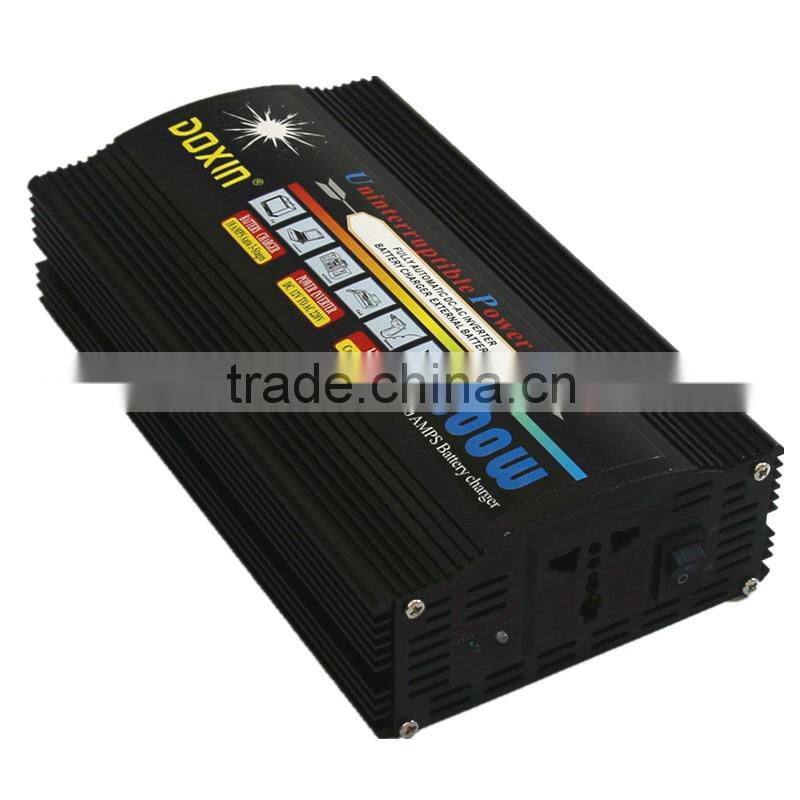

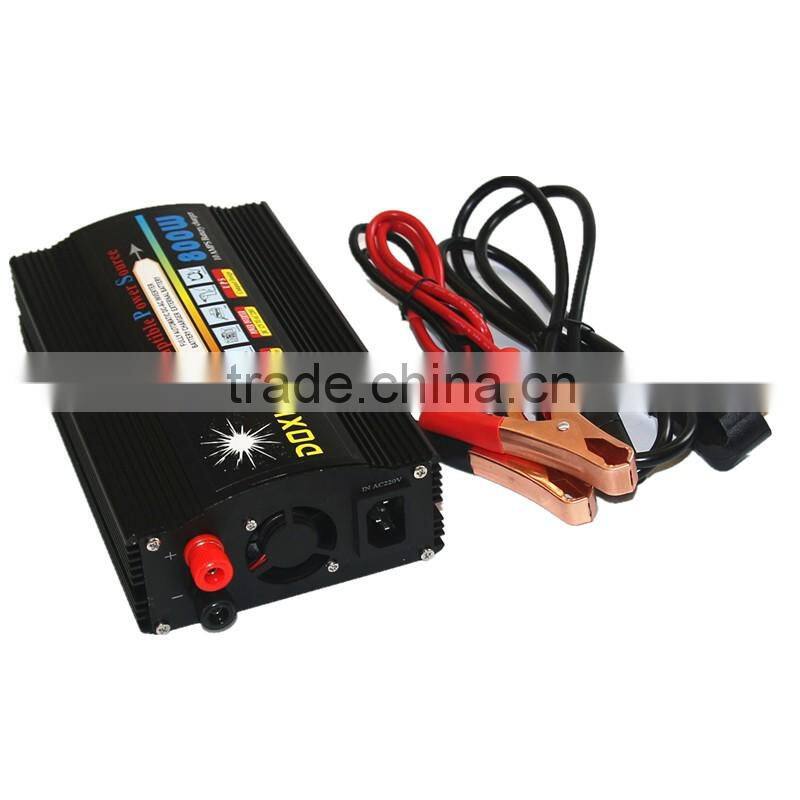

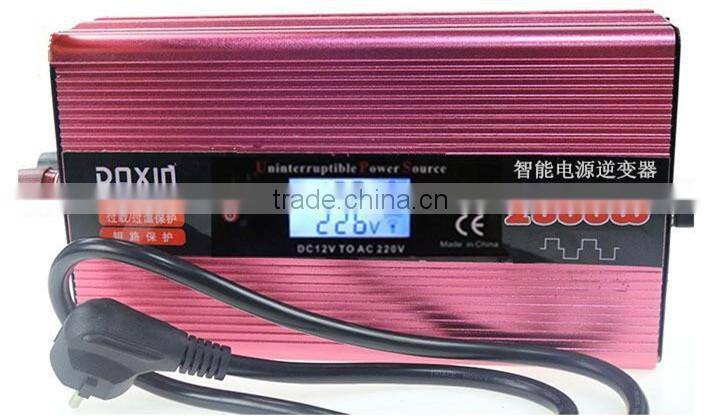

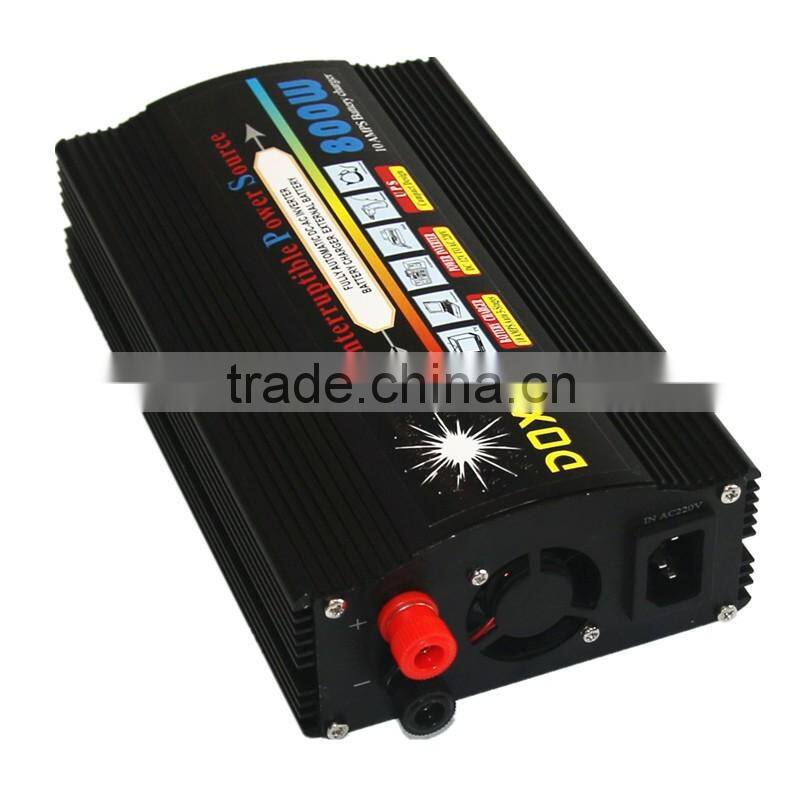

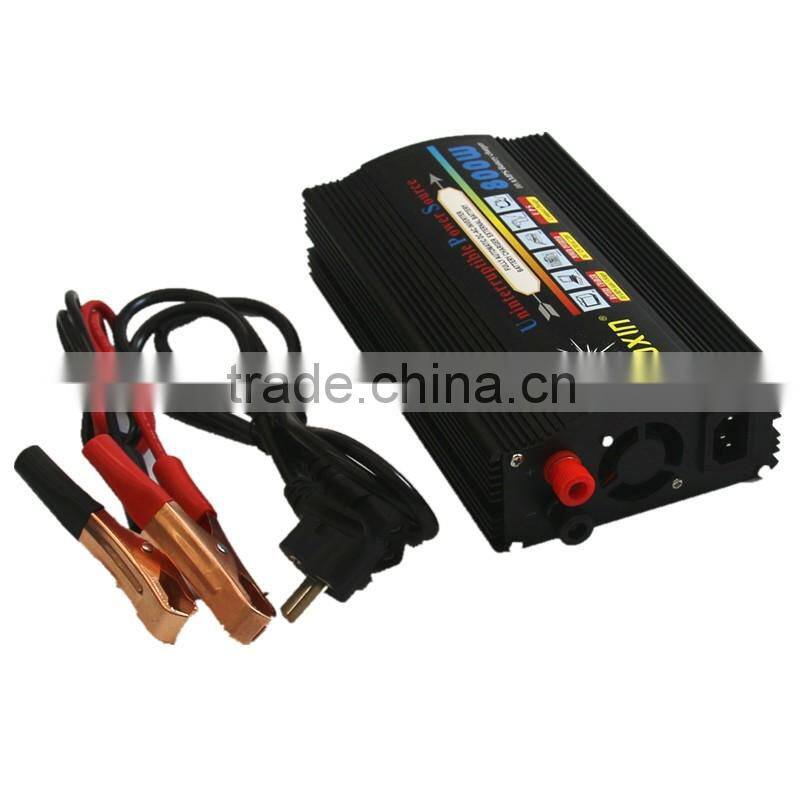

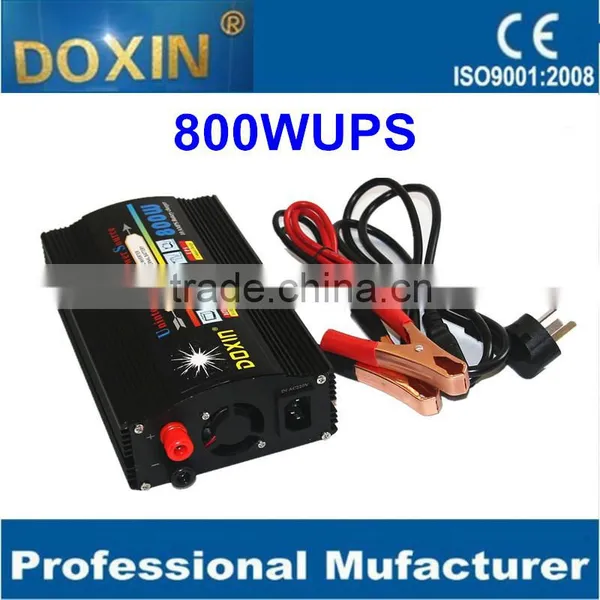

Product Picture

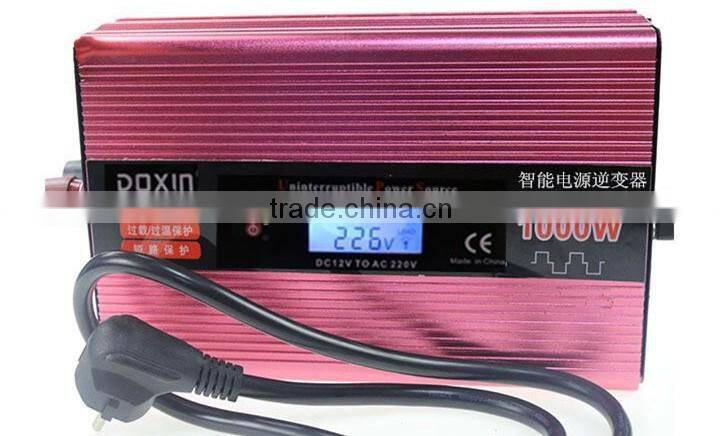

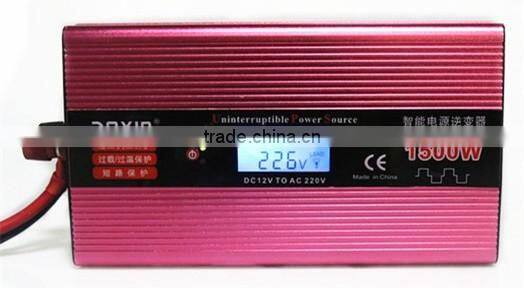

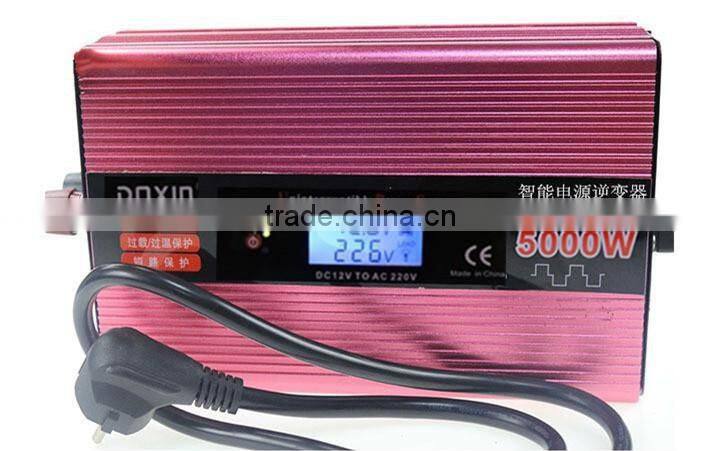

Relative models
Usage
Ideally suitable for Journeys, Camping, Tents, Boat Trip. Working on the way and everywhere, where is no electricity! Simply connect the power inverter with a battery and then connect to electrical appliances.
- Household Appliances: Vacuum Cleaner, Fans, Electronic Shaver etc
- Kitchen Devices: Coffee Maker, Mixer, Ica Machines, Toaster etc
- Electrical Tools: Drill, Grinding Machines, Pruning Shears, Compressors, Pumps
- Equipment: Computer, Printer, Monitors, Fax Devices, Play Consoles, Hi-Fi
- Systems, Music Instruments, Satellite Decoder
Specification
| Model | DX-GAX800W | ||||||||
| Input | DC Voltage | 12V or 24V or Non-standard customization | |||||||
| Voltage Range | 10-15VDC or 20-30VDC | ||||||||
| No Load Current Draw | < 0.3A <0.6A | ||||||||
| Efficiency | 90% | ||||||||
| DC Connector | Cables With Clips or Car Adaptor | ||||||||
| Output | AC Voltage | 100/110/120VAC or 220/230/240 VAC | |||||||
| Continuous Power | 800W | ||||||||
| Surge Power | 1600W | ||||||||
| Waveform | Modified Sine Wave | ||||||||
| Frequency | 50Hz or 60Hz | ||||||||
| AC Regulation | 0.05 | ||||||||
| Protection | Low Voltage Alarm | 10DC±0.5V or 20.5DC±1V | |||||||
| Low Voltage Shut Down | 9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V | ||||||||
| Over Load | Shut Off Output | ||||||||
| Over Voltage Shut Down | 15.5V or 30.5V | ||||||||
| Over Thermal | Shut Off Output Automatically | ||||||||
| Fuses | Short Circuit | ||||||||
| Environment | Working Temperature | Between -10℃ and +50℃ | |||||||
| Working Humidity | 20%~90%RH non-condensing | ||||||||
| Storage Temperature | Between -30℃ and +70℃ | ||||||||
| Others | Start | Soft Start | |||||||
| Cooling Ways | Cooling Fan | ||||||||
| Total Harmonic Distortion | THD < 3% | ||||||||
| digital display | Option | ||||||||
| Pack | Machine Size | 175*130*60mm | |||||||
| Packing Size | 50*47*41cm | ||||||||
| Net Weight | 1.08kg | ||||||||
| Gross Weight | 1.20kg | ||||||||
| Packing Type | Carton Packing | ||||||||
For Inductive Load
If connecting with inductive loads(e.g. Compressor, Pump, old CRT TV, Refridgerator, Ice conditioner, Air conditioner, Relays, Fluorescent lamp, Vacuum cleaner), please choose inverter whose rate power is 3-7 times higher than load's rate power. For example, for a 150w refridgerator, please choose a 1000w inverter or highe, for a 800w air conditioner, please choose 2500w inverter or higher.
For Resistive Load
If connecting with resistive loads(e.g. Computer, LED TV, Fan, Scanner, Fax machine, Duplicator, SOund system, Juice extractor, Heater, Electric cooker, Coffee maker, Microwave, Crok pot), please choose inverter whose continuous power is a little higher than the load's rate power. For example, for loads near 700w, it's better to choose inverter with continuous power more than 800w.

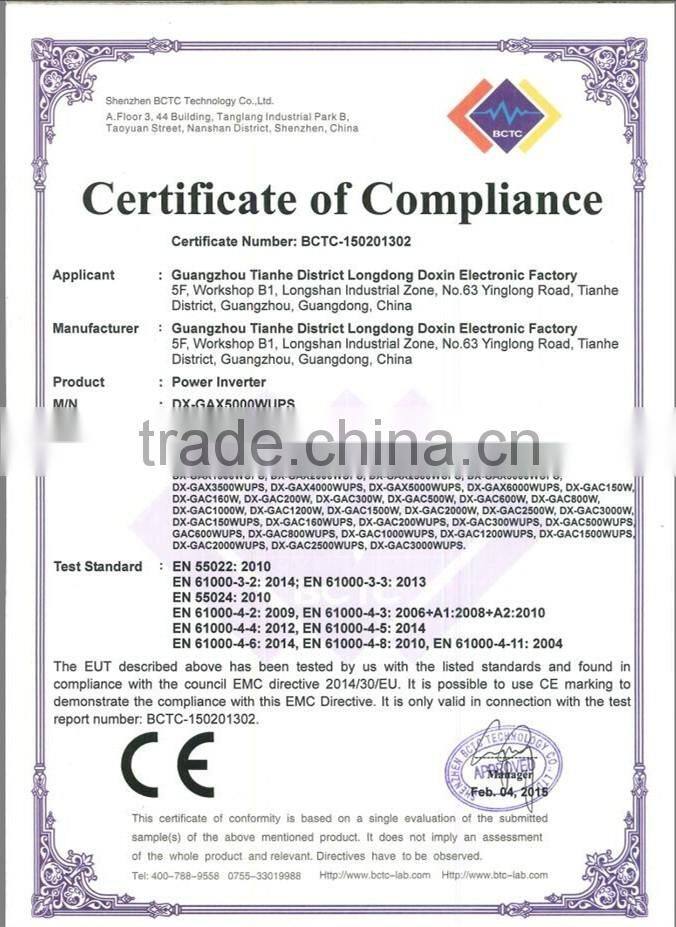

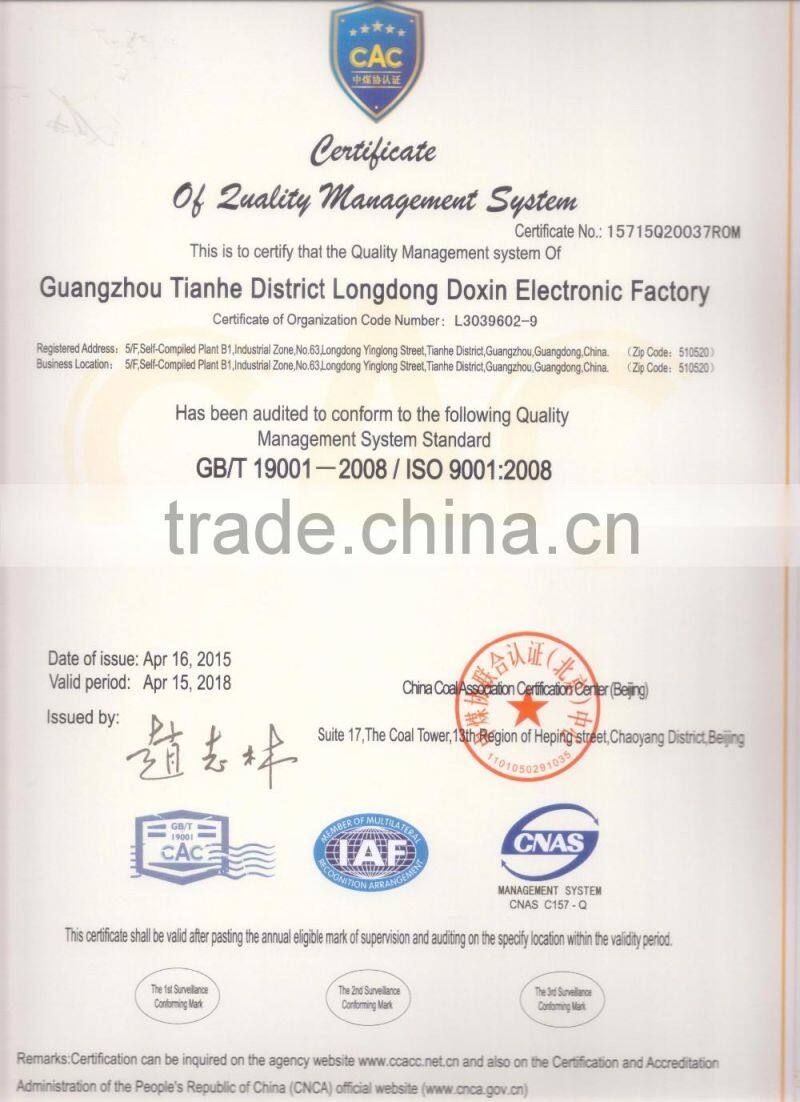

Certification

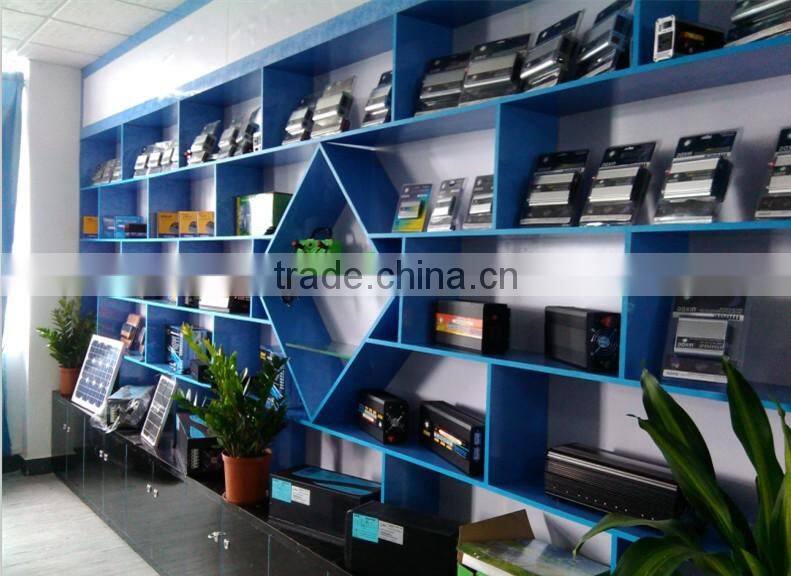

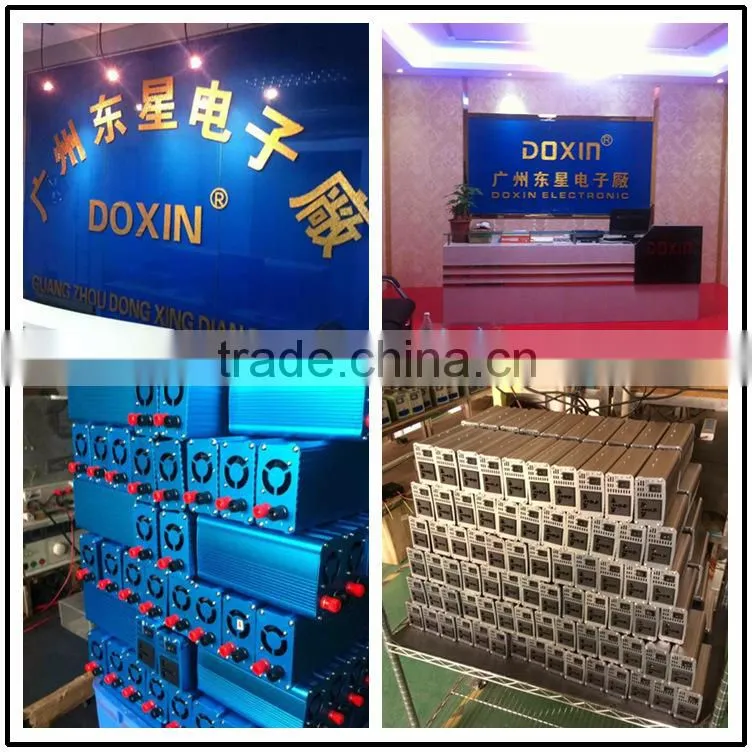

Factory
