12v 300 Amp Power Supply Switching

Name: 12v 300 Amp Power Supply Switching
Brand: DOXIN
Availability: InStock

FOB Price

US$ 27 - 28 / Piece

20 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

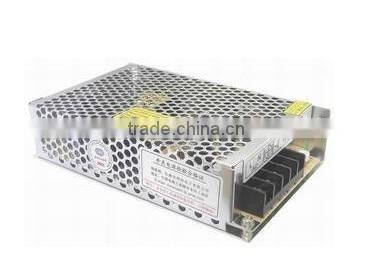

12v 300 amp power supply Switching

1.Specification:

Model Specification	DXS-300-5	DXS-300 -12	DXS-300 -24	DXS-300 -48
DC output	5V 60A	12V 25A	24V 12.5A	48V 6A
Wave and noise	100mVp-p	120mVp-p	120mVp-p	150mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	76%	83%	85%	86%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC Selected by switch 47~63Hz,240~370VDC
AC input voltage range	Cold-start current 18A/115V 36A/230V
OverLoad protection	105%~135% hiccup mode,auto-recovery
OverLoad protection
Setup,rise,hold up time	200ms 50ms 20ms
Withstand voltage	I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
Working temperature	-10°C~+50°C
Safety standards	Design refer to GB4943,UL60950,EN60950
EMC standards	Design refer to GB9254,EN55022 classB
Weight	2.19 kg

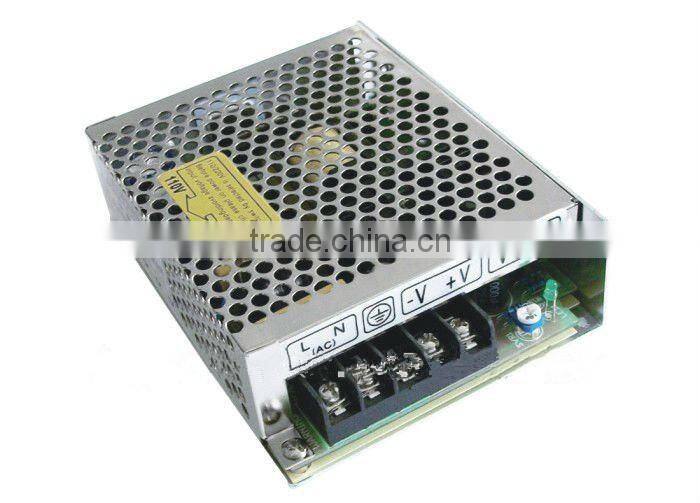

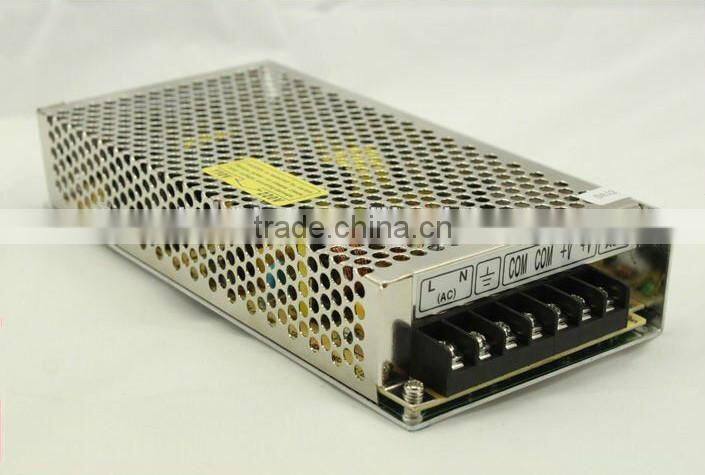

2. Detailed pictures
