Specifications
ABS Leds Injection Module0.48W 5050 2leds 12V Module
Waterproof IP68,CE,RoHS approved
Suitable for small LED letter
CE/ROHS

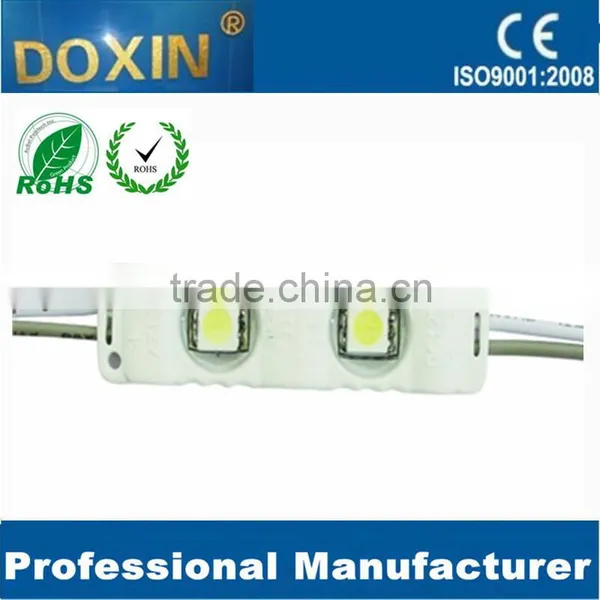

SMD5050 ABS led injection module 12V automotive 2 LEDS lights
Briefly description & advantage:
2LEDs 5050 SMD LED Module
Plastic housing injection module
Waterproof IP65, 12VDC, CE, RoHS
Warranty: 2 years
Mini style for small LED Sign or Channel Letters
Available Color: Red, Yellow, Blue, Green, White.

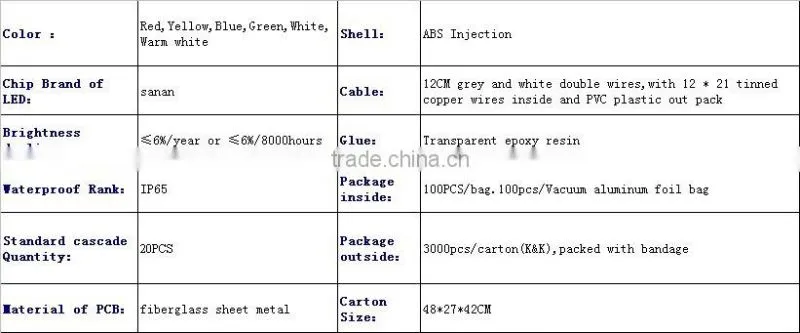

Specification:
Size: 60.6*17*5.7mm
IP Class: IP65
Weight: 7g
Beaming Angle: 120
Input Voltage: 12VDC
Power Consumption: 0.48W/PC
Power Supply: Waterproof style
Max Piece of One Single Loop: 50pcs
Green, Energy Saving.
Low voltage, DC 12V, High brightness.
Conforming to international standard
Absolutely safe and stable
Save 90% electricity compared to traditional lights
Light source: 2pcs 5050 LEDs adopted, high light output with lower power consumption.
Energy saving, environment-friendly, no spot; no shadow
Easy installation with two mounting holes and 3M adhesive tape on the back
Slim body design make it can be installed into small channel letter conveniently.
Application: Backlight of signage, channel letter, signs, light box etc.
- Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements
- Ideal for small channel letter & lighting box with depth about 5-8cm.
- Edge lighting of transparent diffused materials
- large area back lighting
- Emergency / rescue sign
Package Info: 1,000pcs/CTN, Gross Weight: 12kgs/CTN, carton size: 48*27*42CM
Attention: Please do not install it in totally exposed outdoor environment.
Warranty: 24 months
