New Style Automatic Chicken Feeding System

FOB Price

US$ 100 - 20,000 / Set

1 Set(Min. Order)

Port tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	wanfa
Model Number	wf001

Product Description

Specifications

chicken feeding system
1.full automatic and adjustable
2.easy to clean
3.durable and high quality

new style automatic chicken feeding system

Product Description

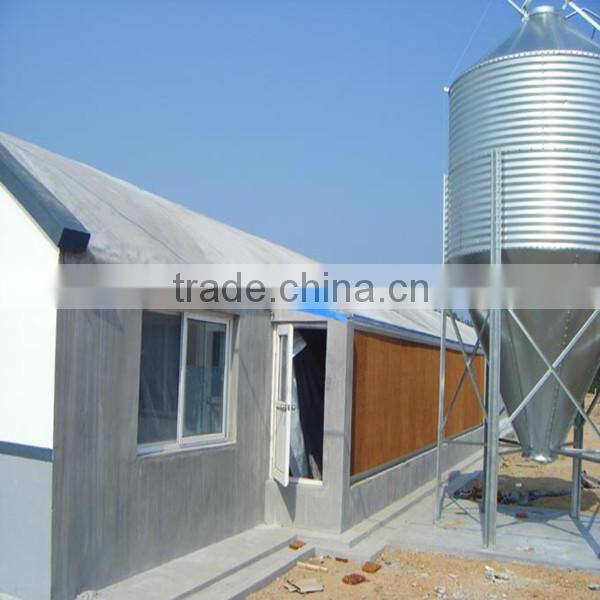

1.main feeding line

This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

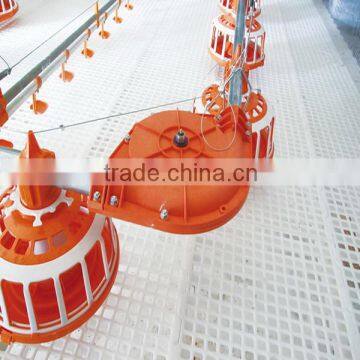

2.broiler feed system

This system deliver feed automatically through motor under the control of feed sensor,which

ensure birds feeding during whole growing period.

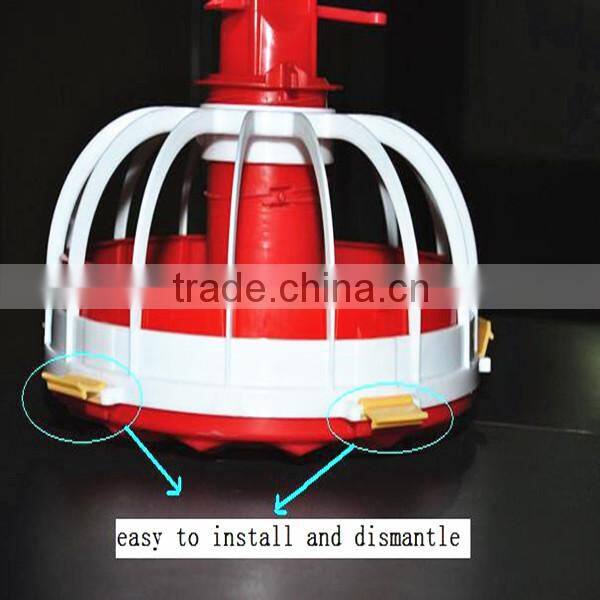

Details of Broiler feeder pan:

Details of broiler feeding pan
No. of grilles per pan	14
No. of birds per pan could feed	40-55
Distance per grille	70mm
Density of broiler	13-18birds/M2
Max feed per pan for one bird per day	180g/bird
Dimension	330mm×330mm

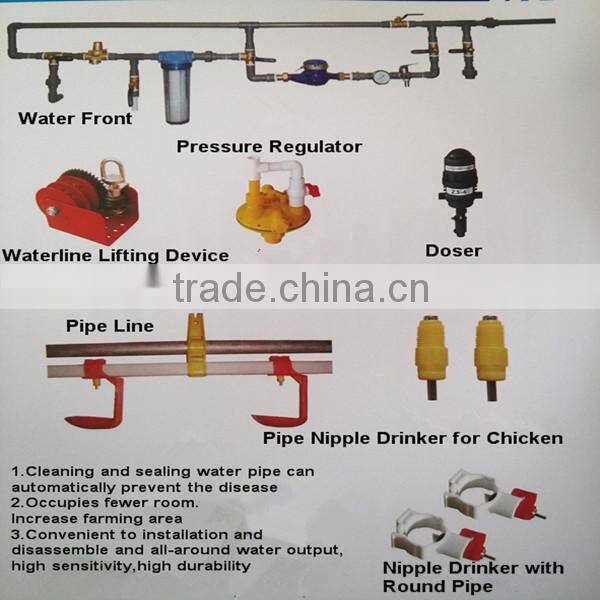

3.niplple drinker system

This system can provide fresh and clean water for poultry which is crucial for the growth of

poultry.The drinkers can be triggered from 360 degree which helps young birds start well and

makes drinking easier.

Specification	12nipple/3m & 15nipple/3m
Max Work Length	150m
Nipple Drinking interval	20cm/25cm
Drinking Line interval	2.5-3.5m
Hanging Point interval	3m
No. of chicken supplied	10-12
Standard Water Quality	Clean
Shape of water pipe	Square or round
Diameter of water pipe	22mm or 25mm
Material of water pipe	PVC

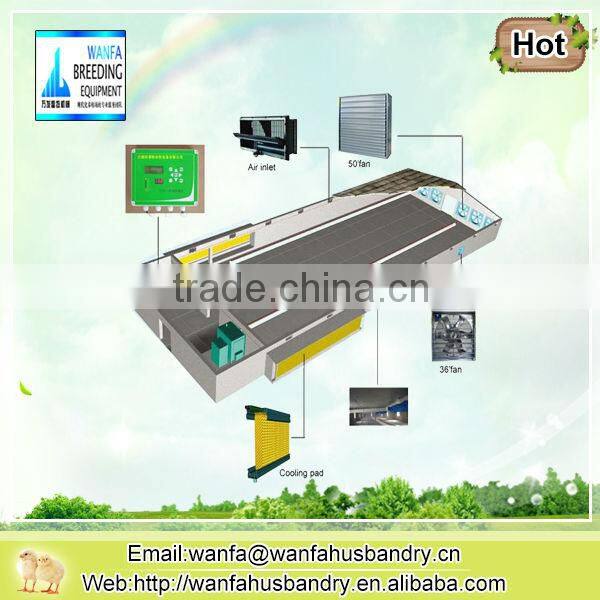

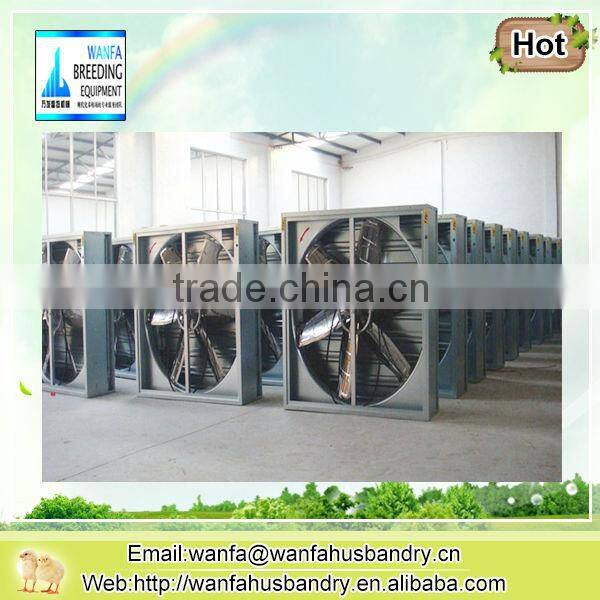

4.ventilation system

This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it's vital for growing birds. This system include poultry house fan, air inlet window.

	36” Fan	50” Fan
air capacity	21000 m3/h	43000 m3/h
size	10001000450mm	13801380450mm
noise	≤64dB	≤65dB
power	0.75kw	1.1kw
voltage	380V	380V
electric current	1.6A	2.8A
weight	66kg	88kg

5.environment control system

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chicken.It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

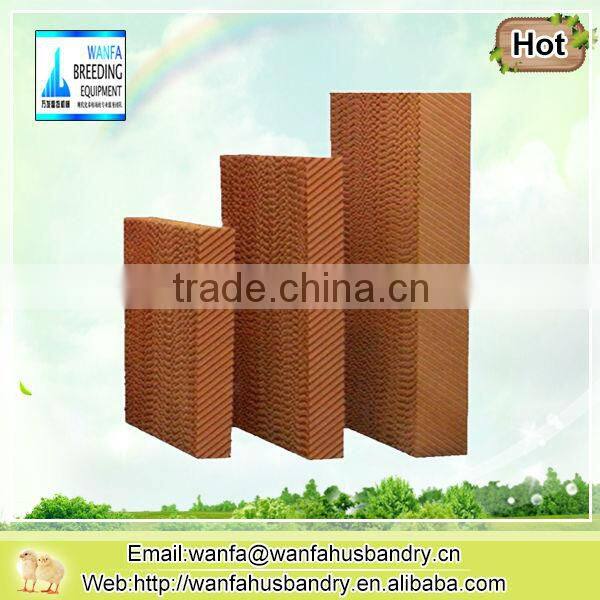

oling pad system

(1)Thickness specification: 100mm,150mm

(2)Width and Heightspecification:as requirement

(3)Outer frame: galvanized sheet and aluminum alloy, rust prevention treatment

(4Aluminum alloy frame: high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical.

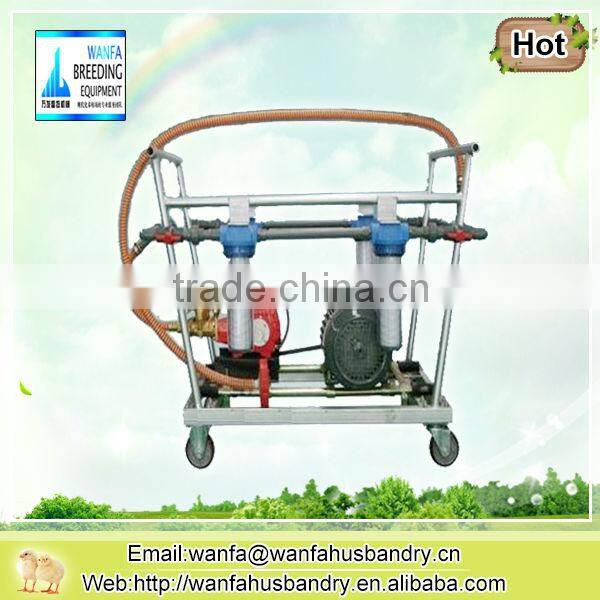

7.sparying system

This system effectively cools,humidifies,dedusts and disinfects the henhouse.

8.lighting system

♦Trade Information

1.Trade Terms:FOB,CIF,EXW

2.Payment Terms:T/T,L/C

3.Payment Condition:30% deposit in advance,70% balance before delivery

4.Delivery Time:15 days after deposit

5.Packing:by carton

6.Shipping:by sea/air/express delivery

♦Trading Process

Packaging & Shipping
