1000W power inverter with charger

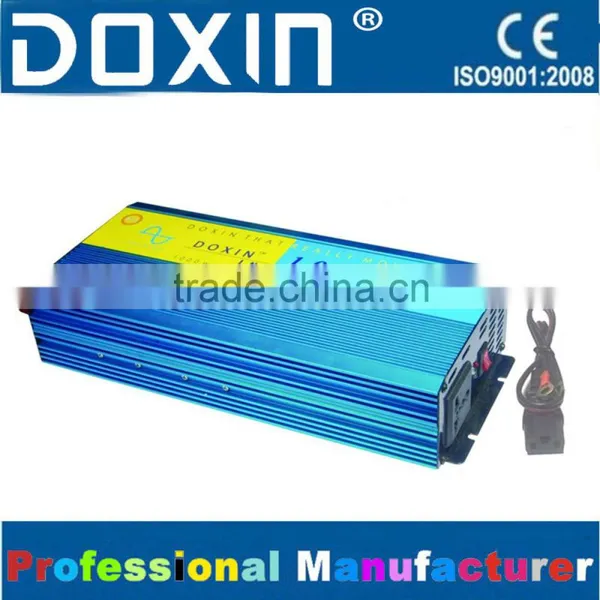

HOT! Pure Sine Wave DC 24v to AC 220v 1000W Power Inverter with charger&ups
1.Feature:
(1)High frequency pulse width modulation technology
(2)Excellent double-faced circuit board and components
(3)High quality and high performance
(4) EU, AU, France, German socket is available.
2. All Protection
Over-load
Low-load
Over-voltage
Low-voltage
Buzzer Alarm
Short-circuit
Over-temperature

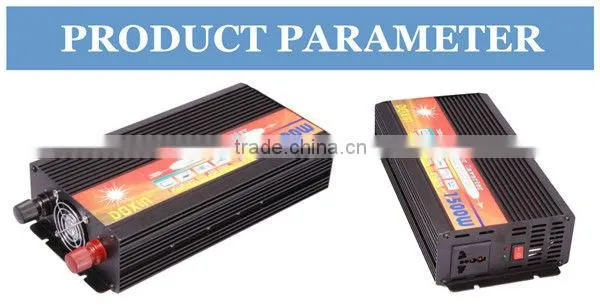

3 . Data of DXP1010WUPS-10A
| Model: DXP1010UPS-10A | Wave form: Pure sine wave |
|
Charger: 10A Continuous power: 1000W |
UPS: Bidirectional shift Surge power: 2000W |
| Rated input volt: 12VDC / 220VDC | Input voltage range: 10-16VDC |
| Output volt: 220V/12VAC | Frequency: 50/60±1Hz |
| THD: <4% | Standby input power: <10W |
| Efficiency: >87% | Max outer temperature: <65°C |
| Cooling: Fan | Overload and short-circuit protection: Yes |
|
Dimension(L*W*H): 355*150*70MM Battery chip cord length: 70CM(optional) |
No load current draw: <0.6A |
PROTECTION SPECIALTY |
|
| Input low voltage protection: 9V±0.2V | Input high voltage protection: 17V |
| Low input voltage alarm: 9V | Temperature protection: >70°C |
| Operating temperature: -20°C ~ +40°C | Storage temperature: -30°C ~ +80°C |
| Input anti-access protection: Self repair | Output short-circuit protection time: 2~3 seconds |
Output overload(>1500W) protection time: 2~3 seconds |
Output overload(<1300W) protection time: 30 seconds |
| STATUS INSTRUCTIONS |
| Proper functioning indication: Green lighting constantly |
|
INPUT VOLTAGE ABNORMAL INDICATION: 1. Input low-voltage protection: Red light and have A long whistle sounded 2. Low input alarm: Red light flashing, make bumming sounds 3. Input high voltage protection: Red light and have A long whistle sounded |
|
OUTPUT ABNORMAL INDICATION: 1. Output overload: Yellow light bright, after 30 seconds, light will turns red, and have A long whistle sounded 2. Output overload or short-circuit protection: short-circuit 2~3 seconds, the light turns red and have a long whistle sounded |
4. Note:
Don't use them in the high temperature
Don't overload the voltage
Don't use when the low voltage alarm is beginning
| Model: DXP1010 | Wave form: Pure sine wave |
| Continuous power: 1500W | Surge power: 3000W |
| Rated input volt: 12V/24VDC | Input voltage range: 10-16VDC |
| Output volt: 110/220V/230V/240VAC | Frequency: 50±2Hz |
| THD: <4% | Standby input power: <10W |
| Efficiency: >87% | Max outer temperature: <65°C |
| Cooling: Fan | Overload and short-circuit protection: Yes |
|
Dimension(L*W*H):355*155*70MM Battery chip cord length: 70CM(optional) |
No load current draw: <0.6A |
PROTECTION SPECIALTY |
|
| Input low voltage protection: 9V±0.2V | Input high voltage protection: 17V |
| Low input voltage alarm: 9V | Temperature protection: >70°C |
| Operating temperature: -20°C ~ +40°C | Storage temperature: -30°C ~ +80°C |
| Input anti-access protection: Self repair | Output short-circuit protection time: 2~3 seconds |
Output overload(>1500W) protection time: 2~3 seconds |
Output overload(<1300W) protection time: 30 seconds |
| STATUS INSTRUCTIONS |
| Proper functioning indication: Green lighting constantly |
|
INPUT VOLTAGE ABNORMAL INDICATION: 1. Input low-voltage protection: Red light and have A long whistle sounded 2. Low input alarm: Red light flashing, make bumming sounds 3. Input high voltage protection: Red light and have A long whistle sounded |
|
OUTPUT ABNORMAL INDICATION: 1. Output overload: Yellow light bright, after 30 seconds, light will turns red, and have A long whistle sounded 2. Output overload or short-circuit protection: short-circuit 2~3 seconds, the light turns red and have a long whistle sounded |
|
PURE SINE WAVE: As inductive load, is good to run precise instrument. |
MODIFIED SINE WAVE: Suitable for general electrical equipment |

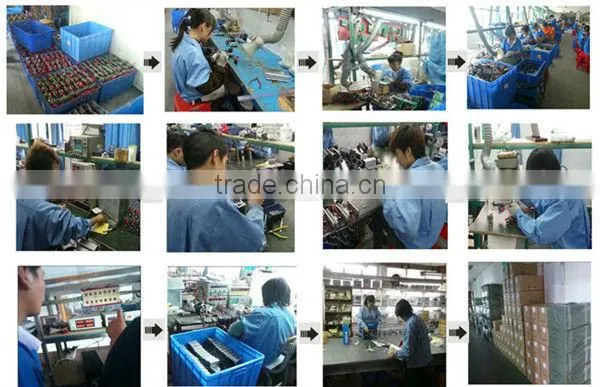

DOXIN is a professional manufacture specialized in electronics and solar products ,we produce electronics products more than 10 years .We have professional development team.We pursues to establish the culture of "quality first ,reputation best ".
Our products usually are exported big quantity in to Europe, USA,African, Russia, Australiaetc. and our power inverter serials enjoy better reputation .With reliable quality and stable performance.
1) In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.

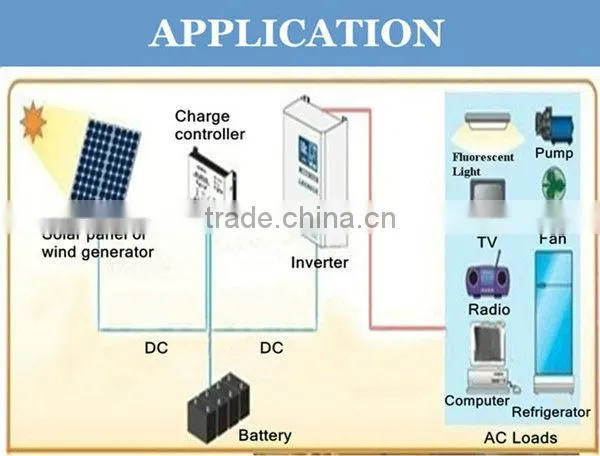

2) Industry equipments series: solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, 3P air condition, and etc.
6) Power tool series: electric saw, drilling machine, punching machines, air compressors etc.
Ideally suitable for Journeys, Camping, Tents, Boat Trip,
Working on the way and everywhere, where is no electricity !

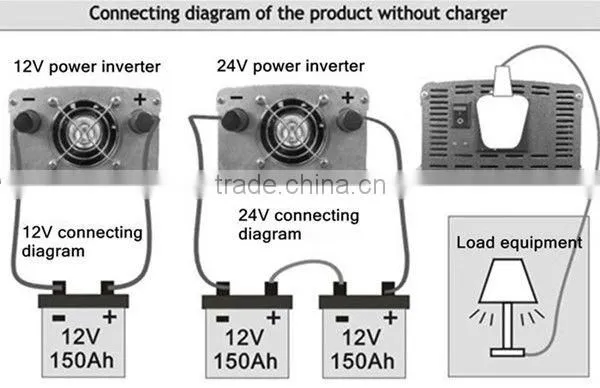

Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/ 220v electrical appliances.
Warranty&Returns:
• 1 year warranty from date of purchase record:
Please email us first if you have any questions or problems with the item received. We will try our best to solve the problem for you.
If we cannot help you through emails, we will give you return instructions.
No refund or replacement will be processed without the item being returned back to us. We reserve the right to refuse any returns for our reasons.
• Buyer is responsible for return shipping cost in any situation.
• We will not be liable to customer for any damages beyond the amount of money that customer has actually paid us.
