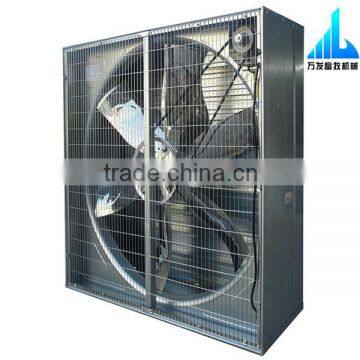

axial flow ventilation exhaust fan for poultry farm

axial flow ventilation exhaust fan for poultry farm

We have two size:36 inch and 50 inch.

36 inch fan:

Frame: galvanized steel sheet, the layer of the galvanization is 150g/square meter,and the frame is one-off molded, also there is a outlet in the bottom.

Fan Blades: 6 pieces of Germany-imported mirror finished stainless steel blades with the diameter of 910mm and the angle of the blades is patented designed. The fan translations have all passed the experiment of homeostasis, which makes the air volume keep the same as the very beginning during the operational life span of the fans.

Shutter: high strength hot-galvanized steel sheet, with a centrifugal system which can ensure the shutter opens with the angle of 90 degree under all the condition. And uncontrollable air can never goes into the birdhouse as the shutter works.

Belt Pulley: the V type belt pulley is aluminium magnesium alloy injection moulded, so it’s light and high-strength.

Belt:the belt is imported from Japan it is ametabolic in a longtime.

Motor: The motor is high efficiency and low wastage of energy and have accredited 3C certification; the Grade of Protection is IP54 and the Insulation Grade is F.

Maintenance free: there is no use to maintain it during its life circle.

Performance: it is used to ensure the minimum and transverse ventilation in spring and fall and it usually works with the air inlet.(the details are as followed)

Ordinary Pressure Air Volume:20800

Frame: galvanized steel sheet, the layer of the galvanization is 150g/square meter and the frameis one-off molded, also there is a outlet in the bottom.

 Fan Blades: 6 pieces of Germany-imported mirror finished stainless steel blades with the diameter of 1270mm and the angle of the blades is patented designed. The fan translations have all passed the experiment of homeostasis, which makes the air volume keep the same as the very beginning during the operational life span of the fans.

Shutter: high strength hot-galvanized steel sheet, with a centrifugal system which can ensure the shutter opens with the angle of 90 degree under all the condition.

 Belt Pulley: the V type belt pulley is aluminium magnesium alloy injection moulded, so it’s light and high-strength.

 Belt:the belt is imported from Japan it is ametabolic in a longtime so there is no use to maintain it during its life circle.

 Motor: The motor is high efficiency and low wastage of energy and have accredited 3C certification; the Grade of Protection is IP54 and the Insulation Grade is F.Maintenance free: there is no use to maintain it during its life circle.Performance: it is used for longitudinal ventilation, the effect would be better if the fan translation works with a cooling pad. (the details are as followed)

 Ordinary Pressure Air Volume: 20800m3/h

 -20Pa Air Volume:17700 m3/h

Quiver:3.7mm/s

Noises:61dB

Install Locations:mainly installed in the lateral wall.

50 inch fan:

Frame: galvanized steel sheet, the layer of the galvanization is 150g/square meter,and the frame is one-off molded, also there is a outlet in the bottom.

Fan Blades: 6 pieces of Germany-imported mirror finished stainless steel blades with the diameter of 1270mm and the angle of the blades is patented designed. The fan translations have all passed the experiment of homeostasis, which makes the air volume keep the same as the very beginning during the operational life span of the fans.

Shutter: high strength hot-galvanized steel sheet, with a centrifugal system which can ensure the shutter opens with the angle of 90 degree under all the condition.

Belt Pulley: the V type belt pulley is aluminium magnesium alloy injection moulded, so it’s light and high-strength.

Belt:the belt is imported from Japan it is ametabolic in a longtime so there is no use to maintain it during its life circle.

Motor: The motor is high efficiency and low wastage of energy and have accredited 3C certification; the Grade of Protection is

IP54 and the Insulation Grade is F.Maintenance free: there is no use to maintain it during its life circle.Performance: it is used for longitudinal ventilation, the effect would be better if the fan translation works with a cooling pad. (the details are as followed)

Ordinary Pressure Air Volume: 43070 m3 /h

-20Pa Air Volume: 38500 m3 /h

Quiver: 4.5mm/s

Noises: 64.5dB

Install Locations: mainly installed in the frontispiece and the side wall near the frontispiece.

Performance Parameter
