Home > Electrical & Electronics > Inverter > Power Inverter > New Product Electric Car Solar Kit 12v 800w Inverter Best Web to Buy China

New Product Electric Car Solar Kit 12v 800w Inverter Best Web to Buy China

New Product Electric Car Solar Kit 12v 800w Inverter Best Web to Buy China photo-1

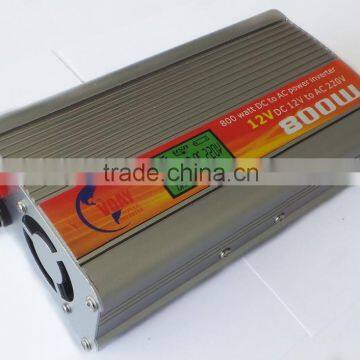

New Product Electric Car Solar Kit 12v 800w Inverter Best Web to Buy China photo-2

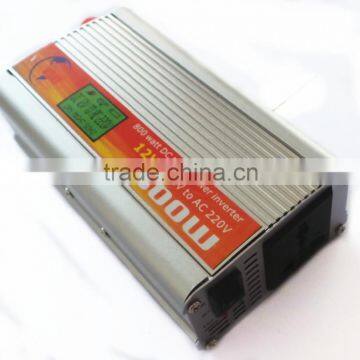

New Product Electric Car Solar Kit 12v 800w Inverter Best Web to Buy China photo-3
US$ 15 - 16.33 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VDAY
Model Number:
VD800W
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name VDAY
Model Number VD800W
Output Power 500 - 1000W
Output Type Single
Size 167*95*55mm
Weight 768.6g
Input Voltage 12V
Output Voltage 220V
Type DC/AC Inverters
Output Frequency 50Hz / 60Hz
Output Current 3636mA

new product electric car solar kit 12v 800w best web to buy china

1. Description:

power inverter,solar inverter,solar power inverter,dc to ac power inverter,off grid solar inverter
Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.
This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.



2. Features and Application:
• Modified sine wave output
• High efficiency and portable
• Intelligent switch with digital display to show the input voltage and loading
• Intelligent to control the fan
• Advanced microprocessor design
• With under voltage/over voltage/over load/short circuit/overheat protection function



3.Parameters:

NO.

Testing project

Test standard

1

continue power

800W

2

rated voltage

9.7V-15.5V

3

work voltage

11V-15V

4

No-load current
(with the rated voltage )

<0.3A

5

No-load output voltage
(with the rated voltage )

220V-240V

6

output voltage(12V-14V) with regulating load(10W-300W)

210V-240V

7

Fan

start work when load is 60W-200W

8

frequcncy

50Hz±3Hz

9

over voltage cut off voltage
(no-load)

11.0V±0.5VDC

10

over voltage alarm voltage
(no-load)

10.0V±0.3VDC

11

low voltage turn off voltage
(no-load)

11.0V±0.5VDC

12

recover voltage after turn off
(no-load)

12V±0.3VDC

13

over load protection(5-15s)

58-62A

14

short-circuit protection

the inverter will not broken with several times short-circuit
(cold mode)

15

indicator light

work mode:green light lights,
red light unlights;
production mode:red light lights, green light unlights.

16

environment temperature

25°C±1°C

17

Miniature fuse

40A*2 (inside)

18

Load efficiency
(rated input voltage)

80%

19

Maximum efficiency
(in rated input voltage)

85%

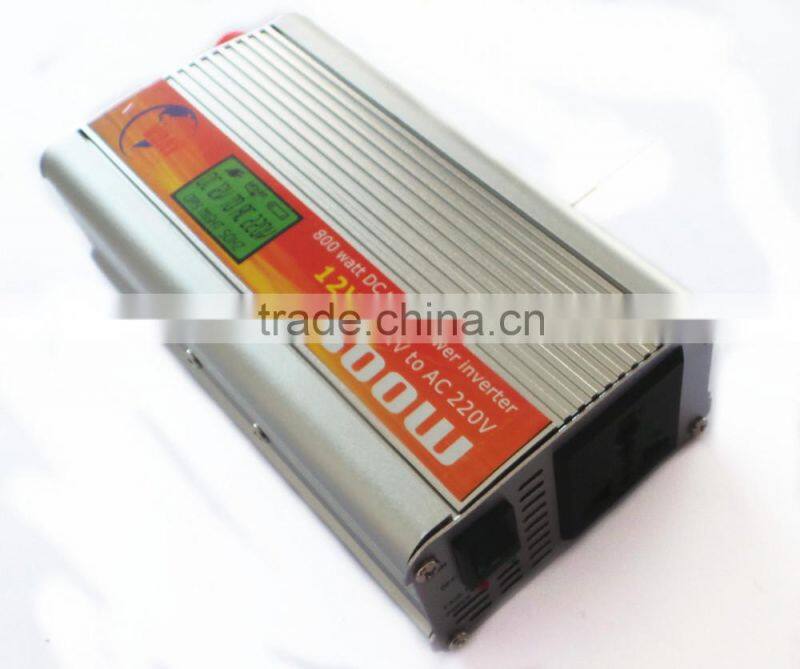

Display:

new product electric car solar kit 12v 800w inverter best web to buy chinanew product electric car solar kit 12v 800w inverter best web to buy chinanew product electric car solar kit 12v 800w inverter best web to buy china

new product electric car solar kit 12v 800w inverter best web to buy china



Guarantee:

1. Full refund will be acceptable without any reason in 7 days from the day you receive our goods. Buyers must pay for thr return shipping and the goods must be in original condition for resale. Or, after confirmed the returned package, buyer can change other different and value-equally products instead, buyer also need to bear correlative shipping cost for repalcements.

2. For these items which have quality problems caused by passive waste in warranty period(1 year, from the day you singal up the package), we have duty to maintain, repaire and offer some neccessory technical supports to fix these problems. For these items need to repair, buyer bear the shipping cost for return, we take resposibility to repair them free and bear the shipping cost to ship them back. The same, new model exchanged are acceptable only this product passive waste problems occura and can't be solve out or agree by both parties.

3. We are glad to source new items for our customer. Buyer should offer as many as possible details for thr new items buyer need to source, including specification, package picture, functions..., to insure that we get exact items buyer want, We also offer "Item 2" service. But "Item 1" is not available here, for we don't accept refund for these new items.

4. Extra accessories, package, OEM, service and repaired fee by negative waste problems(such as deliver's poor handle, damages by bad weather) willl be charged based on two parties' negociation.

5. As for these damaged item(including accessories and package) during transportation, we will ship them back in buyer's next order. We can ship them back alone according to buyer requirements, but buyer bear the shipping cost. If bulk item damaged occur, buyer also have duty to get us nesseccory documents(Damaged certification, pictures...), so we can claim from corrective express company.

6. We will consider you have agreed these terms above once we deal business each other.

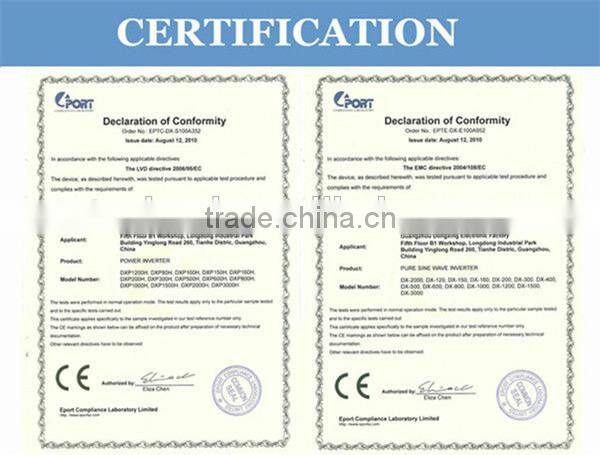

Certification:

new product electric car solar kit 12v 800w inverter best web to buy china

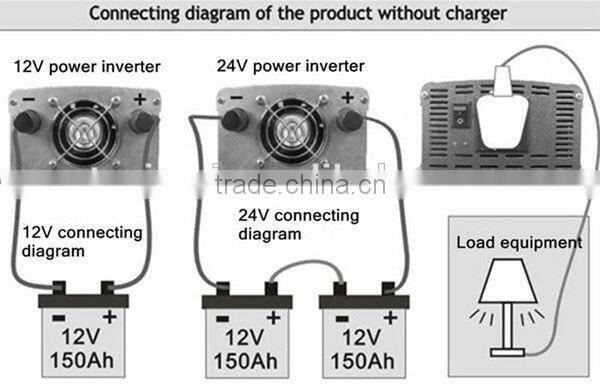

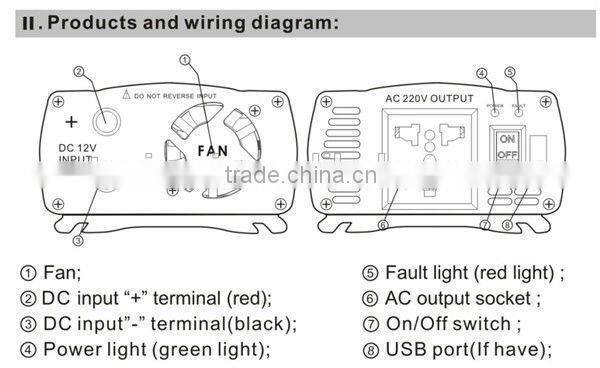

Connection:

new product electric car solar kit 12v 800w inverter best web to buy china

Contact:

new product electric car solar kit 12v 800w inverter best web to buy china
