2016 hot sale farm automatic Chicken feeder pan
- 500 Set / Sets per Month
- Tianjin
- T/T
You May Like
-
2014 Ready sale farm automatic Chicken feeder pan
-
New model broiler feeding system for poultry farm
-
Hot sale automatic broiler feeding system for poultry farm
-
New model full automatic broiler feeding system for poultry farm
-
Hot sale good qualitty cheap wet curtain for poultry farm
-
2014 Hot sale factory advanced poultry equipment for sale
Product Details
Place of Origin | Hebei, China | Brand Name | WANFA | |
Model Number | wf001 |
Product Description
Tangshan Shuangying Wanfa Husbandry Machinery Co., Ltd. has 10year's product experience,which is one of the biggest factory in North of China,we can make chicken,duck and,pig farming equipment and ect ,if you have special request,we also can customize for you.
Company Honor
Cooperate Enterprise
1.main feeding line
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical ly to release automatic delivery.
2.broiler feed system
This system deliver feed automatically through motor under the control of feed sensor,which
ensure birds feeding during whole growing period.

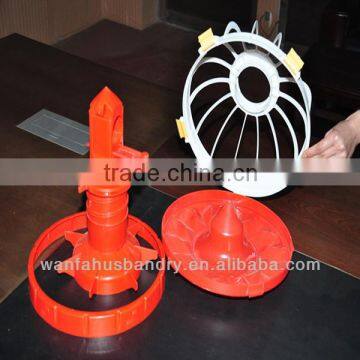

Details of Broiler feeder pan:
Details of broiler feeding pan |
|
No. of grilles per pan | 14 |
No. of birds per pan could feed | 40-55 |
Distance per grille | 70mm |
Density of broiler | 13-18birds/M2 |
Max feed per pan for one bird per day | 180g/bird |
Dimension | 330mm×330mm |
3.niplple drinker system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
Specification | 12nipple/3m & 15nipple/3m |
Max Work Length | 150m |
Nipple Drinking interval | 20cm/25cm |
Drinking Line interval | 2.5-3.5m |
Hanging Point interval | 3m |
No. of chicken supplied | 10-12 |
Standard Water Quality | Clean |
Shape of water pipe | Square or round |
Diameter of water pipe | 22mm or 25mm |
Material of water pipe | PVC |
4.ventilation system
This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it's vital for growing birds. This system include poultry house fan, air inlet window.
36” Fan | 50” Fan | |
air capacity | 21000 m3/h | 43000 m3/h |
size | 1000*1000*450mm | 1380*1380*450mm |
noise | ≤64dB | ≤65dB |
power | 0.75kw | 1.1kw |
voltage | 380V | 380V |
electric current | 1.6A | 2.8A |
weight | 66kg | 88kg |
(1)Service Concept :Customer first and mutual win-win.
(2)Service Commitment: Life-long time gurantee.
(3)Experience: We've 23 years's product experience,so we are professional and reliable in poultry equipments area.
Trade info.
Trade terms: EXW, FOB ,CIF
Payment terms:T/T,L/C
Payment Condition:30% deposit in advance,70% balance before delivery
Delivery Time:15 days after deposit
Packing:carton
Shipping:By sea,by air and by express delivery
