DOXIN Brand car power inverter dc 24v to ac 220v travel adapter
1. Feature
1) It is featured as high reliability, and low failure rate, with the advanced double CPU SCM intelligent controlling technology.
2) Pure sine wave output, strong ability of driving load, wide range of application
3) Perfect protection functions (Overload protection, inside overheat protection, output short circuit protection, input low-voltage protection, input overvoltage protection), enhanced the reliability of the product.
4) Small and light: with the technology of CPU centralized control and SMD inside, the product is very small and light.
5) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
6) Low noise but high efficiency while working.
2. Specification:
1. Output waveform: Modified sine wave
2. High efficiency: 85%
3. 24V DC input
4. 220V-240V AC output
5. Output frequency: 50Hz
6. Continuous output power: 800W
7. Peak power: 2000W
8. High-velocity cooling fan
9. Overload protect, over voltage protect
10. Low voltage cut-out, low voltage alarm
|
DXP1000W |
|
Input |
Voltage |
DC48V |
|
Voltage Range |
45-50V |
No load Current Draw |
<3A |
|
Efficiency |
Average 85% max 90% |
|
Connector |
Cables with connector |
|
Output |
AC Voltage |
AC110/220V |
Continuous Power |
800W |
|
Surge Power |
2000W |
|
Waveform |
Modified sine wave |
|
Frequency |
50Hz or 60Hz |
|
Protection |
Low Voltage Alarm |
YES 45.8-46.8V |
Low Voltage Protection |
YES 44.5-45.5V |
|
Over Load Protection |
YES (120%-130% ) |
|
Over Voltage Protection |
YES 50-52V |
|
Thermal Protection |
YES, ( shutdown ) |
|
Short circuit protection |
YES, ( shutdown ) |
|
Environment |
Working Temperature |
-5° C ~ +40° C |
Working Humidity |
10%-90% |
|
Storage Temperature |
-20° C ~ +50° C |
|
Storage Humidity |
5%-95% RH |
|
Package |
Dimension( L*W*H ) |
61*25.5*26(cm) |
Net Weight |
8.5Kg |
|
Gross Weight |
9.3Kg |
|
Qty/CTN |
1pc/CTN |
|
|
Cooling |
Cooling Fan |
Total Harmonic Distortion |
THD<3% |
|
Certification |
CE |
|

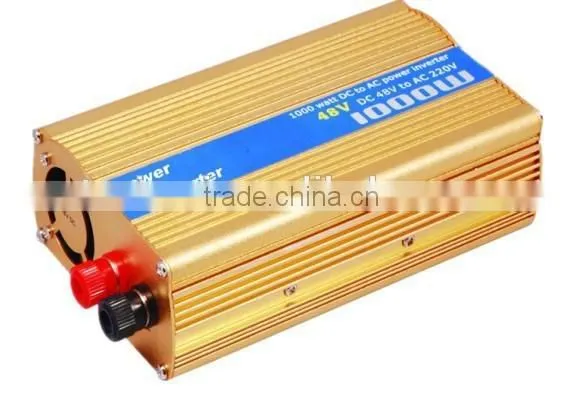

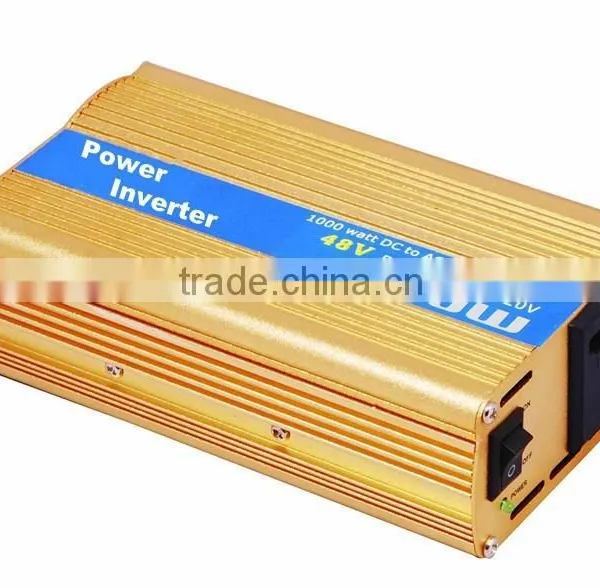

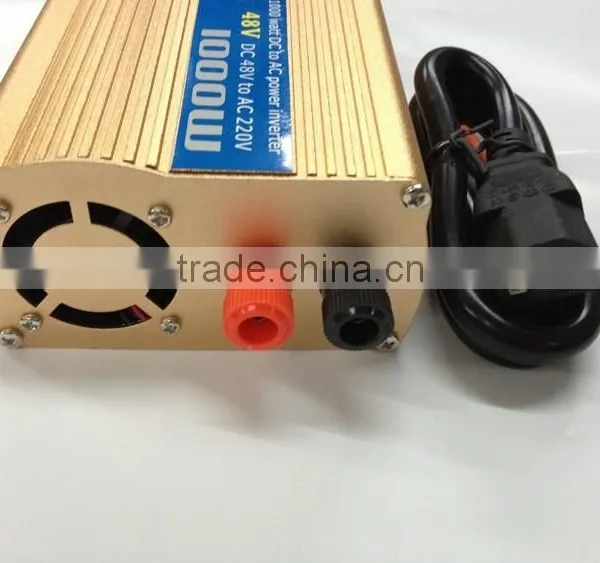

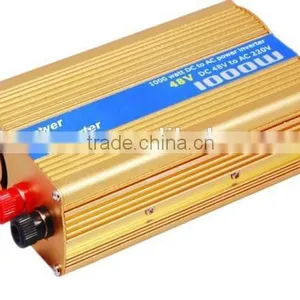

3. Detail Photo:

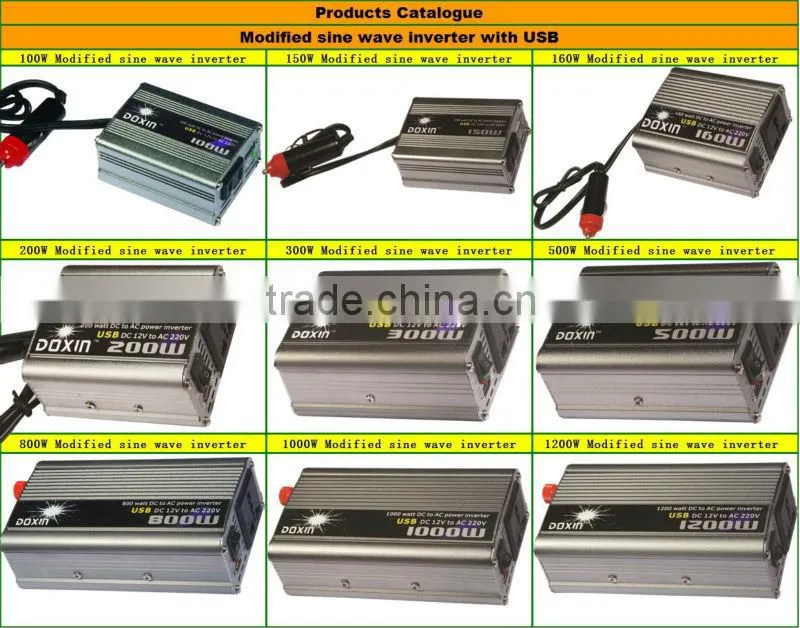

4. Other Models:
5. Application:
1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker, refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6) Power tool series: Electric saw, drilling machine, punching machines, air compressor etc.
6. Warranty: One year
If you can cooperate with us, we will be honored and you will benefit from:
1. The good construction warranty-1 years
2. Your client satisfied on the right schedule and quality
3. Your can get good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The free inverter samples after your first 3 orders
6. The reasonable price
7. Any questions from you are welcome and will be replied in 24 hours
7. Shipping & Payment:
8. Our Factory:
DOXIN is our Brandname.
We are an ISO 9001-2000 certified factory with all our product being CE, EMC, LVD, ETL, ROHS, e-MARK Certfied and we can also provide OEM service. Currently, our products are exported to America, Europe and more and more areas with warm welcome among customers.
