Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter

Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter thumbnail-1
Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter thumbnail-2
Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter thumbnail-3
Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter thumbnail-4
Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter photo-1
Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter photo-2
Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter photo-3
Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter photo-4
US$ 17.5 - 20.36 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DOXIN
Model Number:
DX100WP
Contact Supplier Request Quote Chat Now
Guangzhou Tianhe District Longdong Doxin Electronic Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DOXIN
Model Number DX100WP
Output Power 801 - 1000KW
Output Type Single
Size 170*95*60MM
Weight 1KG
Input Voltage 12V/24V/48V/64V, 12V or 24V or 48V or 64V
Output Voltage 110V/220V/230V/240V
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current 10A

Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter

1. Features:

CATALOGUE(DC12V--AC110/220/230V)

USB port optional



Item No.

DXP80H

DXP100H

DXP160H

DXP200H

DXP300H

DXP500H

DXP800H

DXP1000H

DXP1200H

* Max continuous power:

80W

100W

160W

200W

300W

500W

800W

1000W

1200W

* Peak Load Power:

160W

200W

320W

400W

600W

1000W

1600W

2000W

2400W

* NO load current draw:

<0.3A

* Input DC voltage Range:

DC9.7V-15.5V

* Output Voltage Range:

AC110/220V+/-5%

* Output Frequency Range:

60/50Hz+/- 3Hz

* USB Port Output:

DC5V 500MA

* Max Outer Temperature:

< 65°C

* Max Power Efficiency:

> 90%

* High Voltage Cut Off :

DC14.5V-15.5V

* Low Voltage Alarm:

DC 10.4-11.V

* Low Voltage Cut Off:

DC 9.7V-DC10.3V

* Overload &Short-circuit Protection

YES

* Input Voltage:

DC12V

* Output waveform:

Modified sine wave

* Cooling:

Bulit-in FAN

* Product Size(mm):

92*63*38

92*63*38

92*63*38

119*95*55

152*95*55

152*95*55

191*95*55

191*95*55

191*95*55

* Packing size

49*31*39cm(40pcs/ctn)

61*37.5*26cm(20pcs/ctn)

61*25.5*26cm(10pcs/ctn)

* N.W:

242.7g

242.7g

242.7g

374.4g

435.5g

489.9g

593.9g

1.85Kg

1.85Kg

* G.W:

288.0g

298.9g

298.9g

523.3g

608.9g

626.2g

845.5g

2.6Kg

2.6Kg







2.Product Description

1. The use of imported components manufacturing, advanced circuit design, the inverter up to 90% conversion efficiency, strict quality management system of production, modernization of water production, product quality assurance.

2. Complete product specifications, different standards at home and abroad, the product into the United States, Britain, France and Japan, several major series of products can also be designed according to customer needs.

3. The internal protection circuits to prevent the electrical pulses or voltage fluctuations, can withstand the compressor, the impact of TV monitors and other electrical power with greater security start, power switch can be completely cut off the internal circuit, to protect the battery from the fractured loss.

4. The design of self-protection, making the time when the voltage is lower than 10V, it will automatically shut down to ensure that the batteries have sufficient power to start the vehicle.

5. Overheating or overload will automatically shut down when; Return to normal and then starts automatically.

6. No work noise, normal use can be run for many years without maintenance.

7. A variety input and output mode: 12V input, 24V input, the importation of cigarette lighter, battery directly; 220V AC output, 110V AC output, fully able to meet domestic and foreign users of the exchange of electricity demand.
8. Aluminum products, high-pressure plasma process Ti surface, high hardness, chemical composition and stability, anti-oxidation, amateur appearance.

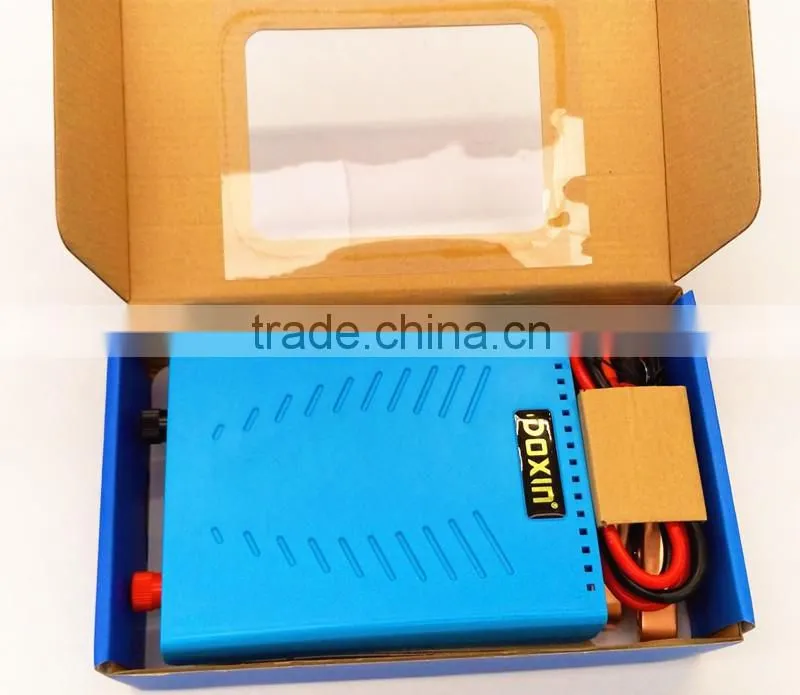

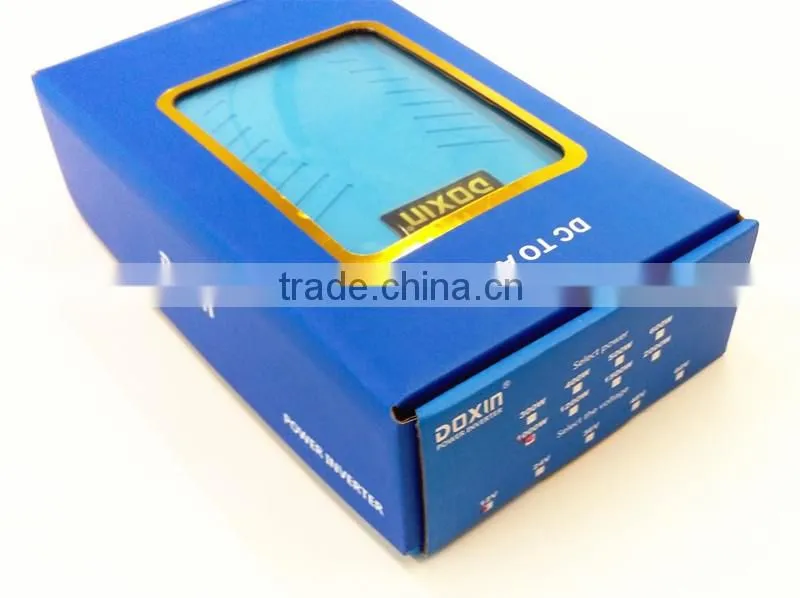

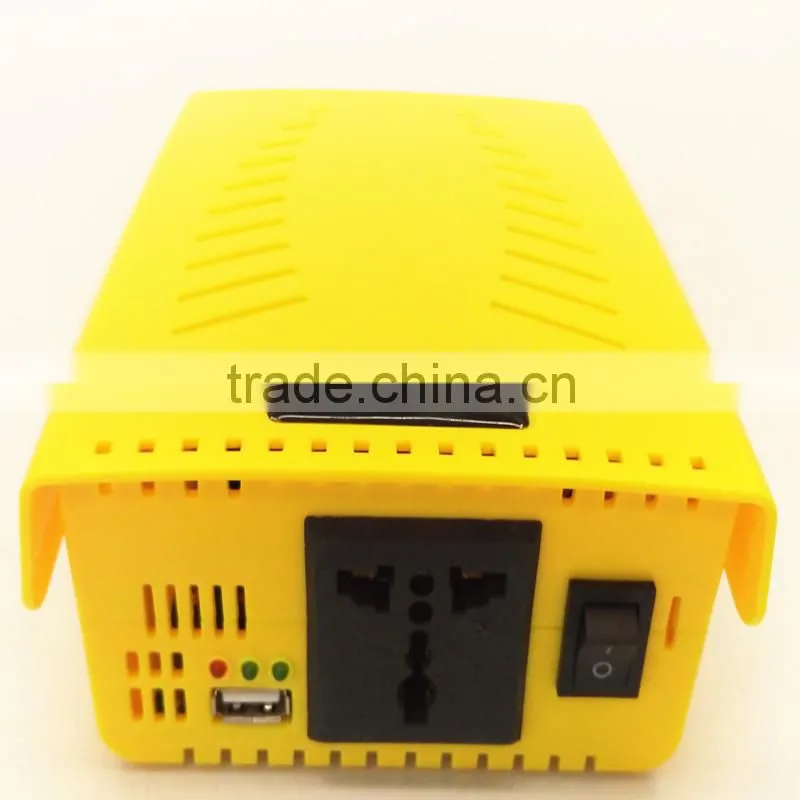

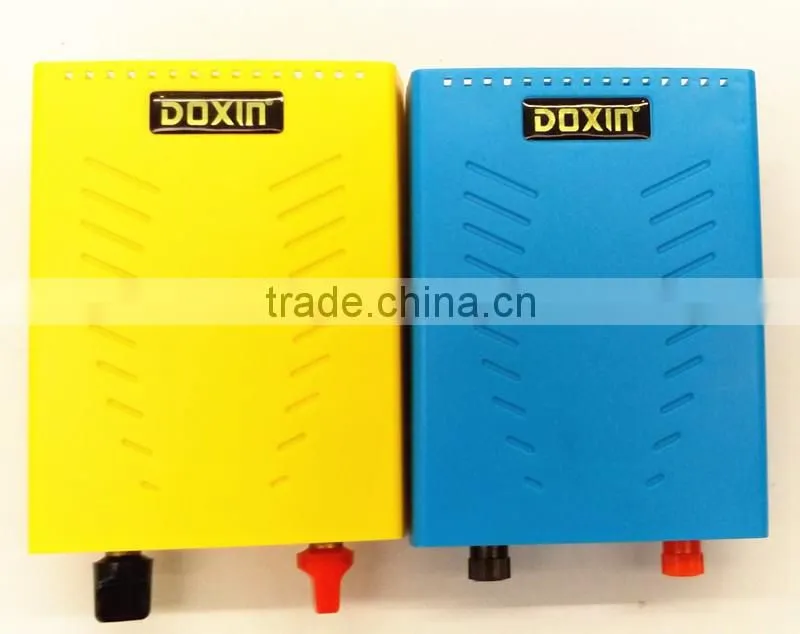

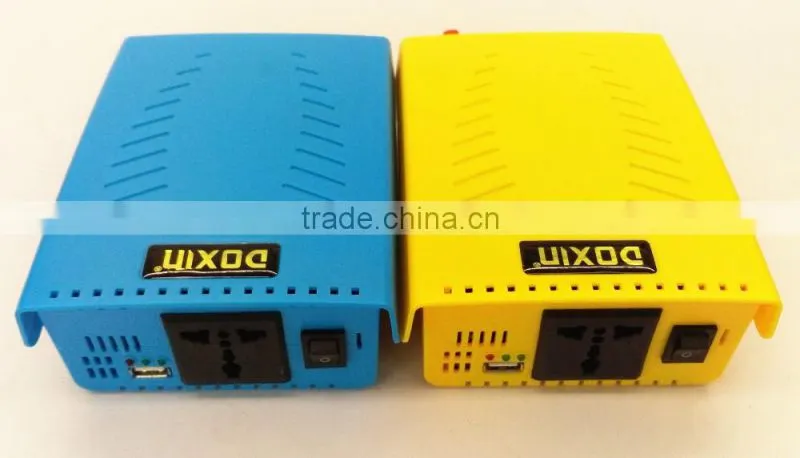

3. Detailed pictures:

Shina Spplier 1000W Car Micro Modified Plastic Shell Power InverterShina Spplier 1000W Car Micro Modified Plastic Shell Power InverterShina Spplier 1000W Car Micro Modified Plastic Shell Power InverterShina Spplier 1000W Car Micro Modified Plastic Shell Power InverterShina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter



Shina Spplier 1000W Car Micro Modified Plastic Shell Power InverterShina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter

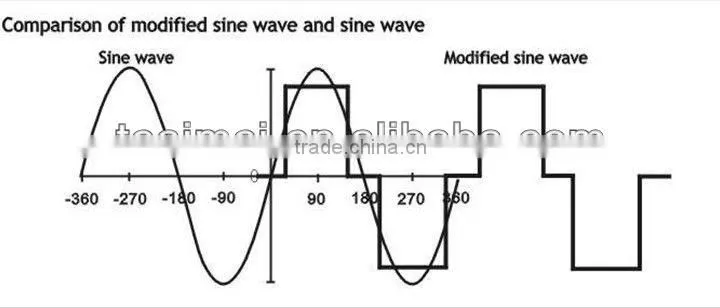

3. Wave form

Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter



4. Attention

Don't use them in the high temperature;keep the battery and charge for them

Don't overload the voltage;Don't use when the low voltage alarm is beginning

Shina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter

5. CE certificate



 6. Our factory:  Shina Spplier 1000W Car Micro Modified Plastic Shell Power InverterShina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter



7. Payment and shipment



 Shina Spplier 1000W Car Micro Modified Plastic Shell Power InverterShina Spplier 1000W Car Micro Modified Plastic Shell Power Inverter
