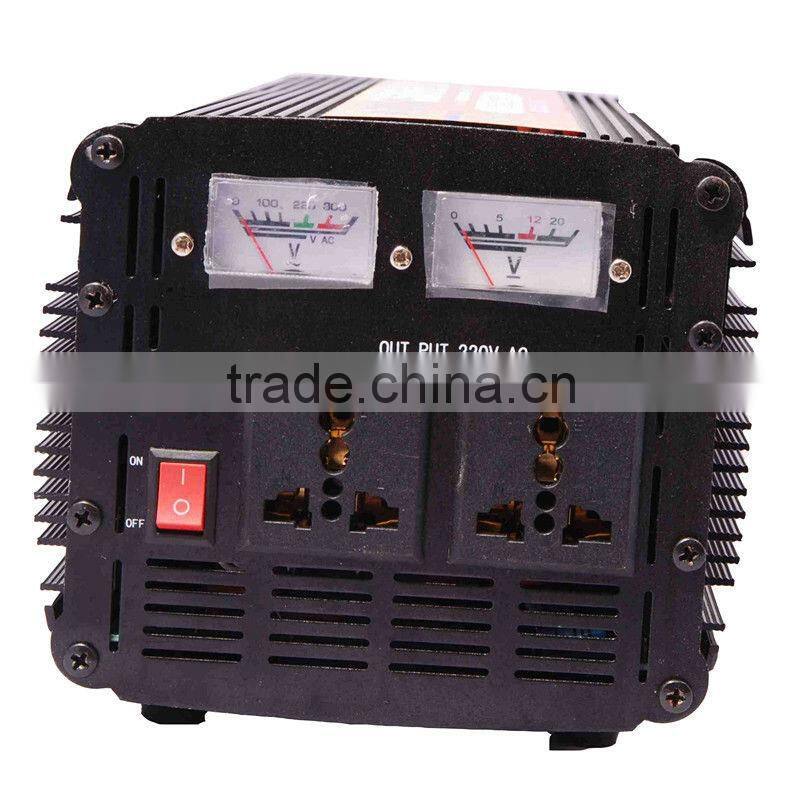

DOXIN 3000w Inverters 24v 220v UPS DC to AC Power Inverter

Specifications

DC to AC power inverter

DOXIN 3000w inverters 24v 220v UPS DC to AC power inverter

This is not only a power inverter, it is a 24v battery charger and an automatic UPS system.It is very suitable for using it to power many devices such as tv, fridge, light, computer,hifi,and at the same time it is a power back up for somewhere has electricity unsteady problem.It can be used as an UPS system for computer so the computer will never have data lost due to suddenly no power.

1. Features:
1. Input voltage Range: DC20-28V
2. Output voltage: AC220V
3. Output frequency: 50Hz/60Hz+/-2Hz
3. Fuse: 10A/15A/20A/40A/70A
4. Low battery alarm(nominal): 17V

5. Low battery shutdown point(nominal): 19±0.2V

6. High battery shutdown point(nominal): 30V

7. Battery drain with on AC(at 12V input): <0.3A
8. Peak efficiency: >90%
9. Durative output power: 3000W
10. Twinkling maximum power: 6000W
11. Output waveform: Modified Sine Wave

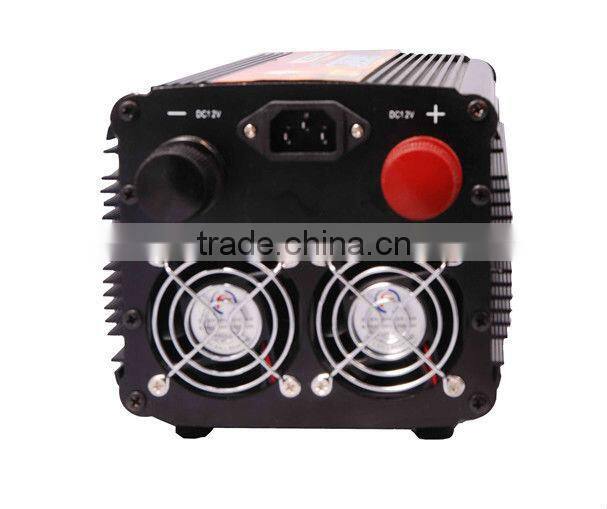

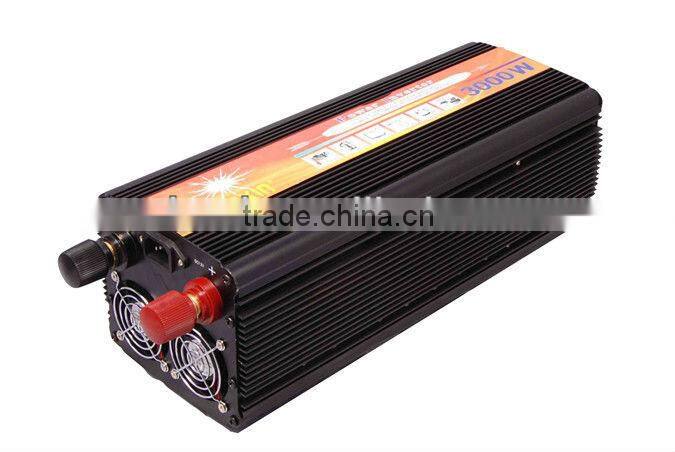

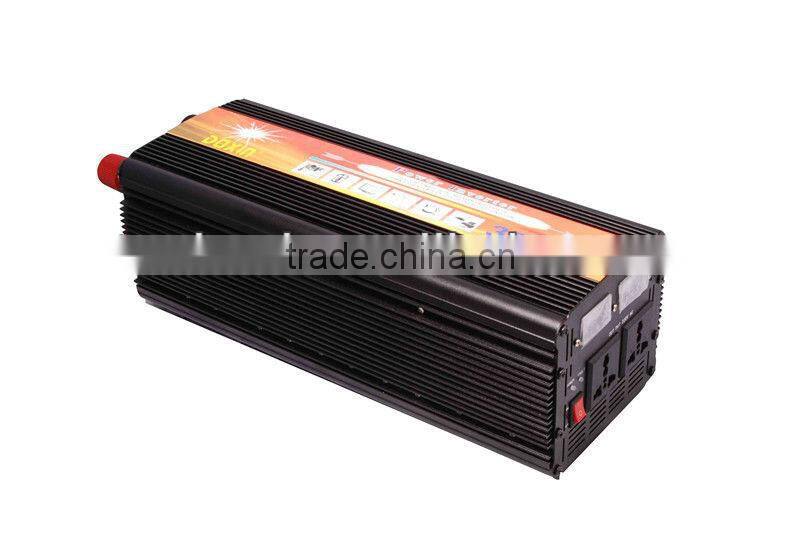

2. Detailed pictures:

3. All protection function

(1)Over load   (2)Over temperature (3)Over voltage

(4)Low voltage(5)Reserve connect protection

(6)Over current (6)Short circuit

(7)Internal built in fuse (8)Buzzer alarm

4. Application :

1, Use of imported components manufacturing.advanced circuit design,up to 90% conversion efficiency,strict quanlity management system,modernization of water production,prroduct quanlity assurance.

2, Complete product specifications,different standards at home and abroad,several major series of products can also be designed according to customer needs.

3, Internal protection circuits to prevent the electrical pulses or voltage fluctuations,the design of self-protection will automatically shut down to protect  the vehicle.

4, No work noise.

5, Aluminum product,high-pressure plasma process Ti surface,high hardness,chemical composition and stability,anti-oxidation,amateur appearance.

6, A variety input and output mode:12v input,24input,220v AC output,110V output,fully able to meet domestic and foreign users of the exchange of electriccity demand.

7, With a USB charger.

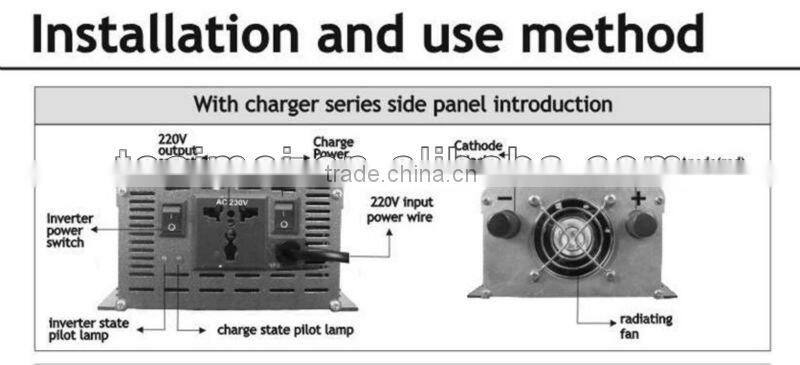

5.  User Manual of Power Inverter

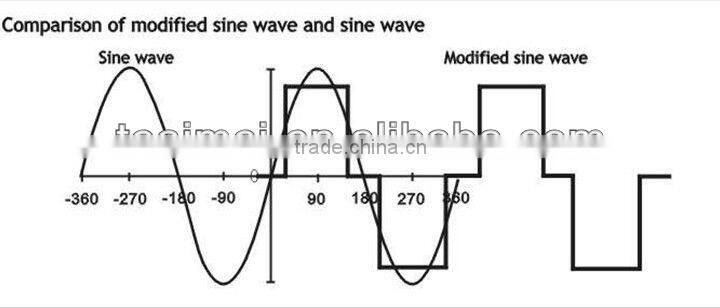

6. Wave form

7. Attention

Don't use them in the high temperature;keep the battery and charge for them

Don't overload the voltage;Don't use when the low voltage alarm is beginning

8. CE certificate

 9. Our factory:  Production Machinery:

10. Customer service
