Custom Membrane Switch Manufacturer

Name: Custom Membrane Switch Manufacturer
Price: Negotiable

FOB Price

Negotiable / Piece

500 Pieces(Min.Order)

Supply Ability 0 per Month
Port KEELONG
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Taiwan

Application:

Computer Keyboard

Keypad Button Material:

Other

Product Description

Membrane Switch Manufacturer

Technology-1

Printing – Die-cutting – Laser cut - Embossing
CCD control, digital/off-set printing, 3D forming.
Clean room facility, class 1000 and class 10,000
Tooling shop- Hard die, embossing die and fixtures.
SMT IR-reflow lines.
Quality equipments.

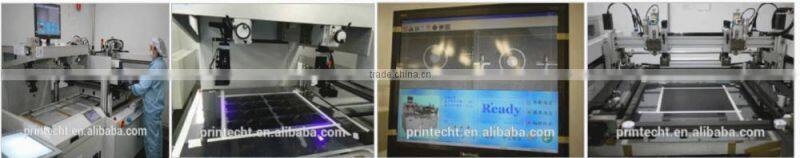

1. Silkscreen Printing

DIGITAL CONTROL SIMI-AUTO SCREEN PRINTING MACHINE – CL-4P6060

Silkscreeningsize: 1000x1500 mm.
Application: graphic overlays and flex ckt.
Substrate thickness: 0.05 to 10 mm
Pitch between trace to trace: 0.5 mm min.
Silkscreen with CCD for better registration.
Dryer by – ovens, IR-conveyer and UV.

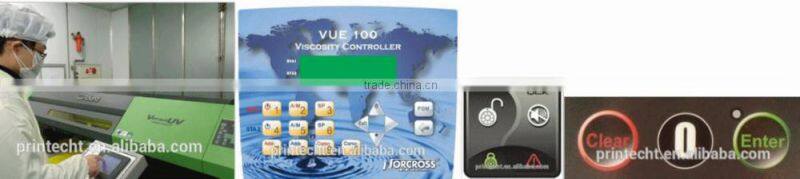

2. Digital Printing

Roland Versa UV LEC-330

Digital and offset printing capabilities.
Substrate flexibility- Leather, PET, PC, PU and other rigid material, except metal.
Up to 1 mm (0.04”) thick for a wide variety of applications.
Unique special effects – all on one device: High-density white, multi-layered printing, texture printing, matte finish, gloss finish.

Product Overviews-3

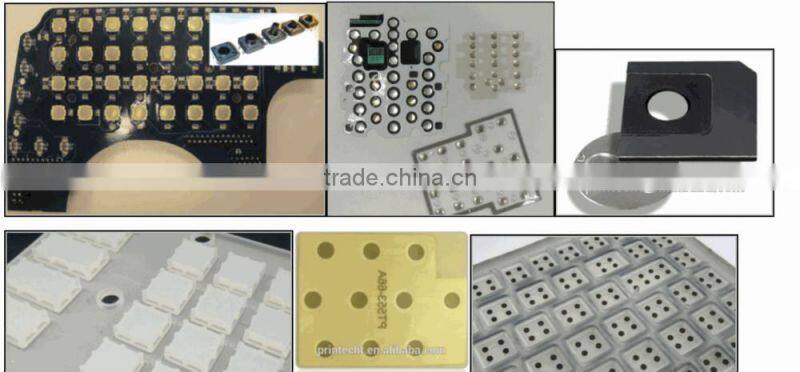

Actuators

KINDS OF ACTUATORS:

• Metal Dome Array

• Polyester Dome Array

• SRK

• Tact-Switch

• Membrane Shorting Pad

•Pushgate(Duraswitch)

Product Overviews-1

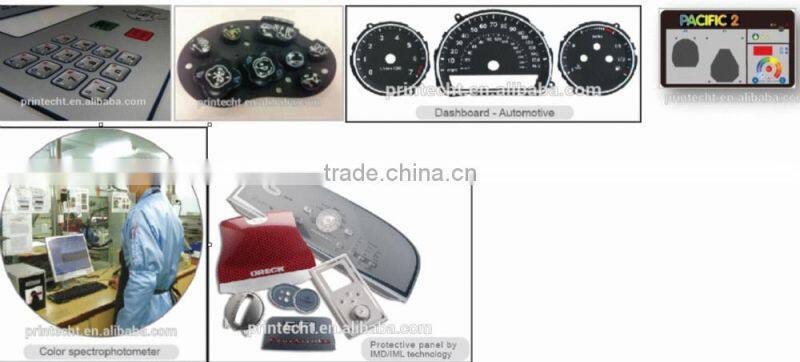

Overlays / Decals / Nameplates

Working fro initial product concept or from existing design prints, we can meet the most demanding specifications for both standards.

MATERIALS:

•Polyester (PET), Polycarbonate (PC), Polyuretane(PU) or Vinyl (PVC) films

• Silicon rubber (conductive or non-conductive)

• In-Mold Decoration (IMD)

• Plastic or Metal keycaps

• Glass or Acrylic (for Touch Sensors),…etc.

Quality Control

QUALITY CONTROL MANUAL

1. FORE WORD

The purpose of this manual being established is to describe the general functions of Quality Control Department. QC Dept. has to take the quality responsibility of purchased/consigned material and finished goods, which includes products working in process to ensure product’s quality & reliability. So that the material incoming quality, in process quality auditing and outgoing quality control will be the major functions of QC Dept. For each function, the system/inspection standard will be issued separately to accomplish the quality control/assurance with necessary records or reports pending on customer’s quality requirement. This manual is subject to be reviewed by manager of QC Dept. or his designated representative whenever it is necessary.

2. ORGANIZATION

2-1 Purpose: Sampling Plan

Quality Control Department is organized for the purpose of ensuring product quality and reliability consistent with customer’s requirements and maintaining a system of surveillance to enable performance of this function.

2-2 Responsibility

Quality Control Department consists of 3 groups. They are (1)Material incoming quality control (2) In-process quality control (3) Quality assurance. The responsibilities of each groups are defined.

2-2-1 Material Incoming Quality Control

(1) To perform new material evaluation and qualification.
(2)To perform incoming inspection of all direct and indirect materials.

2-2-2 In-process Quality Control

Whenever the material to be input to production line, the inspector of this group has to check/audit the quality in each major stations as material preparation, material thickness, shearing stabilizing, punching printing etc., with inspection standard to ensure right equipment conditions, proper operation, and good product quality.

2-2-3 Quality Assurance

(1) To ensure compliance of finished product with customer’s quality requirements. (2)To perform the outgoing inspection after packing to release for shipment. (3)To be responsible for acceptance planning (sampling place), data collection, analysis and reporting, corrective action and associated process control programs to ensure optimum control of quality through the whole production lines. (4)To review and analyze all quality related compliance and returns from customers. Responsibilities including determining failure mechanism, cause for failure, corrective action, recommendation and corrective action follow-up.


Silkscreen Printing	Punch Hole	Die-Cutting	Assy Line

3. INCOMING QUALITY CONTROL

3-1 General

(1)For the purpose of keeping incoming material and parts above the minimum acceptable quality level (AQL), all production material purchased or consigned for production will be subjected to inspection. And/or tasted by incoming quality control (IQC) inspection and test will be performed according to specified engineering drawings and specifications. (2)MRB (Material Review Board) is the committee to decide the disposition of the discrepant material found by IQC. (3)Waive of material should be granted by either the head of MRB or the person who are authorized to waive the lot of material. Waive procedure should be followed by all concerning persons.

3-2 Sampling plan

(1) According to ANSI ASQ Z1.4 -2008 STANDARD ,LEVEL II, SINGLE SAMPLING (2)Acceptable quality lever: Critical Defect: 0.4 % ; Major Defect : 0.65 % ; Minor Defect : 1.0 %

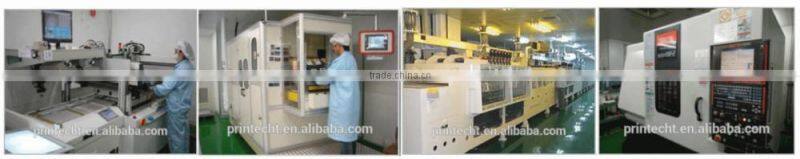

Heat Bonding	3D forming	SMT Process	CNC Process

4. IN-PROCESS QUALITY CONTROL

4-1 General:

(1)Purpose: To ensure that the working standard laid down by the engineering and quality dept are religiously followed so that defects may be prevented or detected early. This also enable corrective action to be taken in the earliest possible moment to counter the problems detected (2)Scope. All on-line gate inspection and in-process audit check belongs to in-process quality control. (3)Feedback quality information in time is the key point of in-process control. It can keep production flow with normal condition and minimum loss.

4-2 Sampling Plan:

(1) Lot: Usually 2 hour production quantity will form one lot, however it is fllexible on needed.

4-3 Work environment control:

PRINTEC created ESD rooms and clean rooms about ESD and cleanness control. (CLEAN ROOM :100,000 CLASS ; 10,000CLASS ; 1000 CLASS)


CLEAN ROOM	ESD ROOM	Package	Inspection

5. OUTGOING ACCEPTANCE INSPECTION
5-1 General
Though the controls of IQC, IPQC and production are to ensure the quality level of our products, it is indispensable for quality assurance to perform outgoing acceptance inspection to finished products prior to shipment. This is a prime QA function to control outgoing products at an acceptable quality level.
5-2 Sampling Plan
(1)According to ANSI ASQ Z1.4 -2008 STANDARD ,LEVEL II, SINGLE SAMPLING (2)Acceptable quality level: Critical Defect : 0.4% Major defect : 0.65% Minor defect : 1.0%
5-3 Shipment Control
Quality assurance issues "Shipment Release Notice" to production control to release the shipment based on the QA inspection result. QA people should personally audit outgoing of the shipment by checking lot number, quantities in accordance with QA inspection report.

Application

Dust, splash proof, backlit and full travel keyboard systems with meeting the levels of IP65.

Keyboards (full / short stroke, Membrane)
Control panels, HMI Interfaces
Control units
Electronic modules
Mechanical engineering

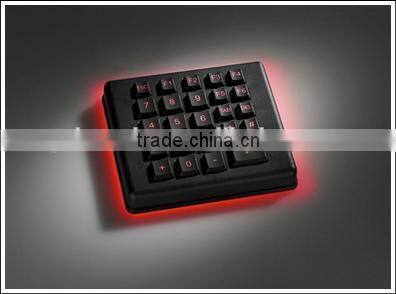

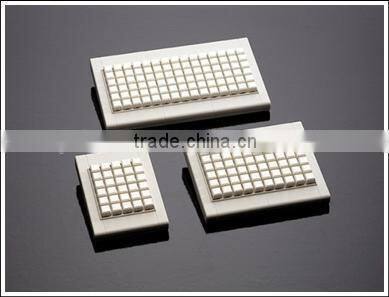

A. Plastic or Silicon Overlays Keyboards

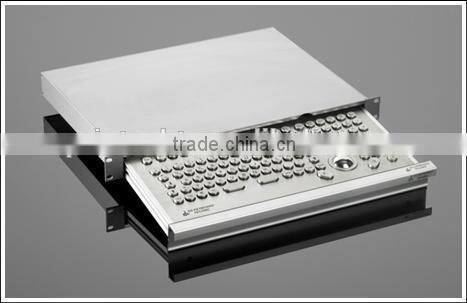

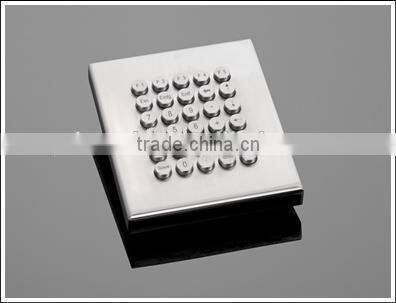

B. Stainless Steel Overlay Keyboards
