Reignmac Machinery woodworking machine

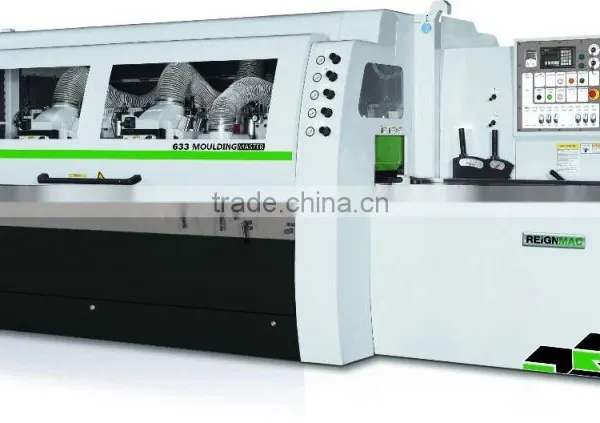

Heavy duty Four-Side moulder series M33( Max width 330mm)
Professional solution for Heavy-duty process as large type of wooden house beam and wooden batten.
φ50mm spindle, out-ball bearings for all horizontal spindles, strong cutting powerful-M33 heavy duty moulder series.

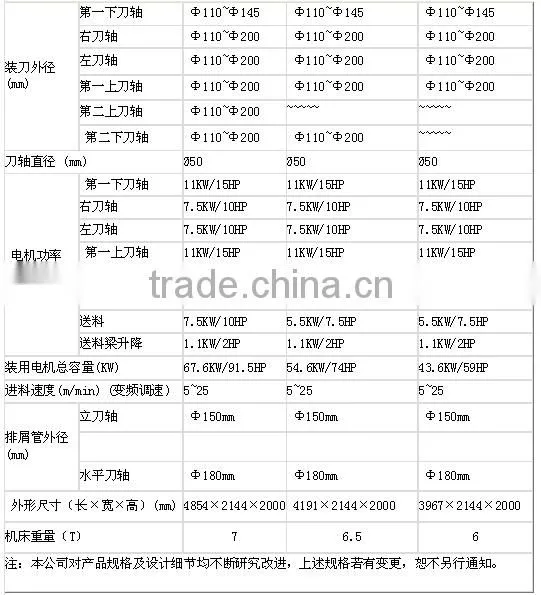

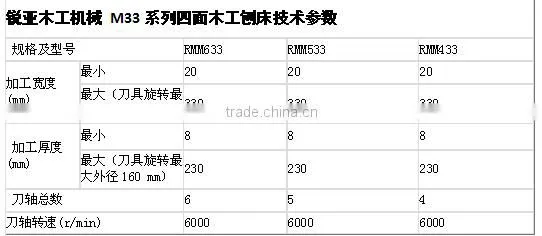

Parameter of M33 Series
Note: Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time.
1. Inverter to feed 5-25m/min
2. Individual motor power for each spindle to ensure maximum cutting power
3. Spindle diameter Φ50 and two pairs of high-precision and high-load support bearing are more suitable
for heavy-duty cutting.
4. Horizontal spindle is equipped with out bearing, suit for heavy-duty working of workpiece.
5.All adjustment of spindles is centralized in front of machine, to be convenient to operate.
6.High chromed work table for good durability.
7. The gear case is equipped , to be good for processing the short pieces.
8. A group of side pressure wheel on the right side of left spindle ,adjusted the pressure flexibly.
9. Pneumatic pressure loading to the front shoe of top spindle
10. Pneumatic pressure loading to the rear shoe of top spindle
11. First group of feeding roller and chainwheel box with pneumatic double- direction
adjustment for press and raise , you can make the workpiece feeding or back-feed.
12. Electronic positioning to top spindle and feed beam.
13. Pneumatic in-feed bottom helical roller is more suitable for large deformation
and high moisture of the wood to feed .
14. Multi-group bottom driving roller to improve the feed effect .
15. Adjustable out-feed side pressure plate can meet the different thickness
of material output steadily.
16. Pneumatic pressure loading to top feed rollers separately adjustable for easy of
feeding with variation in thickness.
17. Manual oil pump lubricates the work table and carriager , centralized lubrication is
easy to control .
18. Adopting electric compoments from international brand with steady quality.
19. Sealed safety enclosure is for the protection against noise and dust ,and it is helpful for the safe operation.
