Help CenterFour Side Moulder RMM423 Reignmac Moulder
Related Products
-
6 Spindle Four Sided Planer and MoulderNegotiableMOQ: 1 Set -
Woodworking Machine 4 Sided Moulder and PlannerNegotiableMOQ: 1 Set
-
Four Spindle Four Side Moulder and Planner M23 Furniture MachineNegotiableMOQ: 1 Set
-
Universal Spindle Moulder Machine Four Side Moulder /planer for Wood ProductsNegotiableMOQ: 1 Set
-
Foshan Machinery 7 Spindle Four Side Moulder / Four Sided Planer - ReignmacNegotiableMOQ: 1 Set

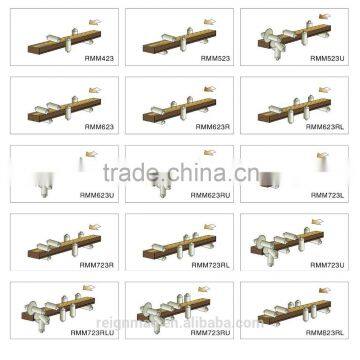

Specfication & type |
RMM623 |
RMM523 |
RMM423 |
RMM723U |
RMM623U | RMM523U | |
Working Width |
Min | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
| Max.(max. cutting circle of 130mm) | 230mm | 230mm | 230mm | 230mm | 230mm | 230mm | |
| Working Thickness | Min | 8mm | 8mm | 8mm | 8mm | 8mm | 8mm |
| Max.(max. cutting circle of 160mm) | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm | |
| Speed of spindles | 6000r/min | 6000r/min | 6000r/min | 6000r/min | 6000r/min | 6000r/min | |
| Spindle diameter | Ø40mm | Ø40mm | Ø40mm | Ø40mm | Ø40mm | Ø40mm | |
| Rotation angle for universal spindle | - | - | - | 360° | 360° | 360° | |
Note: Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time.
1.Inverter feed speed of 6~30m/min
2.Individual motor to each spindle to ensure maximum power transmission
3.High precision spindle units with two pairs of high precision bearings each end of the assembly
4.All main spindle adjustments are carried out from outside the enclosure
5.Hard chromed bed plates to minimise bed wear
6.Short piece driven top feed roller unit for greater feeding control around the right side spindle
7.A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.
8.As our standard, short pieces device with pneumatic double-direction( press and raise) , you can make the workpieces feeding or back in anytime.
9. Pneumatic in-feed bottom helical roller is more suitable for large deformation
and high moisture of the wood to feed .
10. Multi-group bottom driving roller to improve the feed effect .
11.Pneumatic pressure loading to top feed rollers separately adjustable, for easy of
feeding stock with variation in thickness
12. Adjustable out-feed side pressure plate can meet the different thickness of material
output steadily.
13.Manual bed lubrication to reduce friction and improve feeding difficult timbers
14.Adopting electric component from international class with steady quality
15.Sealed safety enclose to reduce noise levels, improve extraction and operator safety
16. 45m/min feed speed (optional) , manual straight jointer device , hight effect and hight quality .
