M18 Cable series DC 3-wire Flush Metal face inductive proximity sensor

Name: M18 Cable series DC 3-wire Flush Metal face inductive proximity sensor
Brand: Bedook
Availability: InStock

FOB Price

US$ 18 - 30 / Piece

3 Pieces(Min. Order)

Port Beijing
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	Bedook
Model Number	BFB-M1805N-V11P2.....	Usage	Position Sensor
Theory	Inductance Sensor	Output	Switching Transducer

Product Description

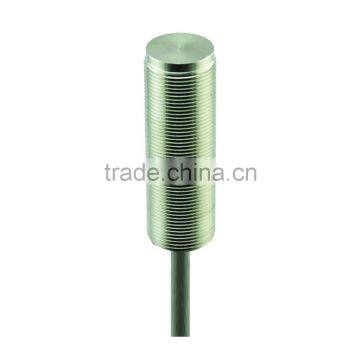

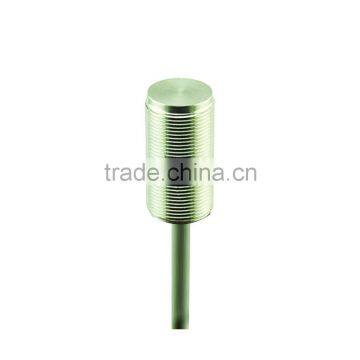

Bedook M18 Cable series DC 3-wire Flush Metal face inductive proximity sensor

Warmly celebrate :Bedook MVDC sensor , the only Chinese sensor successfully passed the overall perfermance test provided by German authoritative enterprise.

Product Description

Features:

M18, Metal cylindrical housing with thread;

5/8mm, flush mountable;

DC 3-wire, switching output;

Cable & connector versions;

Model No.:

SN= 5mm	Standard body	Short body
DC 3-wire 10-30V NPN N.O.	BFB-M1805N-V11P2	BFB-M1805N-V11P2-S
DC 3-wire 10-30V NPN N.C.	BFB-M1805N-V21P2	BFB-M1805N-V21P2-S
DC 3-wire 10-30V PNP N.O.	BFB-M1805P-V11P2	BFB-M1805P-V11P2-S
DC 3-wire 10-30V PNP N.C.	BFB-M1805P-V21P2	BFB-M1805P-V21P2-S
SN= 8mm
DC 3-wire 10-30V PNP N.O.	BFB-M1808N-V11P2	BFB-M1808N-V11P2-S
DC 3-wire 10-30V PNP N.C.	BFB-M1808N-V21P2	BFB-M1808N-V21P2-S
DC 3-wire 10-30V NPN N.O.	BFB-M1808P-V11P2	BFB-M1808P-V11P2-S
DC 3-wire 10-30V NPN N.C.	BFB-M1808P-V21P2	BFB-M1808P-V21P2-S

Total: 16 Models

Welcome phone / mail / skype: Haven.yang to inquire, We are pleased to serve you in 24 hours, your company based on actual demand conditions, tailored to your personalized & right sensor.

Technical data:

Electrical data	Operating voltage	10-30V DC
	Switching frequency	1000Hz
	Voltage drop	<1.5VDC
	Repeatability	<1.0% Sr
	Hysteresis	<15% Sr

Environment	Ambient temperature	-25....70 Celsius
	Ingress protection	IP67

Mechanical data	Housing Material	Stainless steel
	Face Material	Stainless steel
	Connectors	PVC cable/ 2m; 3*0.34mm²

Displays/operating	Indicator	Yellow LED

Accessories	Accessories (to be ordered separately)	This and more accessories can be found in chapter 5

Packaging & Shipping

Packing:

Standard export cartons with our LOGO:
11*8.5*5.5 cm/ 30*23*8cm/ 30*28*35cm/ 60*30*35cm

Shipping:

1. Delivery time: 3-4 weeks after this contract is confirmed and finalized.

2. DHL Economy Express is our recommendation for saving client's cost.
3. If there is your preferred shipping method, please just contact us or tell us your express info. In addition an agreement of CNY 200 is required according to other international carriers.
4. We provide 70% discount for shipping cost. Some Countries or particular remote areas,the shipping cost need to be discussed. Some Countries like Russian Federation, DHL, UPS and FEDEX is not available, EMS is the only shipping method.

Our Services

Payment:

1. Full payment must be made within 10 days of placing your order in the first three orders.

2. The buyer is responsible for any tax and/or duty charged by their country.

3. Since you made the payment successfully, you can send us the Reference NO or bank paper.

Insurance:

Buyers are responsible for any insurance they feel is required.

Service:

Pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical R&D team and Double quality Testing one by one, providing technical support, complete and spotless quality guarantee

How to order? :)

Step	1->	2->	3->	4->	5. order sending & get the tracking	6. After-sale tracking
Customers:	Send a inquiry	Confirm the specification	Confirm the quotation & send PO	Arrange payment / deposit
Bedook :	Counter offer	Recommend suitable sensors & Quotation	Send the order confirmation / PI	Arrange to producing & update cargo news in time

Warranty period:12 months after shipment.

1. If the product you purchase from our company itself has the quality question, please notify us within 3 days of delivery and provide Bedook type no.,photo, assembly Ref.& invoice. We will exchanges the goods processing with unconditional to customer.

2. During the warranty time, if the products have any quality problems, we'll afford the repairing/ exchanging costs.

3. Any items must be returned in their original condition to qualify for a refund or replacement.

4. The buyer is responsible for all the return shipping cost incurred.

We are responsible for all the goods from us. If you have any questions about the goods, you can contact us freely in any time.
