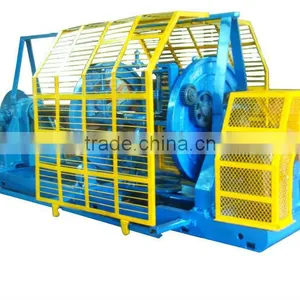

Turning Spindle Rope Making Machine
- 100 Piece / Pieces per Month
- Zhanjiang
- T/T
You May Like
-
Rope Making Machine for Sugar Cane Binding
-
WEIJIN Rope Making Machine for Sugar Cane Binding
-
WEIJIN Constant ingot rope machine(worm gear box the rope)
-
sisal rope making machine constant ingot rope machine
-
constant ingot rope machine(worm gear box the rope)
-
rope making machine straw rope making machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | Weijin | |
| Condition | New |
nude packing or as per your requirement
Product Description
Specifications
This machine is used to make ropeSpecifications
It consist of cradle, shaft assy profeller, rope making worm-gear case, discharging outfit, ejecting post, safety hood.
Description
Turning spindle rope making machine is high-speed equipment with compact structure, high efficiency, convenient operation, beautiful shape, high rope making quality and convenient maintenance. It consists of frame, shaft assy profeller, rope making worm-gear case, discharging outfit, ejecting post and safety hood. When , the frame which bearing strand plate, not only working with main shaft, but also do the self-rotating movement, so we call it as Turning Spindle Rope Making Machine.
Technical Data
| Item | Type | rope Size(mm) | Power (kw) | Output(m/min) |
| NO.5 Three Plies Turning Spindle rope Making Machine | 5SZ3 | 8-14 | 3 | 4-10 |
| NO.5 Four Plies Turning Spindle rope Making Machine | 5SZ4 | 8-14 | 3 | 4-10 |
| NO.4 Three Plies Turning Spindle rope Making Machine | 4SZ3 | 14-22 | 4 | 5-10 |
| NO.4 Four Plies Turning Spindle rope Making Machine | 4SZ4 | 14-22 | 4 | 5-10 |
| NO.3 Three Plies Turning Spindle rope Making Machine | 3SZ3 | 24-32 | 5.5 | 8-12 |
| NO.3 Four Plies Turning Spindle rope Making Machine | 3SZ4 | 24-32 | 5.5 | 8-12 |
| NO.2 Three Plies Turning Spindle rope Making Machine | 2SZ3 | 34-44 | 5.5 | 10-15 |
| NO.2 Four Plies Turning Spindle rope Making Machine | 2SZ4 | 34-44 | 5.5 | 10-15 |
| NO.1 Three Plies Turning Spindle rope Making Machine | 1SZ3 | 48-64 | 11 | 8-12 |
| NO.1 Six Plies Turning Spindle Rope Making Machine | 1SZ6 | 48-64 | 15 | 8-12 |
