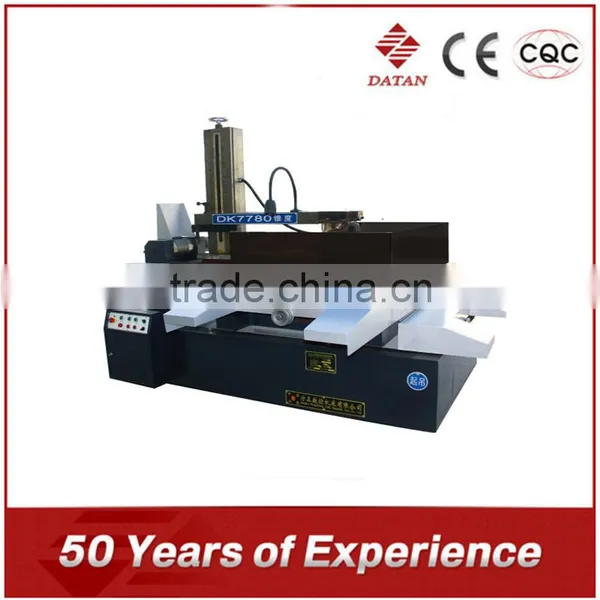

High Precision CNC Wire Cutting EDM

High Precision CNC Wire Cutting EDM thumbnail-1
High Precision CNC Wire Cutting EDM thumbnail-2
High Precision CNC Wire Cutting EDM thumbnail-3
High Precision CNC Wire Cutting EDM thumbnail-4
High Precision CNC Wire Cutting EDM thumbnail-5
High Precision CNC Wire Cutting EDM thumbnail-6
High Precision CNC Wire Cutting EDM photo-1

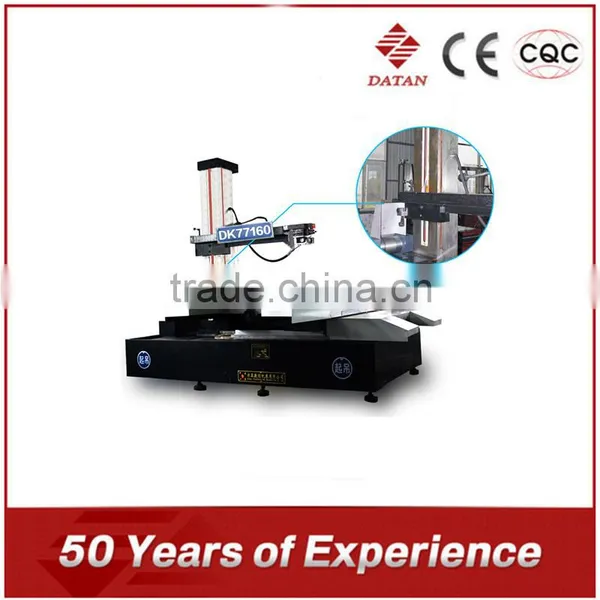

High Precision CNC Wire Cutting EDM photo-2

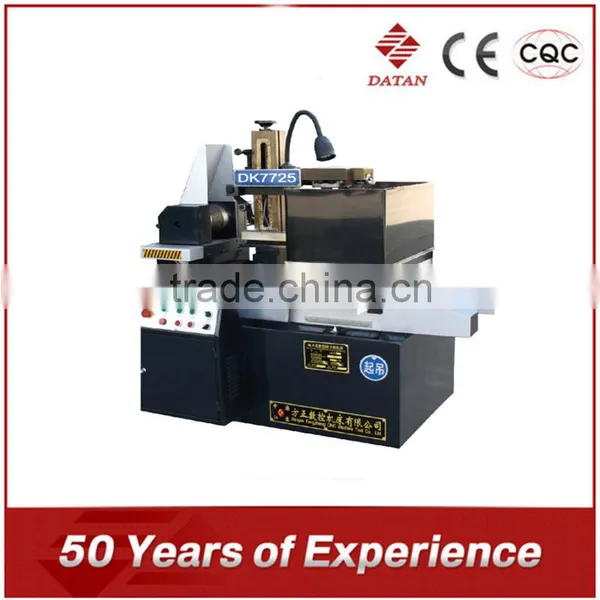

High Precision CNC Wire Cutting EDM photo-3

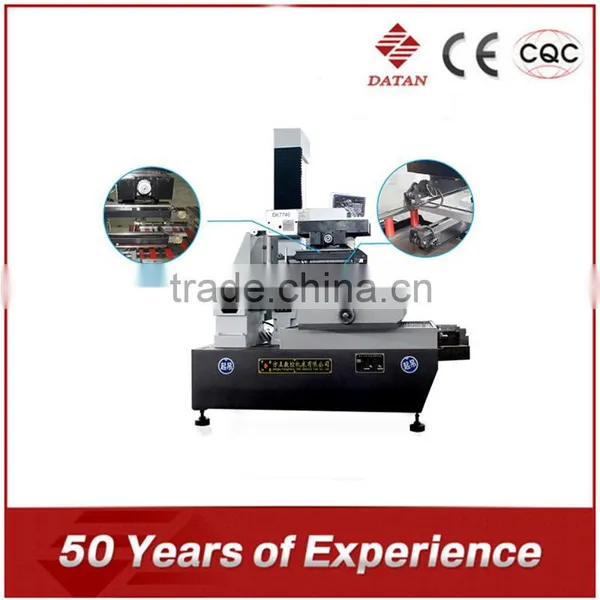

High Precision CNC Wire Cutting EDM photo-4
High Precision CNC Wire Cutting EDM photo-5
High Precision CNC Wire Cutting EDM photo-6
US$ 4,000 - 4,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Hangzhou Datian CNC Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Zhejiang, China
Brand Name DATAN
Model Number DK
Voltage 380V/220V
Power(W) 1kw
Dimension(L*W*H) 1400*1060*1500(mm)
Weight 1300kg
Certification ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas



Machine Description

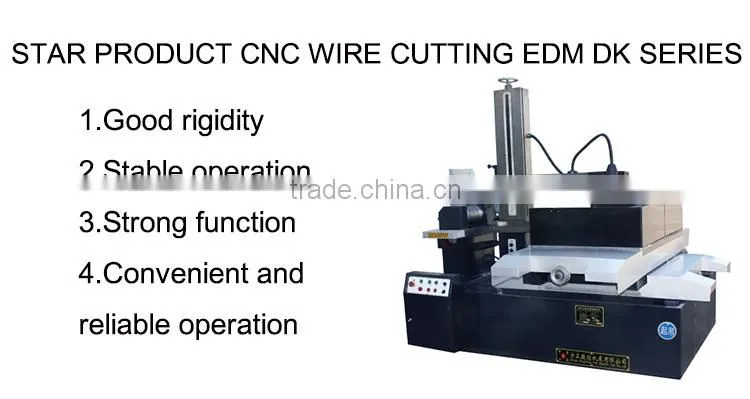

High precision CNC wire cutting EDM

High precision CNC wire cutting EDM

Machine parameter





 Model number DK7720 DK7725 DK7732(35) DK7740(45) DK7740J DK7750
Worktable size(mm) 490*380 580*400 700*440 780*540 1000*540 1000*650
Worktable travel (mm) 250*200 320*250 400*320 500*400 630*400 630*500
Wire rack width(mm) 350 350 400 400 400 600
Taper(°/80mm) 6° 6° 6° 15 6°15°30° 6°15°30° 6°15°30°
Max. cutting speed(mm²/min) ≥90( High speed≥140)
Surface roughness(μm) Ra≤2.5(WEDM-MS≤1.0)
Wire electrode diameter(mm) 0.10-0.20
Wire running speed(m/s) 11.5
Dielectric conlant Reservoir capacity

Wire cutting special working fluid(DX-1.DX-4.nanguang-1)
Power supply 50HZ.380V(50HZ.220V)
Max.table carry(kg) 200 250 300 450 450 700
Net wt.of machine Body(kg) 800 900 1200 1350 1400 2100
Outside dimension of machine (m) 1.2*0.9*1.3 1.3*1.2*1.4 1.3*1.2*1.4 1.3*1.2*1.4 1.6*1.3*1.5 1.8*1.6*1.7
Machine tool package size(m) 1.3*0.9*1.4 1.4*0.9*1.5 1.6*1.3*1.7 1.9*1.4*1.8 1.9*1.6*2.1 1.9*1.6*2.1

                                                                                               Table 1

 Model number DK7750J DK7763 DK7763J DK7780 DK7780J DK77100
Worktable size(mm) 1140*650 1140*750 1350*750 1350*980 1650*990 1650*1150
Worktable travel (mm) 800*500 800*630 1000*630 1000*800 1200*800 1200*1000
Wire rack width(mm) 600 600 600 800 800 800
Taper(°/80mm) 6°15°30° 6°15°30° 6°15°30° 6°15°30° 6°15°30° 6°15°30°
Max. cutting speed(mm²/min) ≥90(High speed≥140)
Surface roughness(μm) Ra≤2.5(WEDM-MS≤1.0)
Wire electrode diameter(mm) 0.10-0.20
Wire running speed(m/s) 11.5
Dielectric conlant Reservoir capacity

Wire cutting special working fluid(DX-1.DX-4.nanguang-1)
Power supply 50HZ.380V(50HZ.220V)
Max.table carry(kg) 700 1000 1000 2000 2000 2600
Net wt.of machine Body(kg) 2300 3000 3300 4000 4500 5200
Outside dimension of machine (m) 1.8*1.6*1.7 2.1*1.8*1.8 2.1*1.8*1.8 2.6*2.4*2.0 2.6*2.4*2.0 3.0*2.8*2.5
Machine tool package size(m) 1.9*1.6*2.1 2.3*1.8*2.1 2.3*1.8*2.1 3.0*2.4*2.2 3.0*2.4*2.2 1.2*0.9*1.4

                                                                                                Table 2

 Model number DK77100J DK77120J DK77150 DK77160 DK77160J
Worktable size(mm) 1900*1150 2000*1300 2500*1600 2450*1780 2960*1780
Worktable travel (mm) 1400*1000 1600*1200 1800*1500 2000*1600 2500*1600
Wire rack width(mm) 800 1000 1000 1000 1000
Taper(°/80mm) 6°15°30° 6°15°30° 6°15°30° 6°15°30° 6°15°30°
Max. cutting speed(mm²/min) ≥90( High speed≥140)
Surface roughness(μm) Ra≤2.5(WEDM-MS≤1.0)
Wire electrode diameter(mm) 0.10-0.20
Wire running speed(m/s) 11.5
Dielectric conlant Reservoir capacity

Wire cutting special working fluid(DX-1.DX-4.nanguang-1)
Power supply 50HZ.380V(50HZ.220V)
Max.table carry(kg) 2600 4500 5000 10000 10000
Net wt.of machine Body(kg) 5800 85000 11000 14000 14500
Outside dimension of machine (m) 3.0*2.8*2.5 3.2*3.0*2.6 4.4*4.4*2.8 5.3*4.8*3.0 5.8*4.8*3.0
Machine tool package size(m) 3.4*3.1*2.9 3.6*3.4*3.0 4.8*4.6*3.0

                                                                                            Table 3

Samples show

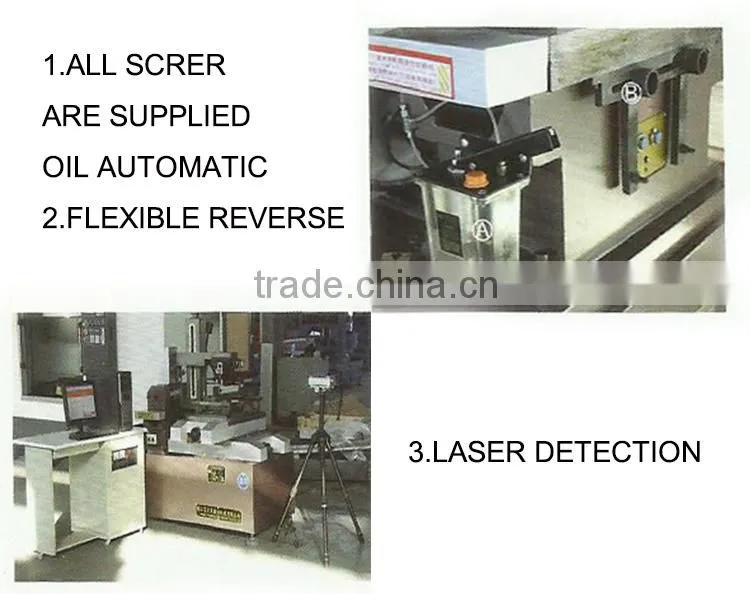

 High precision CNC wire cutting EDM



Some details can be changed according to your demands. If you are interested or in need of these machines, please kindly send emails to me and I will offer you details as soon as possible.

Best Wishes,
Leo

Advantages



1)Clean and Nice, Operation Security
Adopt new full closed cover,whose structure is much more simple and nice than the traditional separated machine .Meanwhile, the wire structure and the thread stand become one ,which is better to make the wire route closed ,so there's no cutting fluid splashing on the machine body,as a result ,the machine can keep clean for long time ,easier to clean.


2)Creative invention, durable in use
The bearing pedestal installing wire reel ,base and machine body are rigidly connected, the wire drum doesn't move right and left ,only does front and back , the movement of thread stand right and left makes the wire stretch out and draw back,which makes the weight of the moving parts recuse to 1% of the traditional,lowers the vibration when machine works and the attrition between Transmission parts ,as a result ,highers the stability of the machine.


3)Section cutting, guaranteeing the accuracy
The wire consumption mainly focuses on the large current and big pulse width of the rough process ,the consumption in Semi-finishing process is 1/3 of the rough process ,while ,in precise process,it is below 0.001mm.During section cutting process ,machine works for a long time , its wire surface in the precise process still can keep its roughness well and circle degree.Thus,this machine makes up the defect that the accuracy and surface roughness of the workpiece are lowered when the wire of the traditional medium speed machine works for a long time , our machine working effect can compare favourably with the cnc slow speed wire cutting EDM .


4)Easy operation
The Position of the operator and the wire drum changes from the vertical to the parallel, so ,it's much more convenient to thread wire and don’t need to move to the left of the machine to fix the wire .


5)Automatic tightening wire, improved effect
The machine is installed Constant tension mechanism, so the wire tension stays the same during the whole process and don't need to tighten wire manually as the traditional.

High precision CNC wire cutting EDM

High precision CNC wire cutting EDM

High precision CNC wire cutting EDM



FAQ



A.Confirm the purchase

1.Sign the contract

After the business contract signed standards,When receive your 30% deposit from the company, contract comes into force,Your order will be made by your business manager and engineer the entire tracking for you.

2.Arrange production

The sales manager to fax receiving your sign a good contract,Start the system production process for production.Cnc milling machine is usually within 15 days, vertical cnc machining center is within 25 days, gantry type machining center is within 45 days, if you need to add special configuration, the delivery time will be postponed.

3.The delivery

Production is completed in the process of delivery,Before the start,According to the industry standard,The remaining 70% balance need to receive you,It is recommended that you buy wooden frame outer packing,Prevent damage produced in the process ofcollision.

4. Check the acceptance

  •        keep your phone open,Convenient to contact you forwarder company,Receive machine,please check:
  •        If the outer packing damage, leakage erc, and if the goods damaged;
  •        Check the packing list,the product literature and warranty cards if they is integrity;
  •        Examine the content of the packing list,the product quantity to both consistent,and accessories;
  •        Machine details if they are normal, If have the trace of replacement and maintenance, If have other effects use of the problem.

B.Training and maintenance

1.In order to you more efficiency for production,At the end of the contract is signed,You can send someone to my company for professional CNC programming and operation training.



2.Warranty is 12 months which begins from the day when the machine has arrived at the importer’s port.

If the device can 't work normally,My company after received your notice, within 24 hours,We will send engineers to your factory for processing,If it is artificial damage,The Need to charge a cost.Warranty expires,Machine tools are still support maintenance.



3.Each machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought.
