Home > Products > Valve Manifolds > Stainless Steel Bleed Valve Manufacturer
Stainless Steel Bleed Valve Manufacturer
US$ 1 - 50
/ Piece
1 Piece(Min. Order)
- shanghai port
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Other, needle valve | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Medium Temperature | |
| Media | Other, gas&liquid | Port Size | 1/4''-2'' | |
| Place of Origin | Jiangsu, China | Brand Name | TF-LOK |
Product Description
Specifications
1.stainless steel bleed valve2.Instrument needle valve
ing pressures up to 10000 psig

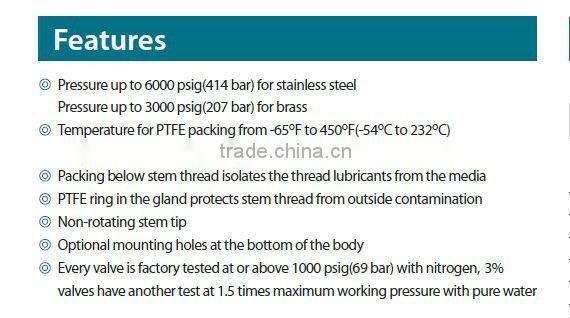

High pressure bleed valve
1.Working pressures up to 6000 psig (413 bar)
2.Temperatures from 65 to 450°F (53 to 232°C) with PTFE packing;
3.up to 1200°F (648°C) with Grafoil® packing
4. stainless steel; alloys and C-276; and titanium materials
5.Packing below stem threads
6.Soft seat
7.Standard soft-seat tip term (Non-rotating)
8.OEM accepted
2.Temperatures from 65 to 450°F (53 to 232°C) with PTFE packing;
3.up to 1200°F (648°C) with Grafoil® packing
4. stainless steel; alloys and C-276; and titanium materials
5.Packing below stem threads
6.Soft seat
7.Standard soft-seat tip term (Non-rotating)
8.OEM accepted
Parameter:
Name | high pressure bleed valve |
Structure | needle |
Material | Stainless steel |
Port size | 1/8"-2" or DN15-DN100 |
Brand name | TF or OEM |
Pressure | High prussure |
Certificate | ISO9001:2008 and TS |
Package | Carton or wood case |
Origin | Jiangsu .China |
Pictures:
we can do follow sample or drawing, even have special request.OEM offered.
