Specifications
Type: Waterproof Roll MaterialMaterial: PP+Breathable Membrane+PP

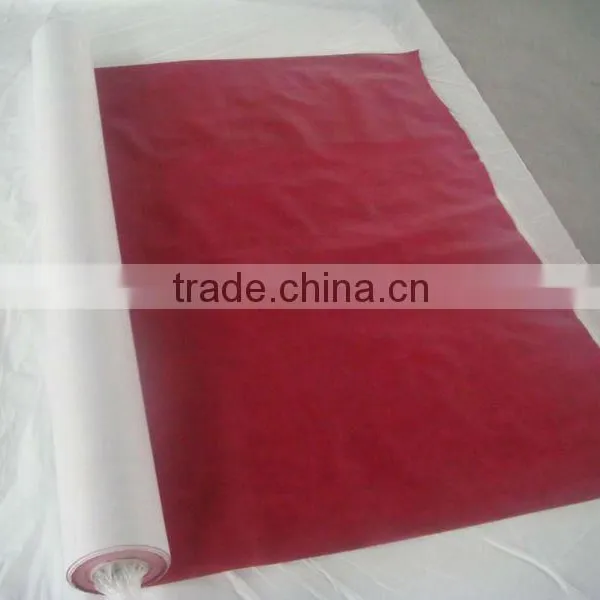

1. 3 layer breathable membrane(thermal laminated by non woven PP + waterproof and vapour permeable membrane + non woven PP).
breathable membrane paving on the top of the insulation system, it can strengthen the water tightness of the building, as well as to eliminate humidity inside the containment by the unique breathability, thus to retain the duration of building effectively, playing a part in thermal insulation, energy conservation and living environmental improvement.
2. Specification
Weight: 90, 100, 115, 120, 135, 140, 160 and so on.
Width: 1.5M
Length: 50M or jumbo roll
3. Products characteristics and function
breathable membrane has excellent performance at water resistance, high vapour permeability, Good performance at UV resistance and 100% recyclable polymer materials, fit the ecologist requirements.
Water tightness of breathable membrane: Thanks to the prominent waterproof performance, breathable membrane can wrap building tightly, protect the building from corrosion of water vapour and rain, guarantee good insulation performance and well durability of building enable the building to be more energy conservation and environmental protection.
Permeability of breathable membrane: breathable membrane paves outside of the insulation system, enable the water vapour inside the insulation system to exhaust, solve the condensation problem, protect the insulation system.
Reduce construction cost: breathable membrane can protect the insulation system, saving the fine concrete or the film waterproofing materials which regularly paved on top of insulation system so that to reduce the construction cost.
4. Application
Mainly used as underlay for pitched roof and enclosur protection for insulating layer of walls
5. Quality control
We pay high attention to the quality of products, advanced production equipments, perfect detection means, powerful ability on technical research and management formed the preeminent quality.
6. R&D
breathable membrane thermal laminating from 100% returnable polymer material by the advanced technology, we own independent intellectual property which enable us to be the only company in China who scale produce membrane by this technology.
| Technical data | Testing Standard | Unit | Specifications | ||||
| M90 | M100 | M120 | M140 | MF160 | |||
| Weight per unit area | EN1849 | G/M2 | 9 0 ± 10% | 100 ± 10% | 120 ± 10% | 140 ± 10% | 160 ± 10% |
| Width | EN1848 | M | 1.5(-0.5%, +1.5%) | ||||
| Resistance to Water penetration |
EN1928-2000 | W1 | W1 | W1 | W1 | W1 | |
| Water vapour transmission |
EN1931 | G/M2.24h | 2250 | 2250 | 2250 | 2250 | 2250 |
| Tensile strength(CD) | EN12311-1 | N/50MM | 75 ± 15% | 100 ± 15% | 120 ± 15% | 150 ± 15% | 170 ± 15% |
| Tensile strength(MD) | EN12311-1 | N/50MM | 115 ± 15% | 150 ± 15% | 180 ± 15% | 200 ± 15% | 230 ± 15% |
| Tearing strength(CD) | EN12310-1 | N | 45 ± 15% | 60 ± 15% | 80 ± 15% | 90 ± 15% | 90 ± 15% |
| Tearing strength(MD) | EN12310-1 | N | 55 ± 15% | 7 0 ± 15% | 9 0 ± 15% | 100 ± 15% | 100 ± 15% |
| Reaction to fire | EN13501-1: 2002 EN11925-2 |
- | - | - | - | - | E |
| UV resistance | EN13859-1 | Month | 3 | 3 | 3 | 3 | 3 |
| Properties alternation after artificial aging | |||||||
| Resistance to Water penetration |
EN13859-1 | W1 | W1 | W1 | W1 | W1 | |
| Tensile strength MD/CD | EN13859-1 | % | -30%/-30% | ||||
