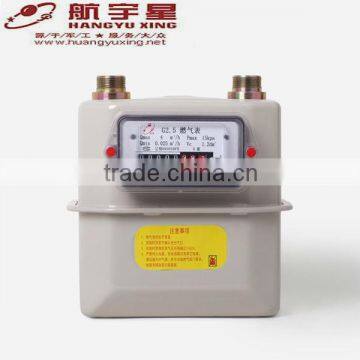

G2.5 Steel Case Residential Diaphragm Gas Meter

FOB Price

USD $15 - $20 / Set

100 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	Hangyuxing
Model Number	G2.5

1. Quick Review:

Customization Availability:	Yes	Brand:	Hangyuxing
Model:	2.5	Category:	Diaphragm Gas Meter
Nominal Flow:	2.5(m3/h)	Max.Flow:	4(m3/h)
Min Flow:	0.025(m3/h)	Inlet-Outlet Spacing:	130(mm)

2. Technical Features:

1. Independent core with high sensitivity and accuracy.

2. Integrated and compact design, ease of installation and maintanence.

3. Made from high quality materials.

4. Anti-reverse mechanism

5. Special process treated to ensure gas tightness, safety, corrosive resistance performance and longer life.

6. Use Imported diaphragms to ensure the quality of products.

7. All parameters meet the OIML R31 standard.

3. Technical Parameters:

Technical Parameters		Unit	Model
Technical Parameters		Unit	G1.6	G2.5	G4.0
Accuracy Level		--	Class B	Class B	Class B
Cyclic Volume(Vc)		dm3	1.2	1.2	1.2
Nominal Flow(Qn)		m3/h	1.6	2.5	4
Max.Flow(Q max)		m3/h	2.5	4	6
Min.Flow(Q min)		m3/h	0.016	0.025	0.04
Total Pressure Loss		Pa	≤200Pa	≤200Pa	≤200Pa
Sealing Pressure		Kpa	30	30	30
Max.Working Pressure		Kpa	15	15	15
Metering Error	Qmin<Q<0.1Qmax	%	±3.0	±3.0	±3.0
Metering Error	0.1Qmax≤Q≤Qmax	%	± 1.5	± 1.5	± 1.5
Min.Reading		m3	0.001	0.001	0.001
Max.Reading		m3	9999.999	9999.999	9999.999
Working Temperature		°C	-20 - +50	-20 - +50	- 20 - +50
Working Life		Year	12	12	12
Size(L X W X H)		mm	210x165x225	210x165x225	210x165x225
Thread Size		mm	M30x2	M30x2	M30x2
Inlet-Outlet Space		mm	130	130	130
Weight		Kg	2.3	2.3	2.3
Application		Synthetic Gas,Methane,Natural Gas,LPG
