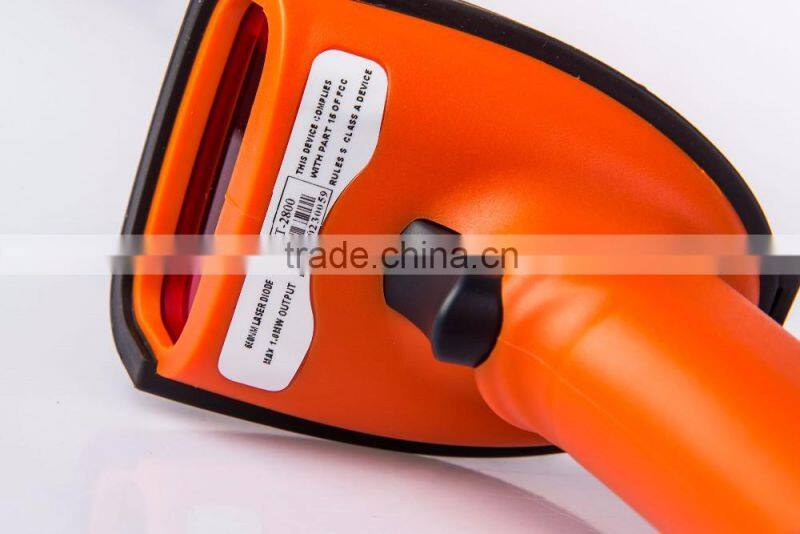

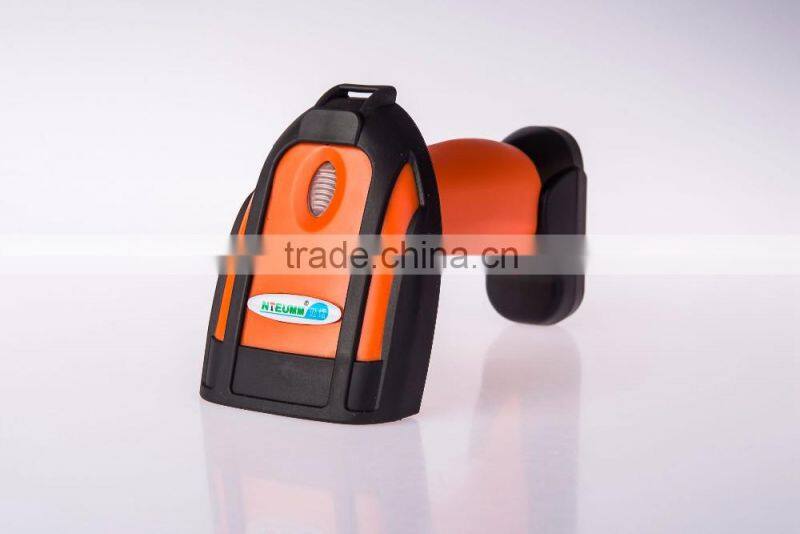

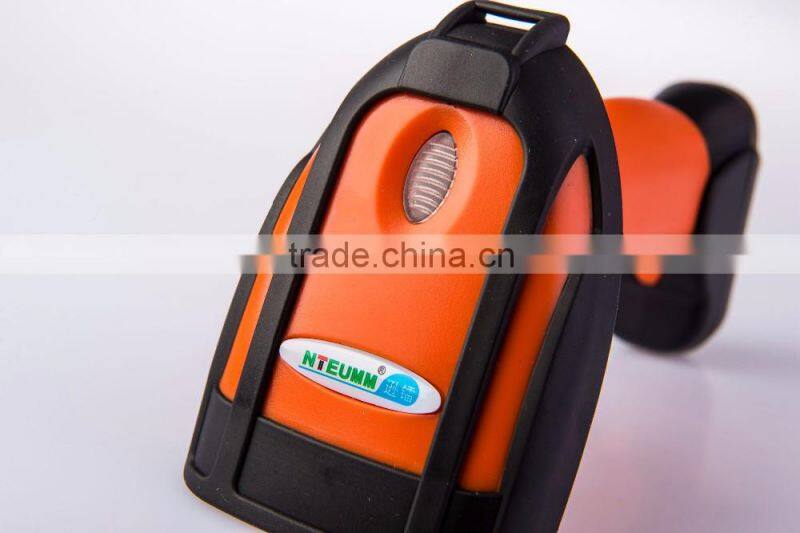

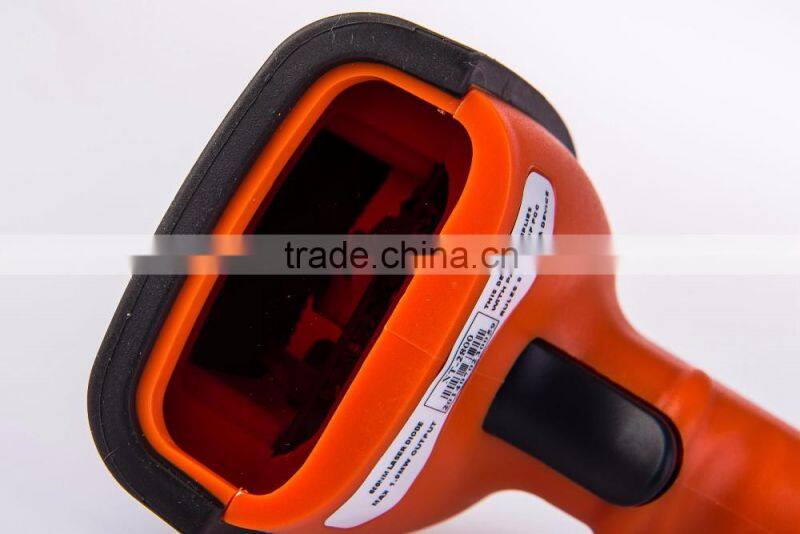

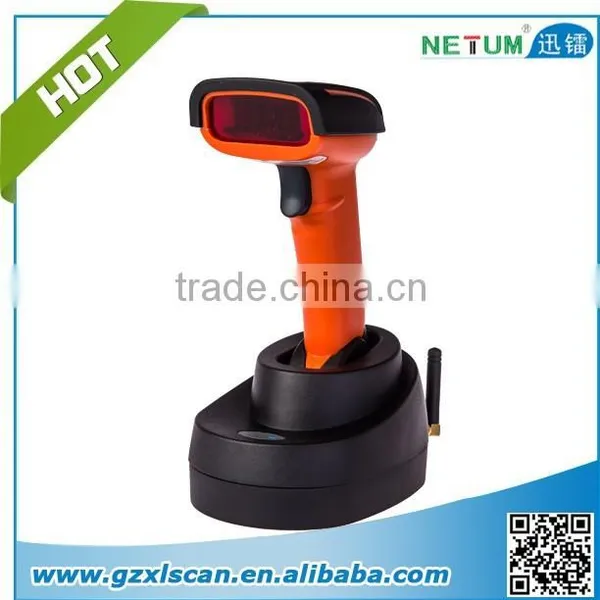

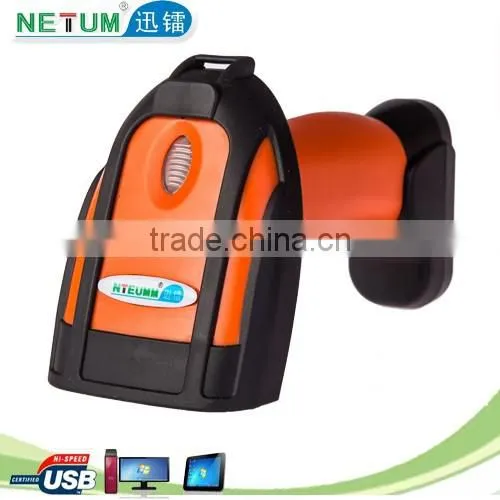

NT-2800 Wireless Handheld Laser Barcode Scanner With Memory
Specifications:
Symbologies: 1D codes
Depth of field: 10-800mm
Resolution: 0.076mm (3 mil)
Memory: 4M; Max.100000 codes; can be extended to 8M
Communication Distance: 300-500m
Decode Speed:150 times/ sec.
Bite Error Rate: 1/5 million
Battery: Li-battery, last 6 hours after full charged
Features:
1. Multi-line rastering Eliminates the need for exact aim and positioning for superior scanning accuracy
2. Remote scanner management (RSM) ready Discover, provision and upgrade devices from a central remote location; dramatically reduces management effort and costs
3. Long life industrial charging contacts Reliable performance, rated to 250,000+ insertions.
4. Wide working range Reads good and poor quality bar codes at similar ranges, reducing the need for the user to move the scanner back and forth
5. Superior motion tolerance Eliminates the need to pause between scans
6. Withstands 5 ft./1.5 m drops to concrete Protects against downtime from breakage due to everyday drops
7. Powered through host cable Eliminates need for a power supply; simplifies installation.
8. Plug-and-play universal cable Rapid deployment; single cable connects to any computing environment
9. Multi point-to-point Use up to three scanners with a single cradle, reducing capital expenditures and maintenance costs
10. Batch mode operation Increases application design flexibility to better meet your specific needs.
11. Vertical or horizontal mounting
Parameters:
Light Source |
650nnm laser(safe visible light) |
Operating Channel |
433MHz|SM |
Communication range |
150m indoor,300m outdoor |
2Operation |
Manual or Automatic |
Precision |
≥3 mil ( 0.076mm ) |
Depth of Scan Field |
10-800mm |
Decode speed |
200 times/second |
Decode Error Rate |
Less than 1/8 million |
Interface |
USB |
Print Contrast Signal |
>30° |
Scan Angle |
Yaw(Skew)45’& Pitch60′ |
Light Intensity |
Daylight, 4000Lux Max |
Supported Symbologies |
Code 39,Full ASC 2,Code bar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,Code 93,Code 128,Code 32,Standard code 39,EAN 128,MSI,EAN 8&13,UPCA&E,Plessey,Databar14,TELEPE |
Voltage |
DC 5V |
Current |
Operation 68mA;Idle 48mA |
Scanner Materials |
ABS+RUBBER, Eco-friendly |
Operating humidity |
5%-85% |
Storage humidity |
5%-85% |
Operating temperature |
-20°C-45°C |
Storage temperature |
-20°C-45°C |
Safety performance |
ROHS class 2 laser product, FCC class B and CE |
Product Overviews
Applicable Scope:
- Comerical POS system(supermarket,store,shop,mall)
- Warehousing andlodistics
- Libraries
- Banks and Telecom
- Transportation
- Postal service
- Industrial and manufacturing management
Packing and Shipping:

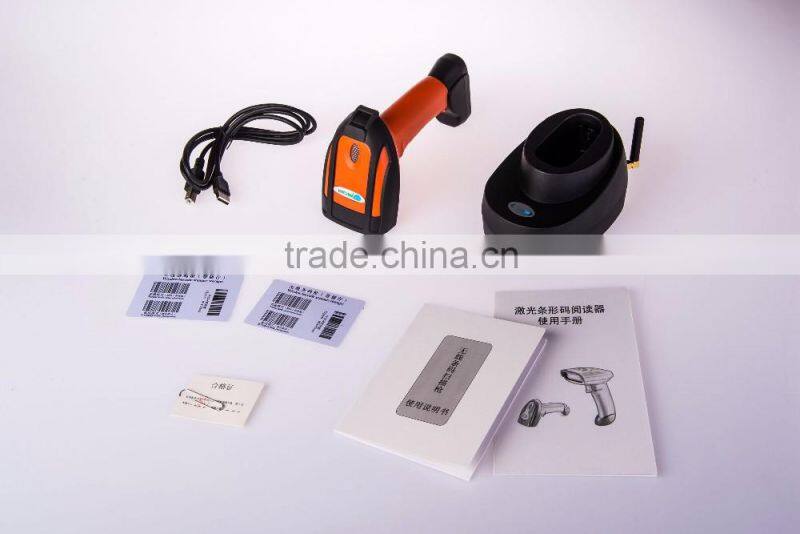

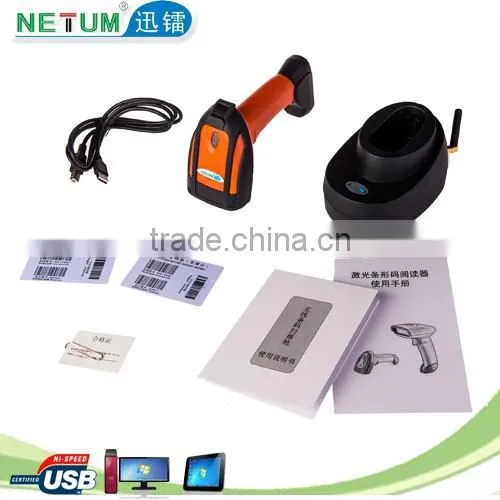

Packing List
| User's manual *1 |
Barcode scanner *1 |
| Cable(RS232/USB/PS2) *1 |
| Cradle(optional) *1 |
Packing Details
| Items per Carton: | 50 Pieces / Carton |
| Package Measurements: | 60X45X42 CM |
| Gross Weight | 19.00 KG |
| Package Type | Individual packing, each scanner will have a foam bag, suitable for long voyage shipping. |
Shipping
Payment Ways:
