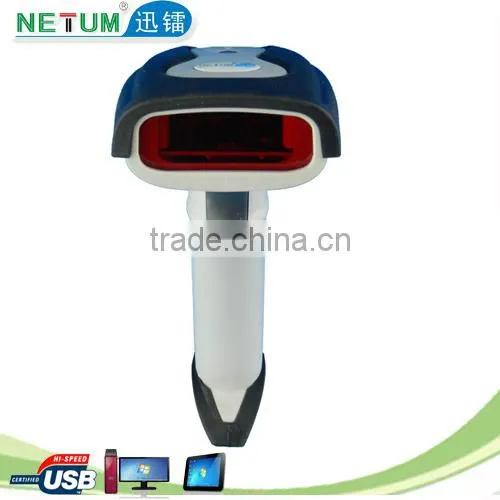

NT-2016 Auto-Induction Wired Laser Barcode Scanner
Specifications:
Symbologies: 1D codes
Depth of field: 10-800mm
Resolution: 0.076mm (3 mil)
Decode Speed:200 times/ sec.
Scanning Method: Manual/Automatic
Bite Error Rate: 1/8 million
With induction, auto light anchor and light out
Cable: USB or PS/2 or RS232 Stand: painted steel, all directions adustable

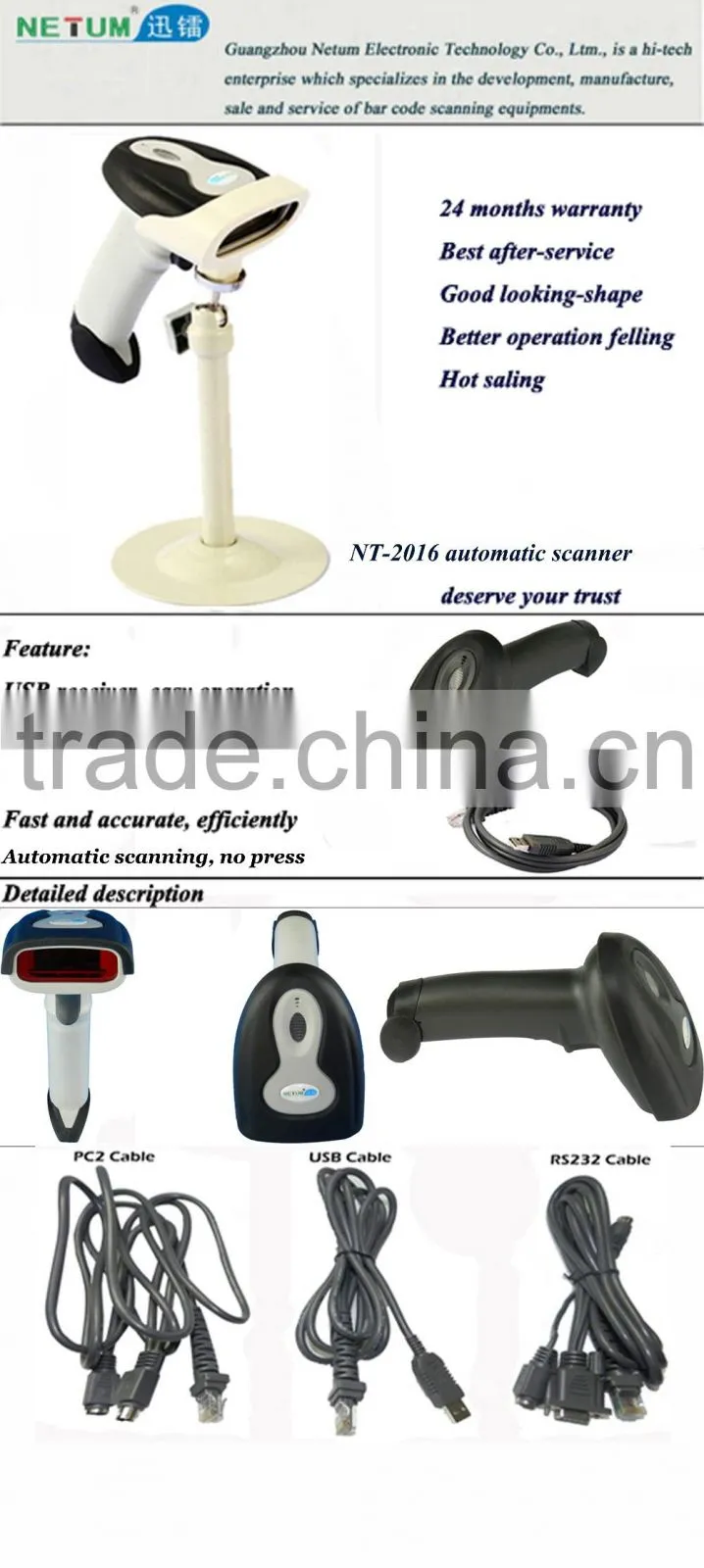

Features:
1. Unique trigger design, very comfortable operation sense.
2. Fast and accurate in reading all 1D codes.
3. Super scanning and decoding ability, can read incomplete and fuzzy codes.
4. Service life of button reaches up to 5 million times.
5. Supporting keyboards of over 20 countries and regions.
6. Full quakeproof, waterproof, dustproof, anti-knock design and EMI shielding; Suitable for each kind of industrial environment.
7. 360°all-directional adjustable stainless steel stand(optional).
Parameters:
Type of illuminant |
650nnm laser ( safe visible light ) |
Decode Capability |
Code 39, Full ASCⅡ, Code bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32, Standard code 39, EAN 128, MSI, EAN 8&13, UPCA&E, Plessey, Databar14, TELEPE |
Supported interfaces |
RS232 / PS2 keyboard / USB |
Operation |
Automatic |
Precision |
≥3 mil (0.076mm) |
Depth of scan field |
10-800mm |
Decode speed |
200 times/second |
Decode error rate |
Less than 1/8 million |
Print Contrast Signal |
≥30° |
Light intensity |
Daylight, 4000Lux Max |
scan angle |
Yaw(Skew)45°& Pitch60° |
Safety |
Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding |
Mechanical/Electrical |
|
Power voltage |
DC 5V |
Current |
Operation 120mA; Idle 10mA |
Scanner Material |
Eco-friendly, ABS+Rubber |
Physical |
|
Exterior dimension |
L*W*H (mm): 170*75*106 |
Materials |
Plastic |
Weight |
170g |
Environment |
|
Operating humidity |
5%-85% |
Storage humidity |
5%-85% |
Operating temperature |
-20°C-45°C |
Storage temperature |
-20°C-45°C |
Safety performance |
ROHS class 2 laser product, FCC class B and CE |

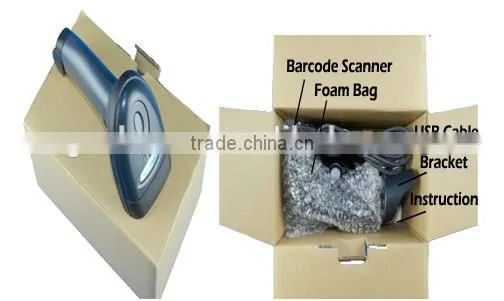

Packing and Shipping:
Packing List
| User's manual *1 |
Barcode scanner *1 |
| Cable(RS232/USB/PS2) *1 |
| Cradle(optional) *1 |
Packing Details
| Items per Carton: | 50 Pieces / Carton |
| Package Measurements: | 60X45X42 CM |
| Gross Weight | 19.00 KG |
| Package Type | Individual packing, each scanner will have a foam bag, suitable for long voyage shipping. |
