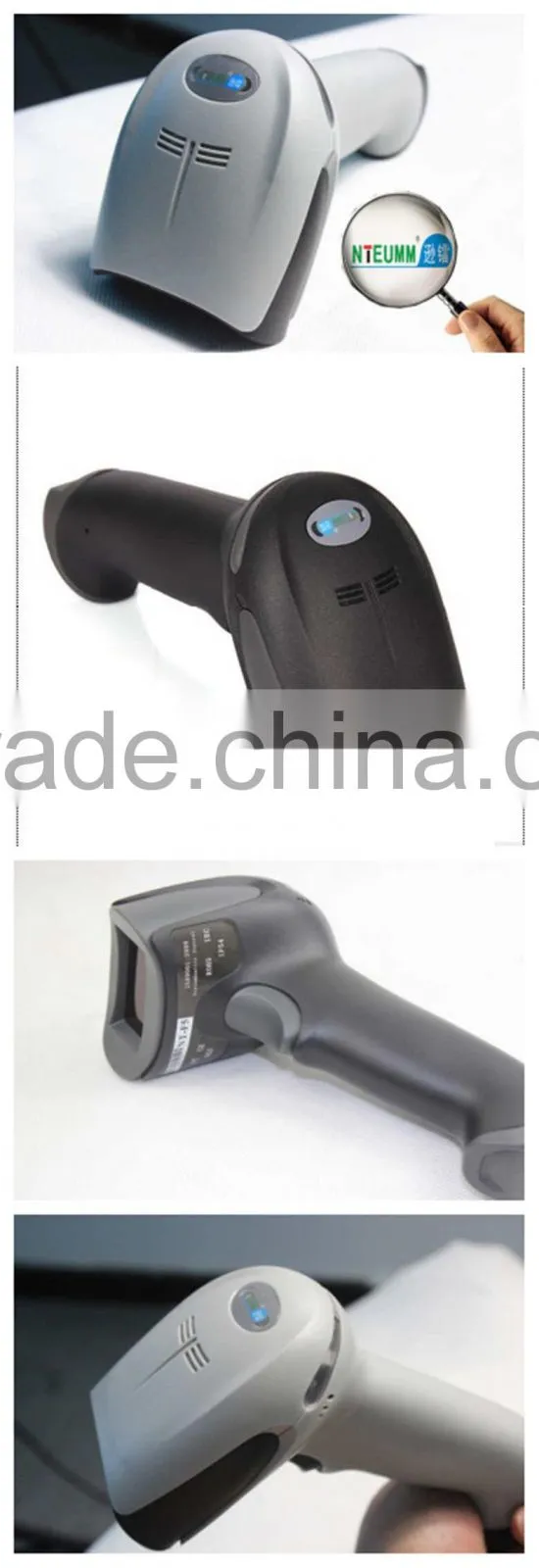

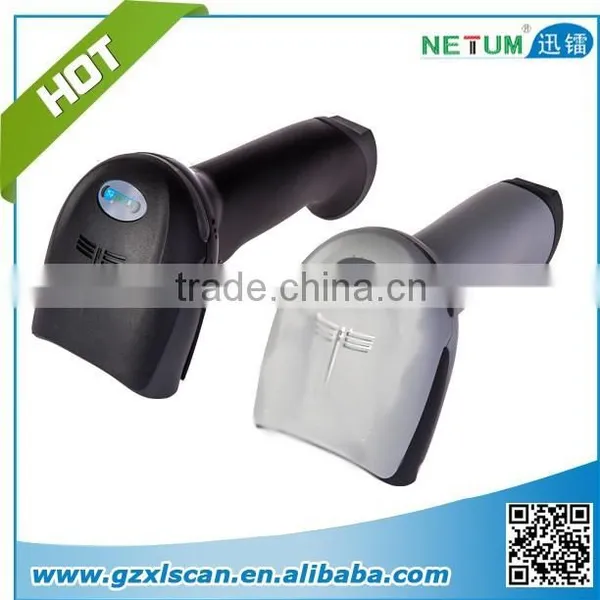

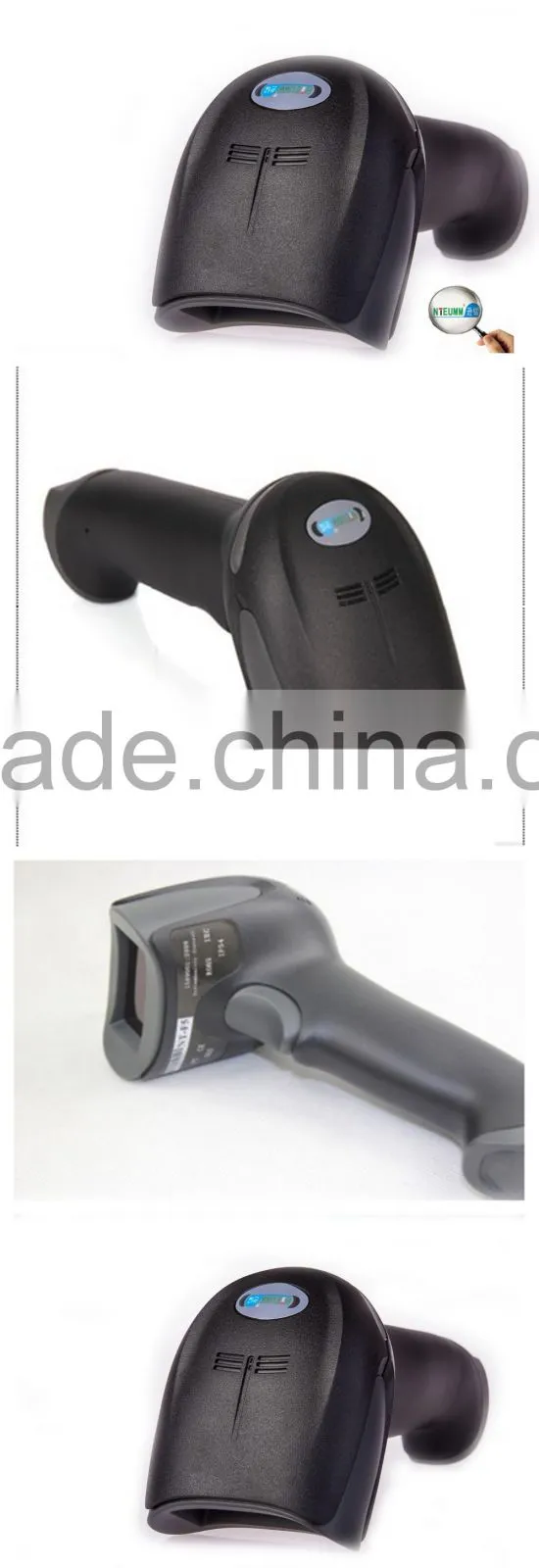

Help CenterHot Sale: NT-2012 1D Manual Operation Wired Handheld Barcode Scanner With USB Interface
Related Products
-
NT-1208 1D IP67 Waterproof Barcode Scanner With USB InterfaceUS$ 20 - 35MOQ: 50 Pieces -
NT-2012 New Original 1D Wired Barcode Scanner With USB InterfaceUS$ 5 - 20MOQ: 1 Piece
-
NT-2011 Manufacture Selling Portable and Super Decoding Ability 1D Barcode ScannerUS$ 8 - 18MOQ: 1 Piece
-
Hot Model: LS-1698 Wired 1D Handheld High Quality Barcode Scanner for SupermarketUS$ 1 - 18MOQ: 10 Pieces
-
High Performance: NT-2019 Multi-interface 1D Wired Handheld High Quality Barcode ScannerUS$ 1 - 15MOQ: 10 Pieces
Features:
1.Unique triger design , very comfortable operation sense.
2.Fast and accurate in reading all 1D codes.
3.Programmed to better read incomplete and fuzzy codes.
4.Service life of button reaches up to 5 millions times.
5.Supporting keyboards of over . 20 countries and regions.

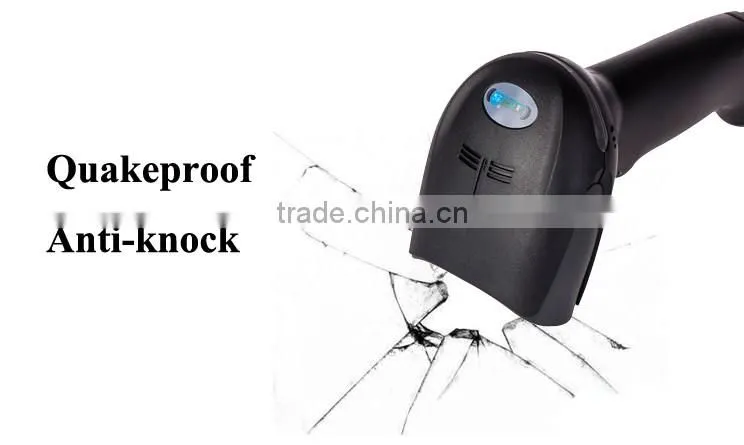

6.full quakeproof,dustproof,anti-knock-design and EMI Shielding;Suitable with each kind of industrial environment.
Parameter:
Feature | |
Type of illuminant |
650nnm laser(visible) |
Operation |
Manual |
Depth of scan field |
10-500mm |
Decode speed |
90 times/second |
Precision |
0.10mm |
Decode error rate |
Less than 1/5 million |
Supported interfaces |
RS232, PC2 keyboard, USB, etc. |
Scan angle |
Yaw(Skew)45°& Pitch60° |
Light intensity |
Daylight, 4000Lux Max |

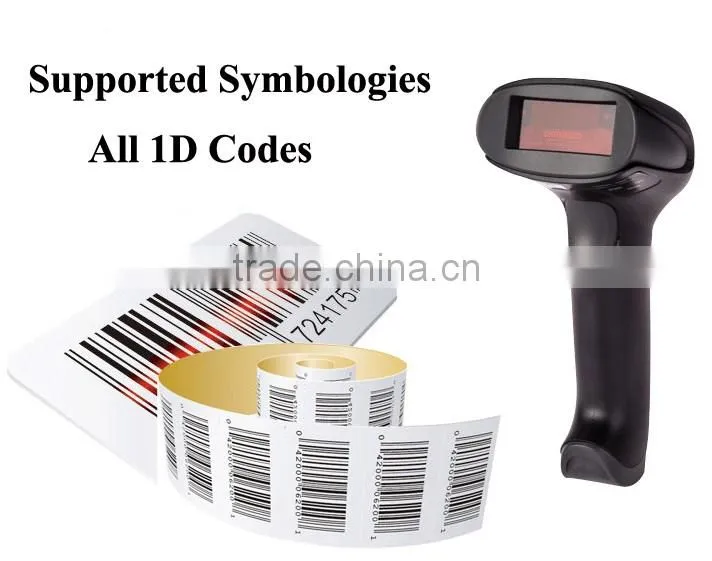

Decode Capability |
Code 39,Full ASCⅡ,Code bar,Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,Code 93, Code 128,Code 32,Standard code 39,EAN 128,MSI,EAN 8&13,UPCA&E,Plessey, Databar14,TELEPE |
Eelectrical | |
Power voltage |
DC 5V |
Working current |
120mA |
Static current |
10mA |
Physical | |
Exterior dimension |
L*W*H (mm): 170*75*106 |
Materials |
Plastic |
Weight |
170g |
Environmetal | |
Operating humidity |
5%-85% |
Storage humidity |
5%-85% |
Operating temperature |
-20°C-45°C |
Storage temperature |
-20°C-45°C |
Safety performance |
ROHS class 2 laser product, FCC class B and CE |
Applicable Scope:
•••comercial POS system(supermakets)
•warehousing and logistics
•librariries
•banks and telecom
•transportation
•postal service
•Industrial and manufacturing management
1. Packaging Detail: Neutral Seaworthy packing
2. Scanner: 170mm x 75mm x106mm; 165g (cable not included)
3. With Cradle:
Inner Box: 1 pcs/box; 210 mm x 130mm x 105mm; 635g
Carton: 50 pcs/ctn; 880mm x 450mm x 420mm; N.W.: 32kg; G.W.: 33kg
20FT container: 7800pcs; 156ctns
4. Without cradle Inner Box:
1 pcs/box; 185mm x 110mm x 90mm; 360g
Carton: 50 pcs/ctn; 600mm x 450mm x 420mm; N.W.: 18kg; G.W.: 19kg
70 pcs/ctn; 880mm x 450mm x 420mm; N.W.: 25kg; G.W.: 26kg
20FT container: 11450pcs; 229ctns
Shiping:
