Specifications
Steady performanceLong reading distance
Accurate decode ability

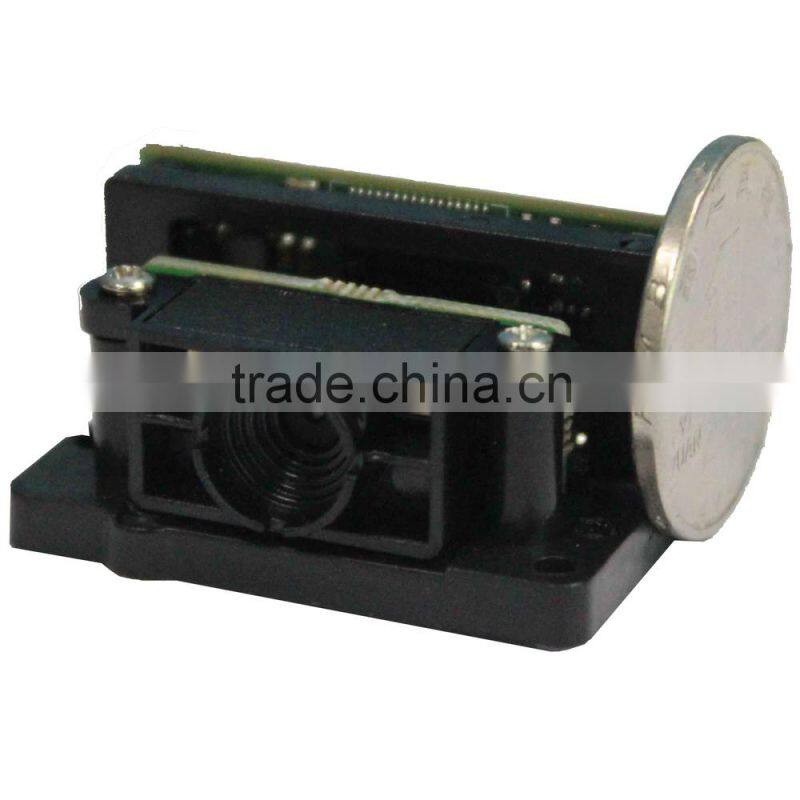

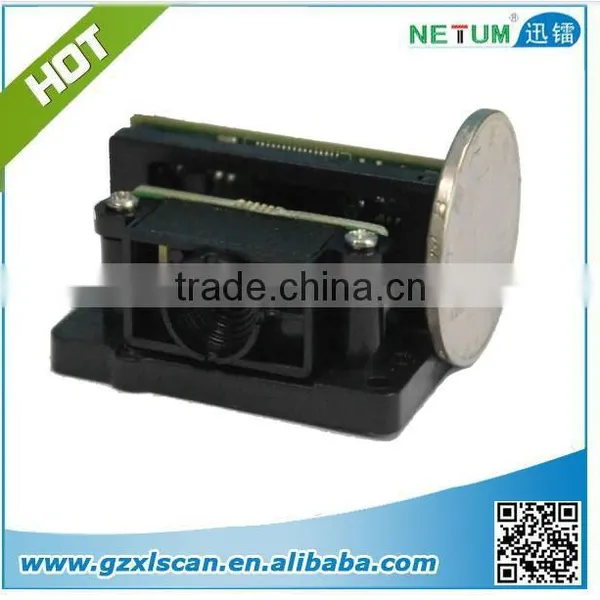

Specification of NT 80 | |
Performance | |
Illumination |
630 nm LED |
Aiming |
528 nm LED |
Field of View |
34° V x 46° H( (Vertical*Horizontal) |
Scan Angles |
Tilt: 360°, Pitch: ±65°, Skew: ± 60° |
Symbologies |
UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 |
PDF417 (and Variants) |
PDF417, microPDF417 and composite codes |
Postal |
U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch |
2-D |
MaxiCode, DataMatrix (ECC 200), and QR Code |
Print Contrast |
25% minimum reflectance |
Motion Tolerance |
Horizontal velocity: 5 in. (12.7 cm) per second |
Interface |
Imager 12- pin board-to- board |
Decoder |
RS-232C; USB (Standard, IBM SurePOS, Macintosh) |
Interfaces Supported |
RS-232C; USB (Standard, IBM SurePOS, Macintosh) |
Imaging Characteristics | |
Image (Pixels) |
0.35 Megapixel 752 pixels H x 480 pixels V |
Graphics Format Support |
Images can be exported as Bitmap, Jpeg, and Tiff |
Image Transfer Speed |
USB 1.1: Up to 12 Megabits/second RS232: Up to 115 kb baud rate |
Image Transfer Time |
Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb |
User Environment | |
Operating Temperature |
32° to 122° F / 0° to 50° C |
Storage Temperature |
-40° to 158° F / -40° to 70° C |
Humidity |
5% to 95%, non-condensing |
Drop/Shock Specifications |
Withstands 2000g to concrete |
Ambient Light Immunity |
Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting. |
We provides world-wide customers with Netum brand and OEM/ODM products of CCD Barcode Scanners, Laser Barcode Scanners, Anti-static Laser Readers, Wireless Laser Barcode Scanner, Omni-directional Scanner and Data Collection Terminals.
Why choose NETUM?
1. factory direct sale, lowest price
2. Unique design, very comfortable operation sense.
3. Scan depth of field up to 800mm.
4. Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding; Suitable with each kind of industrial environment.
5. Service life of button reaches up to 8 million times.
6. Full independent intellectual property rights.
7. Quality assurance.
