NT-E101A Laser Barcode Scanner Module/Engine

NT-E101A Laser Barcode Scanner Module/Engine photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CCD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Type Barcode Scanner
Scan Element Type CCD
Colour Depth 32 Bit
Interface Type USB, COM, PS/2
Max Paper Size Barcode Scanner Module
Optical Resolution 4 mil
Scan Speed 120 times/sec
Brand Name Netum
Model Number NT-E101A
Place of Origin Guangdong, China

Specifications

Laser Barcode Scanner Module/Engine
1. ODM / OEM engine
2. Well fit into any device
3. Read all 1D code
4. Good quality

NT-E101A Laser Barcode Scanner Module/Engine





Advantage:



1. Scan depth of field up to 800mm.



2. Factory direct sale, lowest price



3. Full independent intellectual property rights.



4. Steady performance and works well with other electrical parts.



5. Quality assurance; all products manufactured in Netum have been individually and strictly tested.



6. Strong EMI ability



7. Barcode Scanner Module

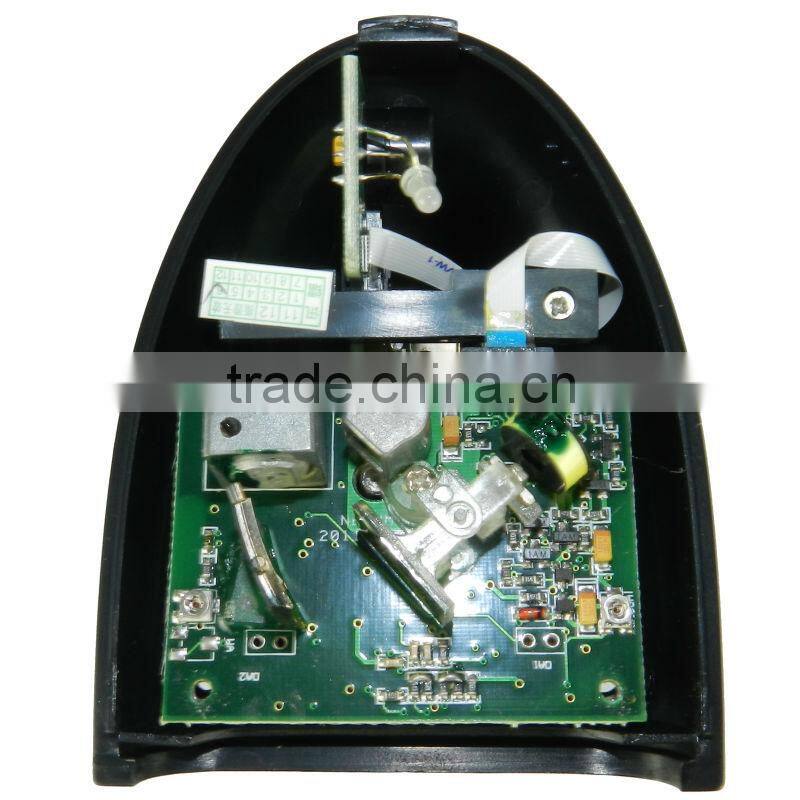

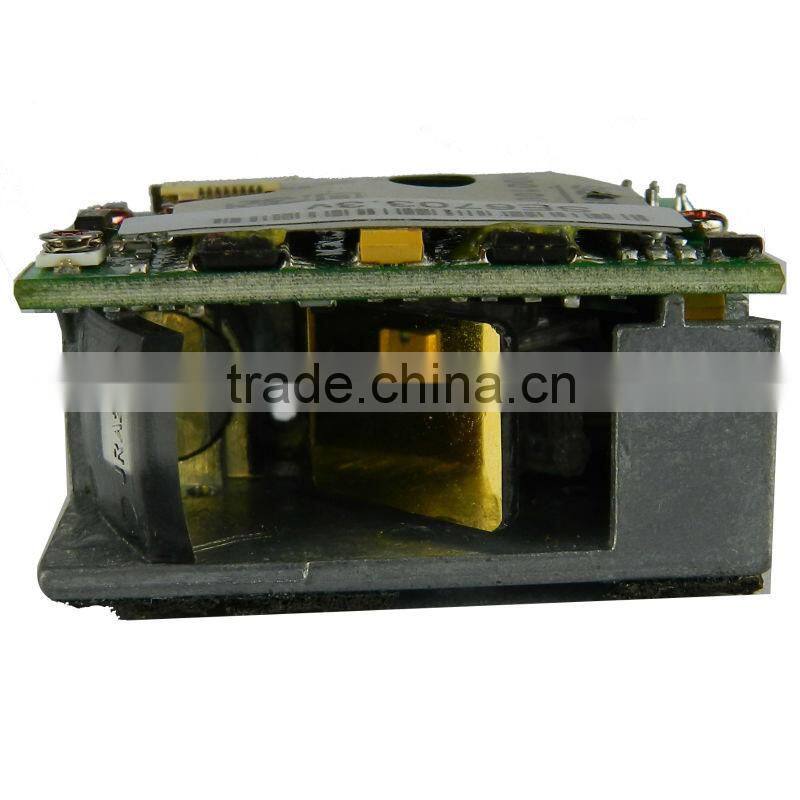

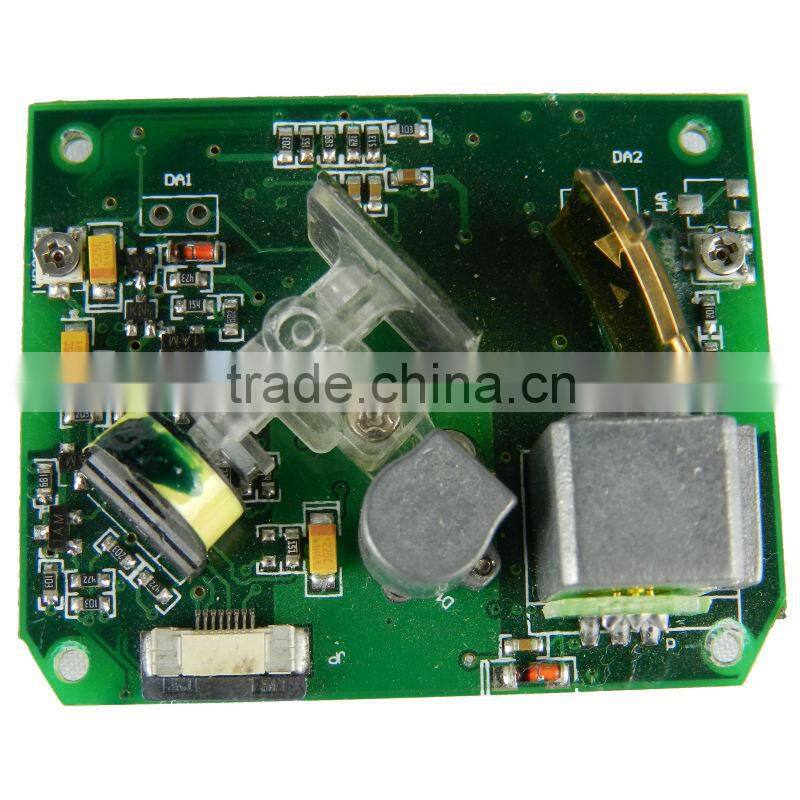

Picture Shows:



NT-E101A Laser Barcode Scanner Module/EngineNT-E101A Laser Barcode Scanner Module/EngineNT-E101A Laser Barcode Scanner Module/Engine



 Specification of Laser Barcode Scanner Module/Engine :



                         NT-E101A Laser Barcode Scanner Module/Engine
                Physical Dimension L 5 cm x W 4 cm x H 1.7cm
Weight 65g
Technical   Parameters        Light source Visible laser diode (650nm)
Symbologies All 1D codes
Reading preciseness 0.10mm (4mil)
Interface 8-Pin ZIF Adapter, industry standard output
Reading speed
120 times/second
Reading distance
10mm-800mm
Scan Angle of dip 45º
Reading angle of elevation
60 º
Laser Energy 0. 7mw±10%; λ=650nm
Print Contrast 30 º
Power source    Input Voltage:5V DC
Input current: 75 mA; 100mA max
Standby current:<10 mA max
Current:100 mA max
Lifetime 48000 hours
     Working environment
Humidity 5% ~ 95% (Without condensation)
Operating temperature - 20°C to 45°C (-4°F to 113°F)
Storage Temperature - 20°C to 45°C (-4°F to 113°F)
Light intensity Daylight, 4000LUX

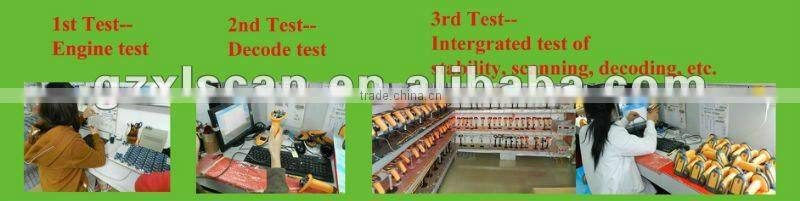

Quality Control:



NT-E101A Laser Barcode Scanner Module/Engine





Payment and Conditions:

NT-E101A Laser Barcode Scanner Module/Engine

Available Payment:

NT-E101A Laser Barcode Scanner Module/Engine
