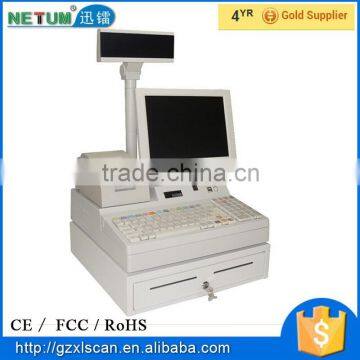

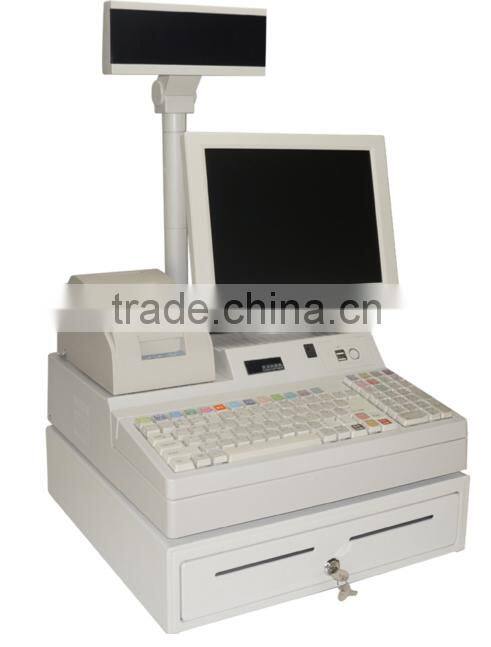

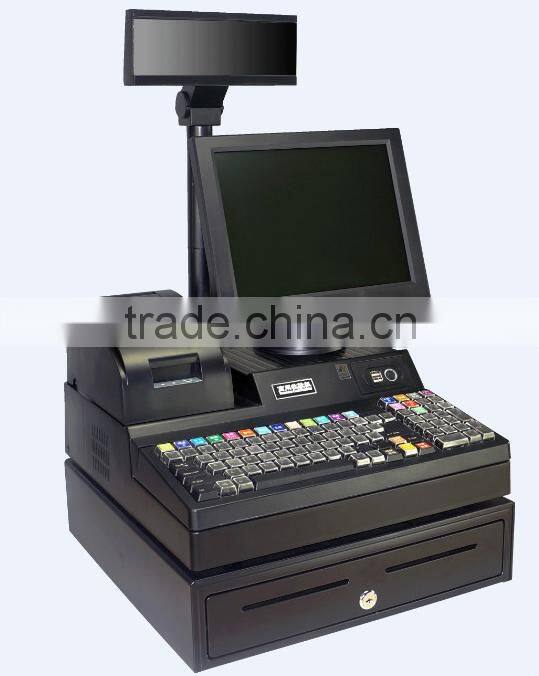

NT-8900D POS Machine All In One POS system For Supermarket

NT-8900D All in one POS System Specification/Data Sheet

Host

Case

Metal; slide-on type

Power Supply

250W /220V/110V  ATX Power supply

Main Board

Intel D525

CPU

1.8GHz

Memory

DDR3 2G

Disk

32G,1 x 3.5"

PCI

2

Interface

Serial Port x 2 (5V/12V)

LPT x 1

USB 2.0 Port x 6

PS/2 Mini-DIN Keyboard & Mouse Port x 1

DB 15 VGA Port x 1

RJ45 LAN Port x1

Audio output x1; Mic-in Jack x 1;

RJ11 x1

Network

10/100Mbps Ethernet

Monitor

Type

TFT LCD; double lamps

Size

12.1"

Brightness

250 cd/m2

Resolution

800x600

Adjustable Angel

Horizontal 0°-60°; Vertical 0°-90°

Customer Display

Type

VFD customer display with 2 lines, 40 digits

Receipt Printer

NT-5890K

58mm thermal printer

Cash Drawer

NT-CD03

Metal; 5 bills/5coins; 3-position-lock

Keyboard

NT-KB101

POS system speical keyboard

Optional Peripheral Connectivity

Barcode Scanner

CCD barcode scanner or laser barcode scanner

Label Printer

Industrial or Not-industrial label printer

Magcard Reader/ Writer

Track 1+2+3,USB port or PS2 port or Serial port

IC Card Reader/ Writer)

Contact or Contact less

Pin Pad

With LED or without LED

Regulations

Certificate

3C FCC CB CE EMC

Software

POS Application

Retail or restaurant POS software

Operation System

Windows® XP, Windows®2000, Win 7, Linux
