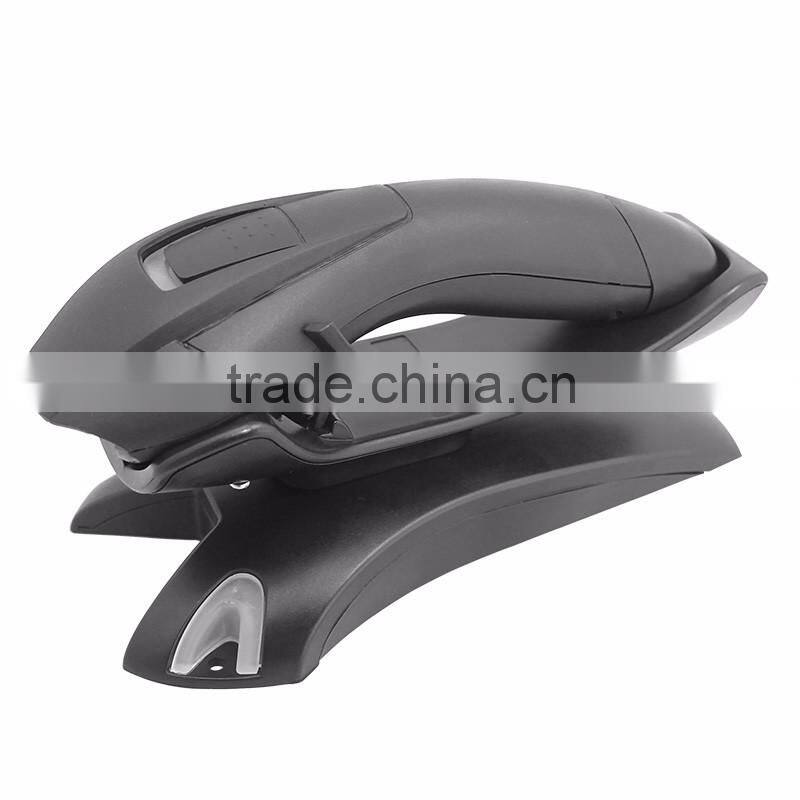

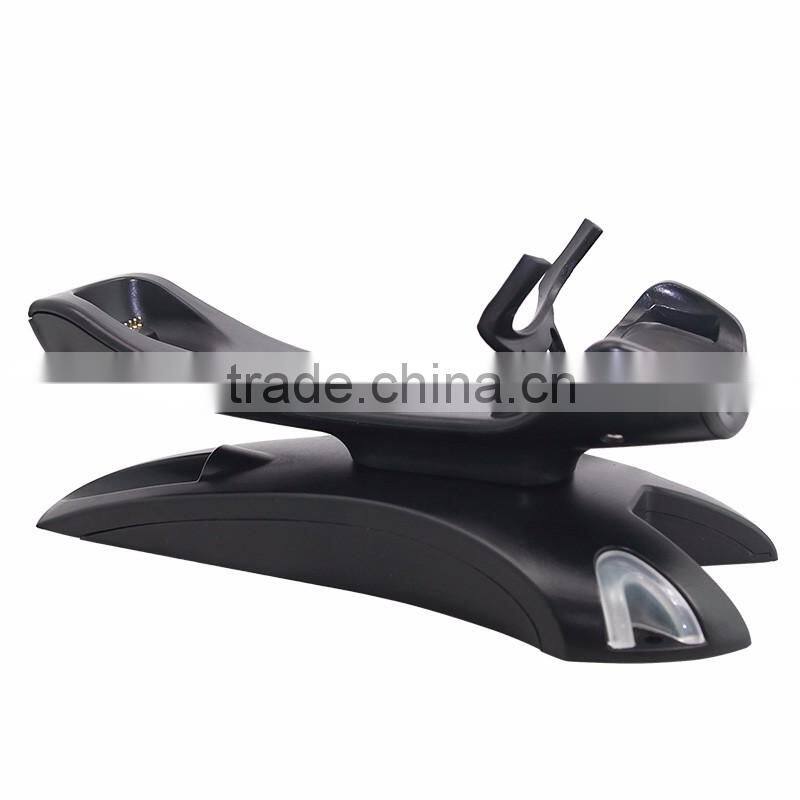

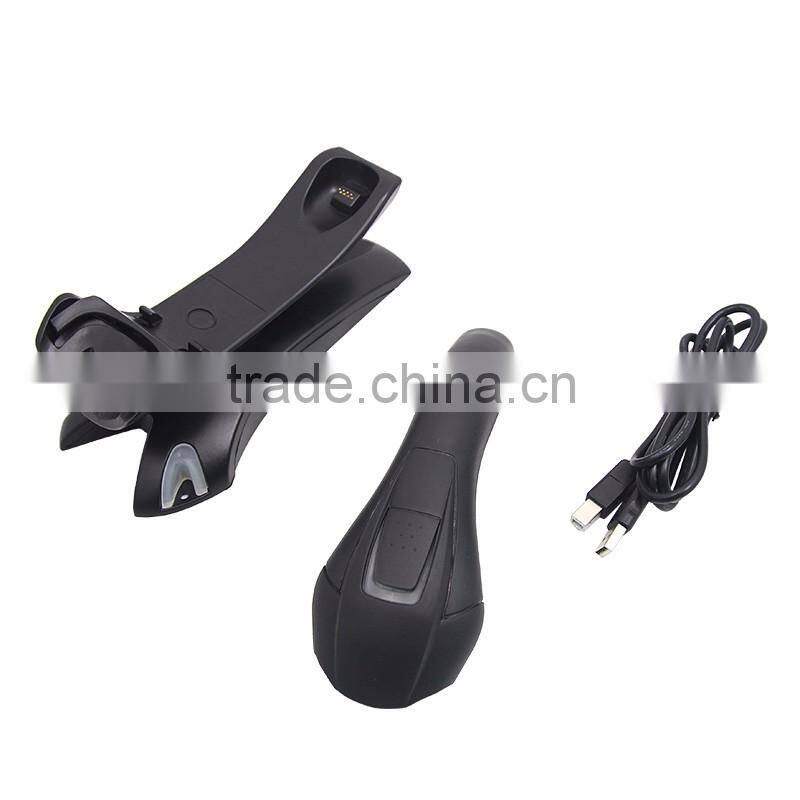

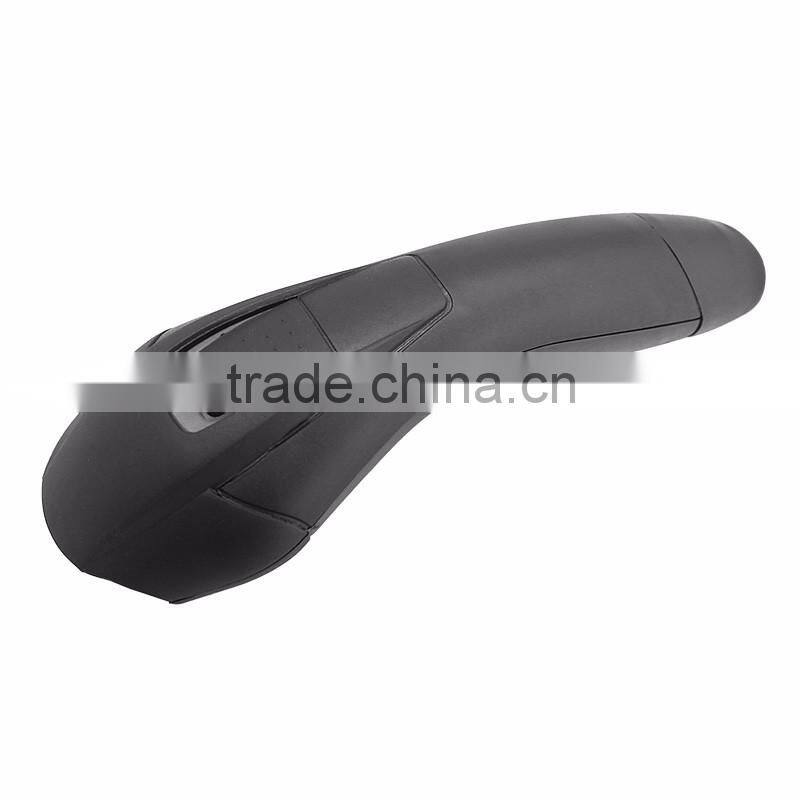

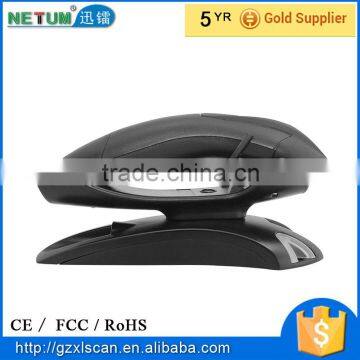

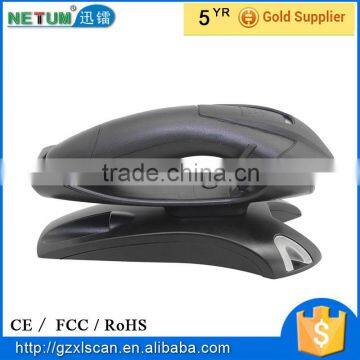

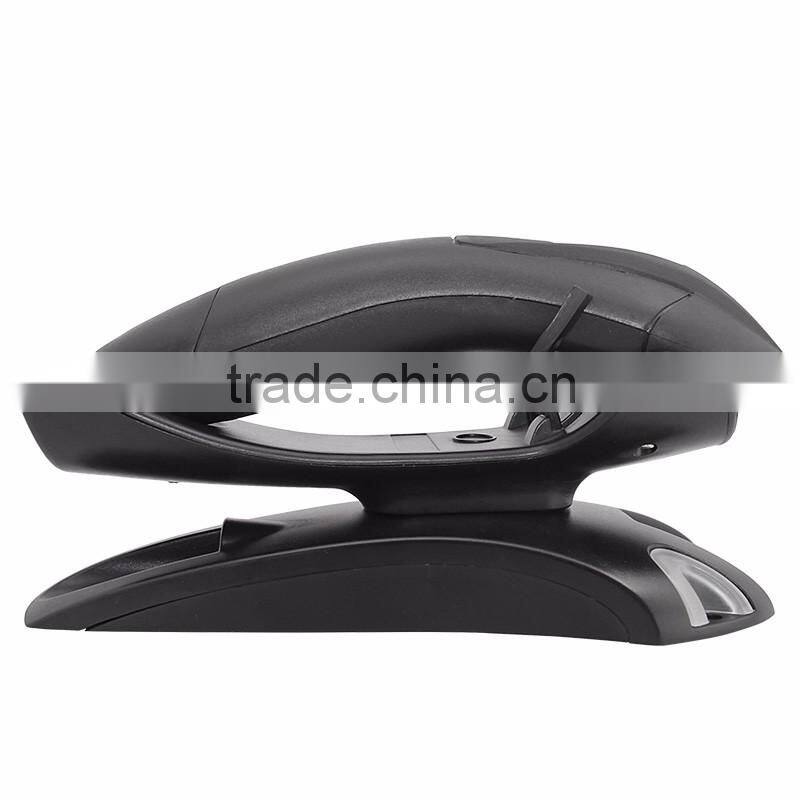

Netum X2 USB Base Wireless Handheld Bar Code Scanner

Functionality Item

Parameter

Type of illuminant

650nm laser

CPU

32bit

Bit error rate (BER)

1/8 million

Safety performance

Meet the Grade II National Criteria for Laser Safety

Barcode types

1D codes, such as EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,

Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc.

Supported interfaces

USB

Scanning method

Manual

Communication

100-300m

Resolution (pcs0.9)

0.076mm(3mil)

Depth of field

10-800mm

decode speed

260 times/second

Reading preciseness

0.40-0.825mm

Reading distance

10-800mm

Reading angle

of elevation

60°

Reading angle of dip

45°

Operating temperature

-20°C-45°C

Storage temperature

20°C-45°C

Operating humidity

5%-85%

Storage humidity

5%-85%

Power voltage

5V

Working current

57mA

Static current

36mA

Fall test

2 meter

Light intensity

Daylight, 4000Lux

Electromagnetic interference

Complying with en50081, par1 criteria

External electromagnetic interference resistance

Complying with en50081, par1criteria

Dustproofing and waterproofing

Complying with en50081, par1 criteria

Exterior dimension

Length*Width*Height: 210mm * 100mm * 100mm

Materials

electronic

Weight

450g
