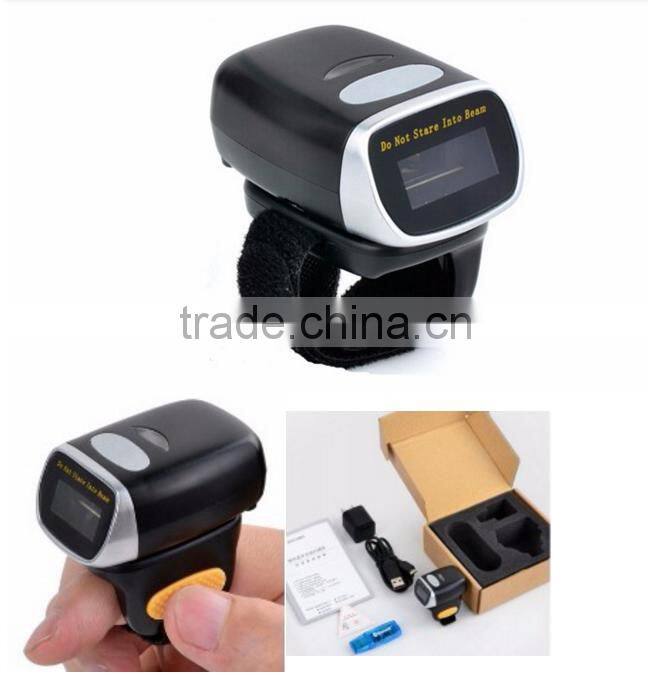

New product: NT-F002 2D mini bluetooth ring barcode scanner support Android & IOS system
Features:
1. Wearable ring with swivel-head design enables right-handed or left-handed operation
2.Supports 1D and 2D barcodes
3. Data connection to a smartphone,tablet ,or PC through Bluetooth or USB
4.Stores scanned data locally for batch uploading later ,can match the bluetooth connect .
5. Operating mode can be quickly switched by scanning a pre-defined barcode
6. Rechargeable and replaceable Lithium battery provides 8 hours of continous working time
7.A perfect solution for logistics ,warehouse,asset tracking ,healthcare, library management, and retail
Specification:
odel |
RD-F002 RING BARCODE SCANNER |
|
Mechanical Specifications |
Dimensions |
51(L)× 38(W)× 44(H) mm |
Weight |
50g(with battery,no AC adapter ) |
|
Buttons |
Scan Button ( on rotating base ) Power on/off Button |
|
Battery |
(3.7V,300mAh) Rechargeable and replaceable Lithium-Ion Battery |
|
Indicators |
Buzzer, LED( 3 colors) |
|
Connections |
Micro USB |
|
Ring strap |
Nylon strap |
|
Scan English |
1D Laser Engine |
Supports all common 1D barcode standards |
*2D Linear Engine |
Supports all common 2D barcode standards |
|
Electrical Specifications |
Power Input |
DC5± 0.15V |
Scanning Amperage |
75mA(steady)/85mA(peak) |
|
Standby Amperage |
<8μA |
|
Operating Environment |
Working Temp |
-15℃ ~ +50℃ |
Storage Temp |
-20℃ ~ +60℃ |
|
Humidity |
5%-95%(non-condensing) |
|
Drop Test |
Withstands a 1.5m drop to concrete,within the entire working temperature range |
|
IP |
IP54 |
|
Communication |
Wireless |
Supports Bluetooth up to about 20m |
Wire |
Supports Micro USB data |
|
Working Time |
Continuous 8 hours with one scan every 10 seconds |
|
Accessories |
Charger , USB cable |
|
Packing List:
- Bluetooth Barcode scanner ×1
- Cable (USB )×1
- User's manual ×1
