Specifications
1.CE,ROHS,FCC2.Wide and long scan range
3.OEM, low price
4.12 month warranty
5.2D Barcode Scanner PDF417
HK(GZ)Netum Co., Ltd is a Sino-HongKong joint venture high-tech enterprise! it is engaged in manufacturing R&D, sales and services of auto identification equipments, our product include laser bar code scanner, CCD bar code scanner, Omni-directional bar code scanner, wireless data collector, dot matrix printer and thermal printer! we implement strict quality requirement as national quality standard and all of our product have passed CE, FCC, IEC and SGS certificate!

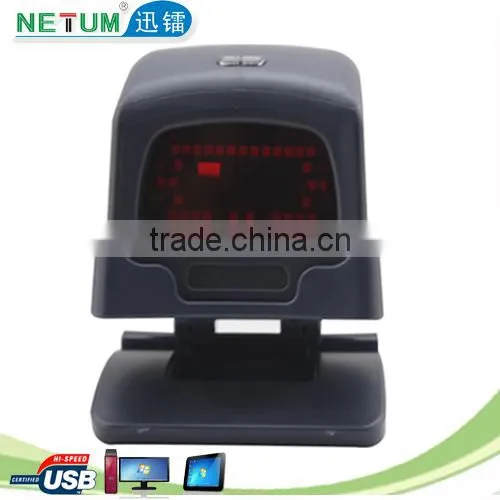

Omnidirectional QR Barcode Reader USB,Supermarket 2D Barcode Scanner PDF417
Feature
1. scan all 1d, 2d, qr and pdf417 barcode
2.automatic scanning barcode without doing anything
3.USB/PS3/RS232 interface, more choice
4.multiline scan barcode, more accurate and effecient
Product parameters
| Operational | |||||||
| Light Source | Visible Red LED 625nm±6.5nm | ||||||
| Visual Indicators | Blue=ready to scan;white=good read;Yellow=automatical scanning | ||||||
| Host System Interfaces | USB,RS232,keyboard Wedge,IBM 46xx(RS485) | ||||||
| Mechanical | |||||||
| Dimensions(L*W*H) | (With stand)1300mm*98mm*128mm;(Host)125mm*86mm*85mm | ||||||
| Weight | (With stand)510G;(Host)310G | ||||||
| Electrical | |||||||
| Input Voltage | 5VDC | ||||||
| Operating Power(typical) | 2W(400mA@5V) | ||||||
| DC Transformers | Class2:5VDC@2A | ||||||
| LED Class | Class1;IEC60825-1 EN60825-1 | ||||||
| EMC | FCC Part15,IEC60825-1,EN55022 Class B | ||||||
| Environmental | |||||||
| Operating Temperature | 0°C-45°C | ||||||
| Storage temperature | -40°C-60°C | ||||||
| Humidity | 0% to 95% relative humidity,no-condensing | ||||||
| Drop | Designed to withstand 1.5m(5') drops | ||||||
| Environmental sealing | Sealed to resist airborne particulate contaminants | ||||||
| Light Level | 100000 Lux(9290 foot-candles) | ||||||
| Scan performance | |||||||
| Scan pattern | Area Image(1280*512 pixel array) | ||||||
| Motion Tolerance | 47 cm/s(18 in/s) for 13mil UPC at optimal focus | ||||||
| Scan Angle | Horizontal:50 | ||||||
| Print Contrast | 20% minimum reflectance difference | ||||||
| Pitch,Skew | 75°,75° | ||||||
| Decode Capability |
*1D:Code 39,Code 93,Code 128,UPC/EAN/JAN,Code2 of 5,Code11,Codebar,MSI Plessey,GS1 databar;Telepen,Trioptic *PDF:PDF 417, MicroPDF417 *2D:QR code,Micro QR Code,Data Matrix,Aztec Code,Maxicode,Code block, Composite code, POSTNET,PLANET,UPC,Intelligent Mail,Canada Post,Australia Post,Japanese Post,Royal Mail RM4SCC,KIX Code *OCR:OCR-A,OCR-B,E-13B MICR |
||||||
