Home > Manufacturing & Processing Machinery > Leather Machinery > Auto Double Plates Oil Pressure Embossing and Cutting H.F Machine
Auto Double Plates Oil Pressure Embossing and Cutting H.F Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Fujian, China
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Dual Easy Sew Sequin Sewing MachineNegotiableMOQ: 1 Set -
New Design Shoe-upper Equipment Hydraulic Plane Shoe Upper Cutting MahcineNegotiableMOQ: 1 Set
-
2015 Good Quality With Competive Price Hydraulic Toe Lasting MachineNegotiableMOQ: 1 Set
-
Nine Princers Automatically Hydraulic Shoe Toe Lasting MachineNegotiableMOQ: 1 Set
-
Automatic Hydraulic Toe Last MachineNegotiableMOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Place of Origin
Fujian, China
Brand Name
Taizheng
Model Number
TZ-YHJ
Type
Embossing Machine
Voltage
220/380/415/440v
Power(W)
8kw
Dimension(L*W*H)
1100*1950*2050mm
Weight
1000kg
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Function: welding and cutting shoe uppers2. High frequency embossing machine
3. PLC control
4. Automaic pushing plate

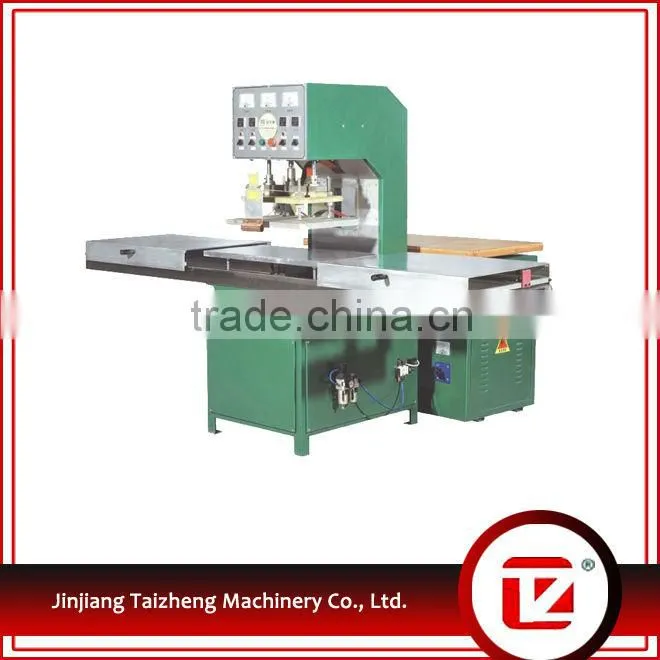

Auto double plates oil pressure embossing and cutting H.F machine
High frequency auto skid platform synchronous welding machine specially for footwear, trademark, purses, nameplate, costume.
Application range: Footwear, trademarks, purses, nameplate, costume embossing, PET environmentallly
frinendly material etc.
Feature and functions: 1: PLC+Man-machine interface After a simple set, it can process a varity of products. The processing process is easy
and safe
2: Positionning accuracy The machine with high-precise positioning system can easily fix precise position. The processing quality is
greatly improved.
3: Anti-spark protection When spark occur, the high sensitiveness spark protects electric system, cuts high
frequency power immediatly to protect mould and material
4: Easy tuning and special protection circuit The selectable output power ensured a stable quality of the products for it could
reduce the heating time when joining is being carried out
5: NO high frequency radiation This machine has good shielding device, all the parameters pass inspection of state
departments
Specification:
| Model | TZ-YHJ1 | TZ-YHJ2 |
| H.F.Output | 8KW | 15KW |
| Oscillation Frequency | 27.12MHZ | 27.12MHZ |
| Power Supply | AC220/380/400/415/440V 3PHASE | AC220/380/400/415/440V 3PHASE |
| Input Power | 15KVA | 25KVA |
| Oscillation Tube | 7T69RB | 8T85RB |
| Max Pressure | 15T | 25T |
| Electrode Size | 300*500mm | 350*550mm |
| Max Gap of Electrodes | 150mm | 150mm |
| Net Weight | 1000kg | 1200kg |
| Packing Size | 2500*800*1950mm | 2500*800*1950mm |
