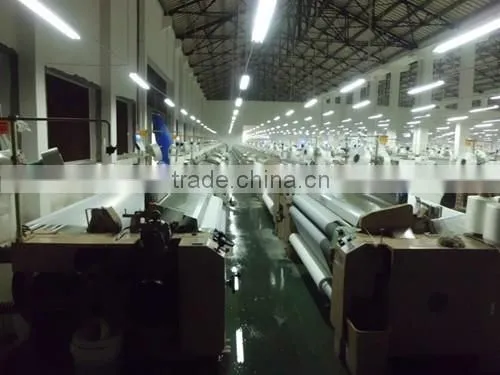

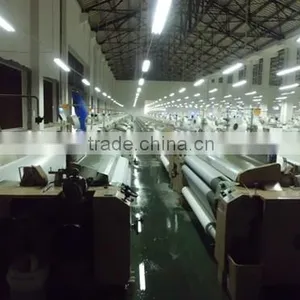

Help CenterPlain Shedding Water Jet Textile Loom,plain Shedding Water Jet Loom Weaving Machine,plain Water Jet Textile Loom(150-450cm)
Related Products
-
Water Jet Textile Loom,water Jet Loom Weaving Machine,water Jet Textile Loom(150-450cm)US$ 5,000 - 5,000MOQ: 1 Set -
Galvanized Steel Traffic Fence,galvanized Traffic Fence Manufacturer,galvanized Road FenceUS$ 100 - 100MOQ: 100 Sets
-
PET Embossing Machine,holographic Embossing Machine,hologram Soft Embossing MachineUS$ 5,000 - 5,000MOQ: 1 Set
-
PET Rewinding Machine,holographic Embossing Machine,hologram Soft Embossing MachineUS$ 5,000 - 5,000MOQ: 1 Set
-
Galvanized Traffic Fence,galvanized Traffic Fence Manufacturer,galvanized Road FenceUS$ 5,000 - 5,000MOQ: 1 Set
Particulars |
Main Specifications |
||||
Nominal reed space(cm) |
150,170, 190,210,230,260,280,340 cm |
||||
Connected electric power |
2.2kw 135cm-190cm |
||||
2.8kw 210cm -340cm | |||||
Inching |
Stop control in position and operation by stop button |
||||
Shedding |
Plain shedding |
8 heald frame max |
|||
Cam shedding |
10 heald frames max |
||||
Dobby shedding |
Negative dobby shedding with 16 heald frames max |
||||
Positive dobby shedding with 16 heald frames max | |||||
Let-off |
Mechanical Let-off |
||||
Electronic let-off | |||||
Weft density |
5-60picks/cm |
||||
Beam flanges diameter(mm) |
800mm 914mm 1000mm |
||||
Leno device |
Planetary gear type with proximity switch |
||||
Drying |
By suction blower device |
||||
Weft yarn cutting |
By mechanical cutters on both sides of selvedges |
||||
Nozzle and needle |
As your requirement |
1 nozzle / double nozzle/ Three nozzle |
|||
supplier |
Japan |
||||
Taiwan | |||||
Korea | |||||
weft insertion |
Rate of weft insertion |
2280m/min |
|||
Pump |
Piston-type pump with spring pressure |
||||
Measuring &feeding |
1color:mechanical |
||||
2 or 3 color: electronic | |||||
Weft feeler |
Photoelectric reflex |
||||
Take up |
Take up type |
Mechanical/ electronic |
|||
Cloth take up dia max |
Plain shedding |
520mm |
|||
Cam/dobby shedding |
600mm |
||||
Water suction |
Cyclone steam separator |
||||
Electric power source |
380v |
||||
Electric motors |
1.5kw 135cm-190cm & 2.2kw 210-340km |
||||
Mechanical speed |
Above 600RPM (according to fabric) |
||||
Control panel |
Logic & PC type |
||||
Indicator signal lamp |
4-colour LED type |
||||
Weight |
1.6 tons depending on reed space |
||||
Yarn |
Water jet loom is more suitable for hydrophobic fibre : Nylon-6 filament, nylon-6-non-sizing,polyester filament, polyester draw textured, polyester spun yarn, polyester high twisting yarn, polyester POY, polyester non-sizing filament, O.P yarn, Taslon yarn |
||||
