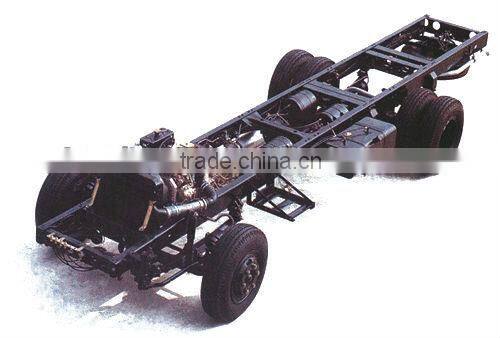

Drive Away Chassis

Specifications

CHASSIS MODEL:                                                       EQ 6100KT

DIMENSIONS:

Overall length (mm) ---------------------------------------------10,000

Overall width (mm) ---------------------------------------------- 2,400

Wheelbase (mm) ------------------------------------------------ 5,200

MASS

Chassis mass total (kg) ------------------------------------------ 4,500

Chassis mass front (kg) ----------------------------------------- 1,175

Chassis mass rear (kg) ------------------------------------------ 3,325

Performance (at G.V.W.rating)

Max speed (km/h) ------------------------------------------------105

Gradeabilty tan (%) --------------------------------------------- > or = 30

CAPACITY

Permissible axle capacity (kg)

Front --------------------------------------------------------------- 5,000

Rear ---------------------------------------------------------------- 10,000

G.V.W. ------------------------------------------------------------- 15,000

ENGINE

Model: ------------------------------------------------------------- B210-20

Type: diesel, turbo charged & inter cooled, 6-cy, dired injection.

Max out put (kw/rpm): ------------------------------------------ 155/2200

Max torque (nm/rpm): ------------------------------------------- 858/1400

CLUTHCH

Type: dry, single plate, with damper springs, hydraulic control

Service brake: full air, dual circuits, ABS,

Steering: recirculating ball with hydraulic booster.

Suspensions:

Front: lift spring with shock absorber and stabilizer

Rear: lift spring with shock absorber and stabilizer

Wheels & tires: 10.00-20

Fuel tank: 280L

Chassis frame: ladder-shaped,

Electrical: Batteries 12Vx2
