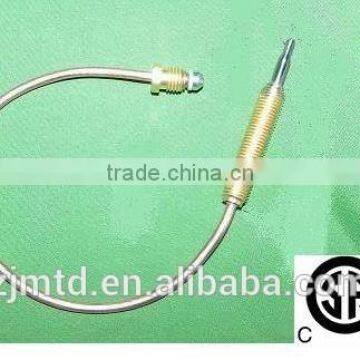

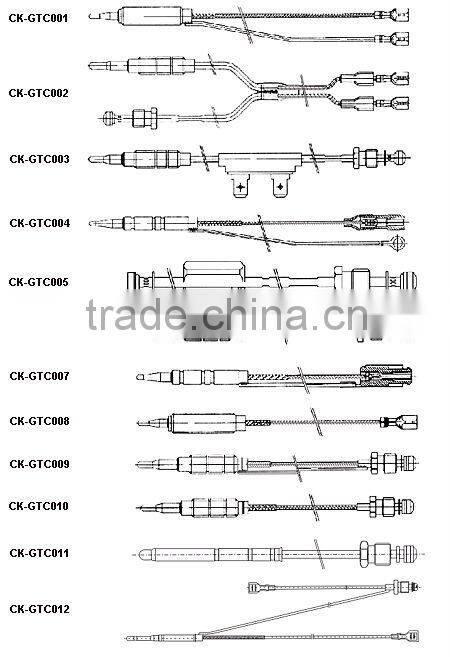

CSA Approved CK-TC016 Thermocouple

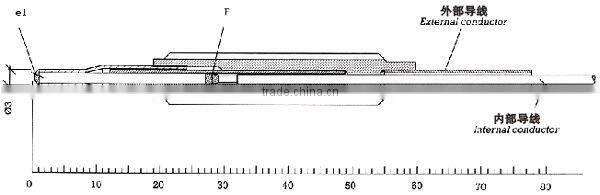

Technical Characteristics

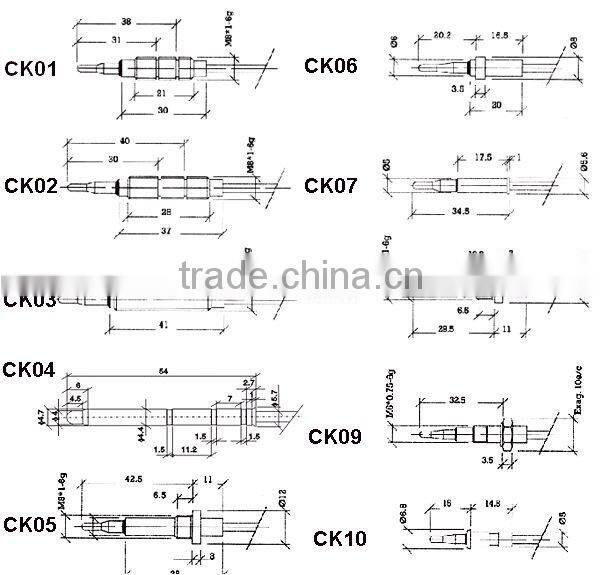

1. Type of conection to magnet unit: Nut, Coaxial, Faston

2. Lengths: 170-1850mm

3. Maximun temperature (head): Depending on the head type, up to 700°C maximun.

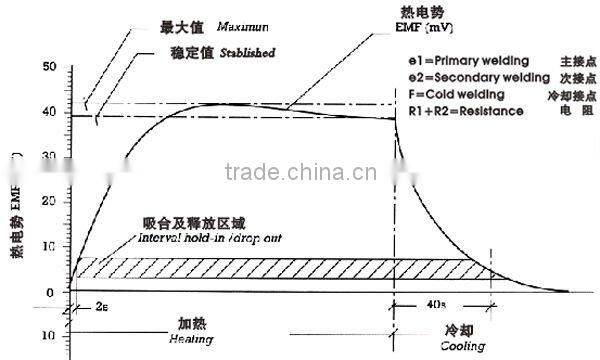

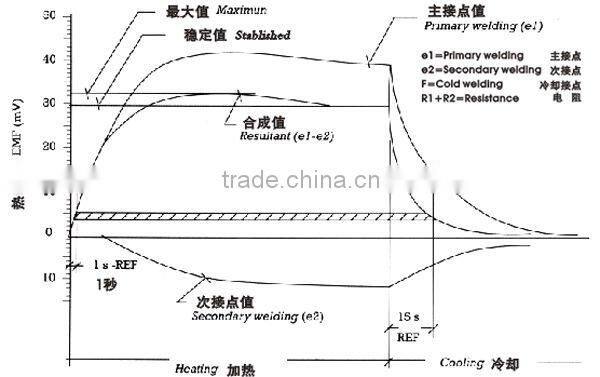

4. E.M.F. in open circult: ≥30mV(Normal) ≥16mv(Fast action)

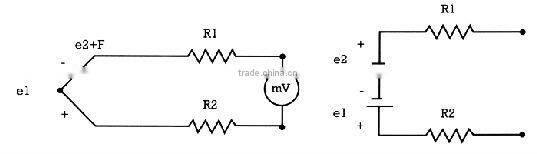

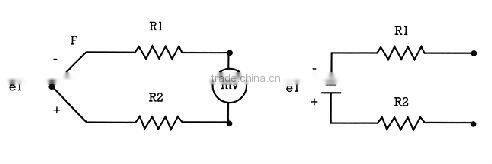

5. Inner resistance: 8.5+0.22*L(mΩ)

*** CSA approved

Install with the protection request

• 1. The maximun torque of the thermocouple connected with thread under the installation function should not exceed 5 N.m.
• 2. All parts in contact or connection with the magnet unit components should be separated from dust, oil stain and metal scraps to avoid from block in current inside the circuit.
• 3. The bend radius of the tubular mode thermocouple should not be less than 20 mm. Two-wire system thermocouple should have a minimum radius of 5 mm. These two types of thermocouple should avoid from fricition or contact with sharppointed objects in installation.
