Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Hikvision Type Varifocal TVI Camera With CMOS 720p Analog Dome Camera

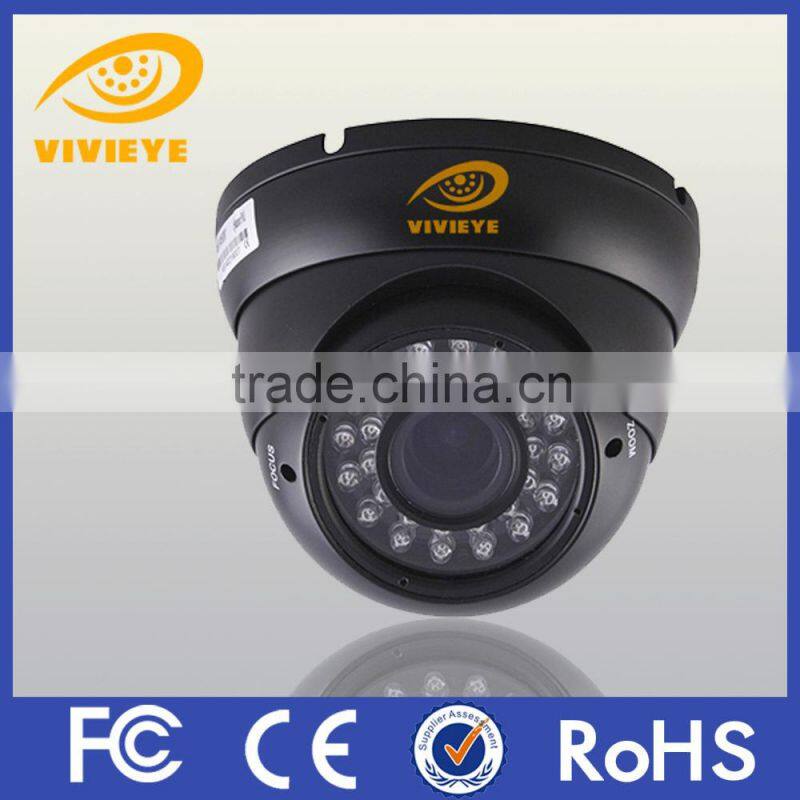

Hikvision Type Varifocal TVI Camera With CMOS 720p Analog Dome Camera

Name: Hikvision Type Varifocal TVI Camera With CMOS 720p Analog Dome Camera
Brand: VIVIEYE
SKU: 130954745
Availability: InStock

Hikvision Type Varifocal TVI Camera With CMOS 720p Analog Dome Camera thumbnail-1

Hikvision Type Varifocal TVI Camera With CMOS 720p Analog Dome Camera photo-1

US$ 14.85 - 29.85 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Brand Name:

VIVIEYE

Model Number:

TVI-4052-TS

Type:

Other, Analog Camera, varifocal tvi camera

Contact Supplier Request Quote Chat Now

Shenzhen Newsurway Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name VIVIEYE

Model Number TVI-4052-TS

Type Other, Analog Camera, varifocal tvi camera

Style Dome Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Product Categories
Video DoorPhone	TVI Camera	AHD DVR	AHD Camera	IP Camera
Standalone DVR	IR Waterproof Camera	NVR-Network Video Recorder		Dome Camera
Wireless Camera	High Speed Dome	CMOS Camera	Car Camera	Conceal Camera
Balun	Mini Camera	peripheral products	Box Camera	HD SDI Products

Maybe You Like

Product Description

Hikvision Type Varifocal TVI Camera with CMOS 720p Analog Dome Camera

Main Features

720P dome camera hd tvi camera
HD8060 high performance image processing chip Techpoint TX chip, far transmission distance, long distance transmission and low loss
Using 239 millions of digital high-definition CMOS image sensor
Coaxial cable transmission distance up to 500m
HD720P Video Output
Adopt HDTVI Technology
True Day/Night
3.6mm 2 Mega Pixels

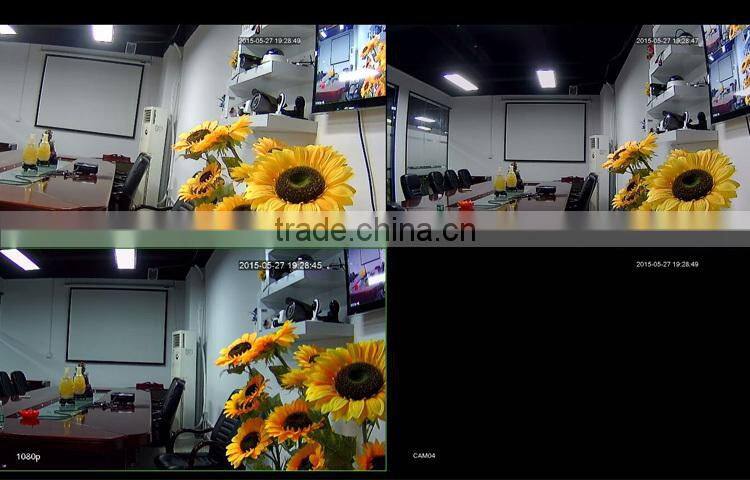

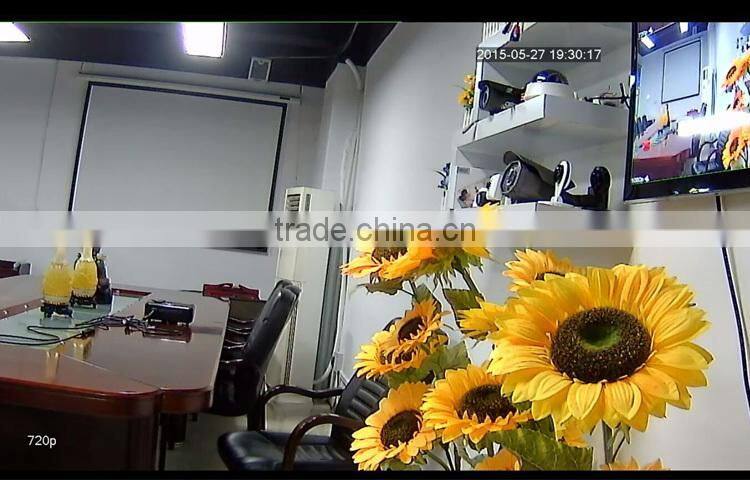

Demo Image:

Technical Specification

Model	TVI-4052-TS
Image sensor	1/4“ CMOS Aptina 239
Signal	TVI
Signal system	PAL/NTSC
Effective pixels	1280*720(25fps)
Minimum illumination	0.01 Lux
BLC	AUTO
Shutter	AUTO/ 1/50(1/60)-1/100,000sec
AWB	AUTO
S/N Ratio	More than 49dB
Day/Night	YES
Lens	3.6mm 2 Mega Pixels
IR Range	24x 5 IR Leds / 20 meters IR distance
Video output	1Vp-p Composite Output(75Ω/BNC)
Working Condition	-20℃ ~ 50℃, Humidity <90%( No condensation )
Power	DC12V/97mA ±8mA
Protection rade	IP66
Video occupied space	1H ≈ 920MB

Company Information

Packaging & Shipping

FAQ

1, We would like to use the camera to detect objects between 20 cm and 1 m. Could the camera be able to focus this distance?
To 20CM-1M,that is Easy to for our Camera,Our Camera use Board lens 3.6mm/F2.0 and 2.8-12mm Manual Zoom (2M Pixels),that distance object is easy to get.

2, We would like to get the image with FOV (Field of View) around 70 degrees. Could the lens & sensor be capable of providing this FOV?
To Board lens 3.6mm the effective FOV is 75.7°, And 2.8-12mm Manual Zoom (2M Pixels),the Effective FOV is 89.9°

3, We will use only 1 meter of RJ45 cable to transfer the data. What is the minimum delay that the camera could provide?
To the RJ45 Cable,Our Normal IP Camera is not added that port,but the IP High speed dome Camera have this Function,You can check my list first,to see which products suits your demands.

4, Does the camera support UDP network protocol? Is there any faster protocol that you could provide? (Data loss is acceptable)
Our IP Camera Support UDP Protocol,And to the other Protocol,Below protocols all are supported:TCP/UDP/IP/HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

5, Does the camera support direct streaming rates of 640x480 or similar standard quality videos?
640*480 is Supported,And also we have 320*180,1920*1080,1280*720,1280*960

6, Can the camera be set to FPS below 25?
That is possible,you can choose the fps 1-25 fps.

7, Does the camera have Auto White Balance (AWB) option? Can we turn it off, since it makes us harder to process the image ?
Yes,our Camera have the AWB option,but we not supported to turn it off,as this the default setting.

8, What is the output video format?
To the output video,the format is H.264.

9, Does the module delivered include the mount?
yes,the module is included with the mount.

10, Can you provide customer's logo on the product? What is the price of it, besides the price of the camera module?
That is possible to print your custmer's logo in the products,we need to added 20usd for openning the logo module(Only charge one time),each camera module added 0.5USD.

11, Can IR LED be switched to white LEDs or simply be not installed in the camera? Will the price change in this situation and how much?
The IR LED revised with the White LED,that need to choose the camera housing,and if not install in the Camera,that all depends on the housing,Pls let me know the Camera housing that you are interested.
