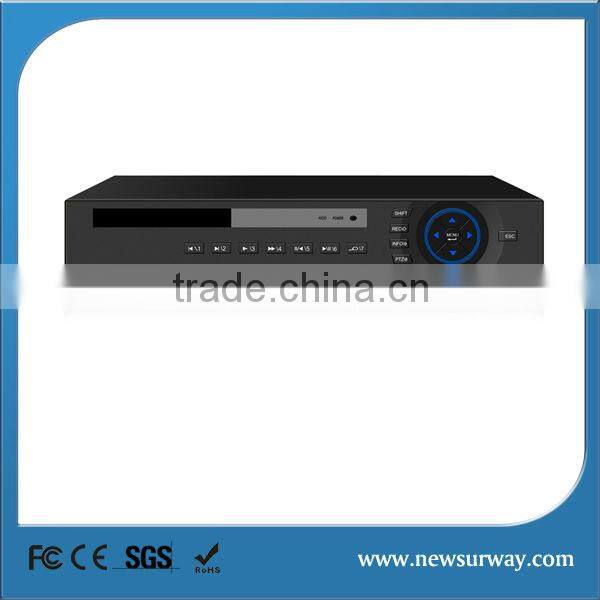

Model

SEDVR-6304FA

System

Main processor

Technical grade embedded microprocessor HI 3520A

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Interface

Operation interface

16bit real color GUI interface support mouse operation

Display screen

1/4 screen (take analog channel as an example, other is base on the selected channel mode)

Video

Video standard

PAL(625 lines,50fps);NTSC(525 lines,60fps)

Image encode

                                        H.264(High Profile)

Monitor quality

Monitor: D1,VGA,HDMI:High definition(support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768,800*600)

Playback quality

1080P/720P/D1/HD1/CIF

Encode capability

4ch 960H real-time

Decode capability

4ch 960H real-time

Multi-mode video input

Local analog input:

4 *960H

Local analog + network digital input:

2 *D1+(1*1080P+1*720P)

Network digital input:

8*960H / 4*720P / 2*1080P / 1*720P+7*D1 / 1*1080P+1*720P+2*D1

Motion detection

Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)

Audio

Audio compression

G711A

Bidirectional talk

support

Record and playback

Record mode

manual>alarm>motion detection>timing

Local playback

1-4ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)

Video search

time,date,event,channel search

Storage and back up

Space occupation

Video:CIF 4~5G/day*channel, D1 16~20G/day*channel;
audio:691.2M/day*channel

Video storage

Local HDD / Network

Back up mode

Network backup / USB portable HDD / USB imprint / SATA imprint

Interface

Video input

4ch CVBS/BNC(1.0Vp-p,75Ω)

Video output

1ch CVBS/BNC(1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI

Audio input

1ch RCA(200-2800mV,30KΩ) (can extend to 4ch)

Audio input

1ch RCA(200-3000mV,5KΩ)

Alarm input

N/A( can extend to 4ch)

Alarm output

N/A( can extend to 1ch)

Network port

RJ45 10M/100M self-adaptive Ethernet port

PTZ control

1 RS485,1 RS232;support multi kinds of PTZ protocol

USB port

2*USB2.0

HDD port

1 SATA ports(each max to 2048G)

Wireless port

3G,WIFI(extension via USB port)
