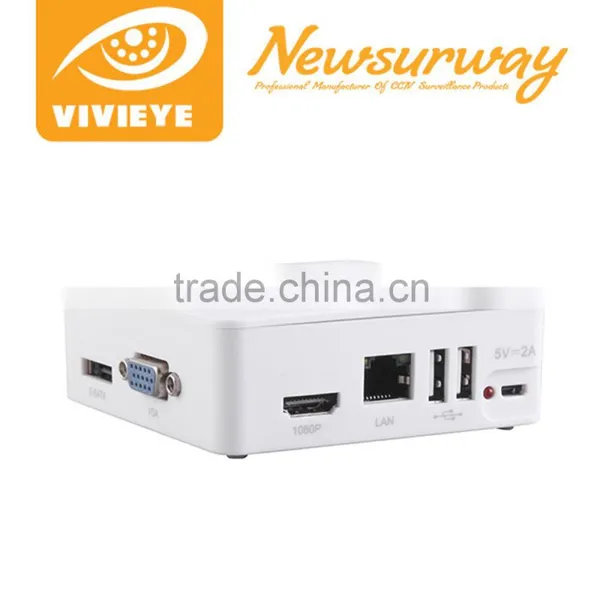

HD H.264 4ch home security super mini NVR newtwork portable

Model Number

 NVR-6104C

 Operating System

 Embedded LINUX operating system

 Image Code Control

 Image code quality adjustable, variable bitstream and constant bitstream optional

 Dual Stream

 Each channel can set main stream and sub stream

 Video Standard

 1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps

 Monitoring Image Quality

 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

 Image Motion Detection

 Each screen can set mutiple detection areas and set 6-level sensitivity(IPC  Support)

 Recording Playback Quality

 4ch playback in 4ch 720/960P mode;1ch 1080P playback in 1/4ch 1080P mode

 Region Cover

 Every channel can set 4 cover regions(IPC Support)

 Recording Mode

 Support manual , auto, dynamic detection, alarm trigger record mode(Partly  needs IPC Support)

 Backup Way

 Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup

 Operation Way

 Mouse

 Local Login

 User name and password

Recording Storage

 Local HDD, network

 External

 Ports

 Video Input

 4×(1280*720)+sub[960*576]+4Ref.+4Play 4ch 1MP IP camera

 4×(1280*960)+sub[960*576]+1Ref.+4Play 4ch 1.3MP IP camera

 4×(1920*1080)+sub[960*576]+4Ref.+1Play 4ch 2MP IP camera

 1×(1920*1080)+sub[960*576]+4Ref.+1Play 1ch 2MP IP camera

 4×(720*576)+sub[352*288]+4Ref.+4Play 4ch 0.4MP IP camera

 Audio Input

 4ch network audio input

 Video Output

 1ch VGA+1ch HDMI

 Network Port

 1 RJ45,10M/100M self-adaptive LAN port

 USB Port

 2 USB 2.0 ports

 Wireless Port

 3G,WIFI

 HDD

 Mobile HDD/E-SATA/USB Disk

 Mobile Surveillance

 Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

 Power Supply

 5V2A

 Power Consumption

 ≤10W(without HDD)

 Working Temperature

 - 10℃~+55℃

 Working Humidity

 10%-90%

 Dimension

 Equipment:88mm×88mm×32mm, Packing:185.5mm×115.5mm×36mm

 Weight(without HDD)

 N.W.: 105g; With packing:250

 Installation Way

 Desktop Installation
