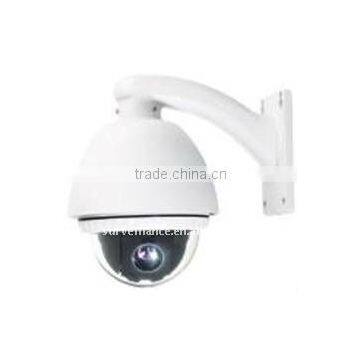

100Z Zoom PTZ High Speed Dome Camera

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ViVieye
Model Number	HSP-650-C10X	Style	Dome Camera
Sensor	CCD	Technology	Pan / Tilt / Zoom
Type	Other, Video Camera

Product Description

Specifications

1. 100X zoom PTZ high speed
2. 1/4Super HAD CCD sensor
3. 360 pan rotation, 270 tilt
4. 127 preset positions
5.OSD menu

our 100X zoom high speed dome camera is with super HAD CCD, it;s main features:

360°continuous pan rotation and 180°tilt rotation with auto-flip function.

Max. 360 /sec high speed Pan/Tilt Motion

With 127 preset points, 8 groups Swing action can be stored, This enables to move camera repetitively between two preset positions with designated speed.

Max .4 of Patterns can be recorded and played back. This enables to move camera to follow any trajectory operated by joystick as closely as possible

Max- 8 set of Group action can be stored. This enables to move camera repetitively with combination of Preset or Pattern or Swing. A Group is composed of max. 20 entities of Preset/Pattern/Swings.

Automatic error correction and repair functions, all-weather rotation, no error;

Automatic memory function when power off..

Built-in integrated digital color camera with zooming lens, high sensibility and high resolution; auto focus; auto brightness control, auto white balance

OSD menu is provided to display the status of camera and to configure the functions interactively

4 channels input alarm function: If an external sensor is activated, camera can be set to move to the corresponding Preset position(Optional)

Technical Specifications:

Manual Speed	0.5° ~360°/Sec(proportional to zoom)
Preset Speed	Max 360°/sec
Rotation Range	Pan 360 degree rotating,Tilt 180 degree rotating(Auto-Flip)
Preset	127
Pattern	4 pattern
swing	8 swing
Group	8 Group(20 action entities per Group)
communication	RS-485(Pelco-D, Pelco-P)
Screen Display	English Menu
Alarm Input(Optional)	4 input
Constant temperature system	With outside cover, built-in fan and heater
Operation Temperature	-20~50°C
Operation Humidity	<90%PH
Power	DC12V/1.2A
Dimensions	144×190(H)mm
Weight	Approx.1.2KG

Horizontal RES	420TVL
Imaging Device	1/4Super HAD CCD
Optical Lens	F1.7(W)~3.7(T) f=4.0~40mm
Zoom	100x(10x Optical zoom,10x Digital Zoom)
TV System	PAL(NTSC)
S/N Ratio	≥48dB
Min. Illumination	Normal:1Lux: Night: 0.1Lux
Video Output	CVBS Output(1Vp~p-p75 impedance)
Synchronization System	Internal
Focus Mode	Auto/Manual
Image Effect	Auto/Color /Monochrome/Negative
White Balance	Auto/Indoor/Outdoor/Manual
Exposal Compensation	Auto/Manual
BLC	ON/OFF
Image Freeze	ON/OFF
Mirror Image	ON/OFF
Lens Initialization	Auto
Power Supply	DC 12V ±10%
Power	Max.2.5W
N.W.	90g
