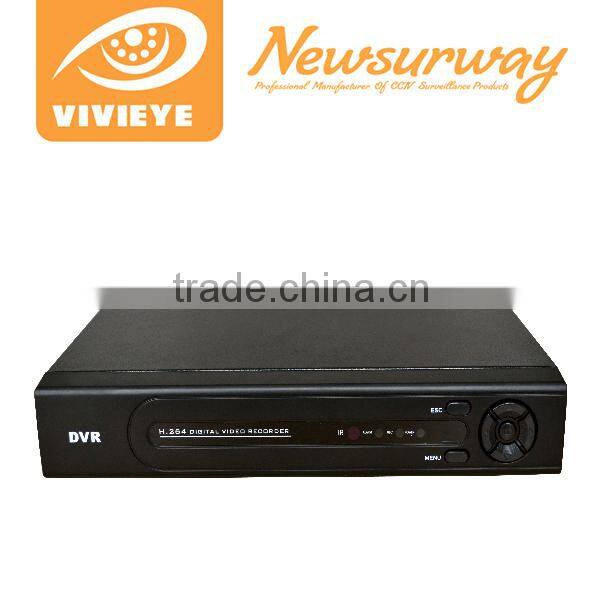

New Product AHD DVR Three in One 1080P Network Real-time HD iDVR Cloud Service Support
Key words: 4ch 1080P AHD DVR
Main features:
- Ø HD iDVR Three in one: DVR / HVR / NVR features 3-in-1, multi-mode input, support four analog video encoding, support for high-definition video mixing analog inputs + network support pure HD network video input.
- Ø Step on the Internet:With cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
- Ø Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
- Ø Playback quality: Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
- Ø Main and Sub Stream:Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
- Ø Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
- Ø Display: support VGA, HDMI HD output.
- Ø Operation interface:Similar to Windows operating style, easy to get started with powerful mouse right-click function.
- Ø Network:Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
- Ø Browsers:Support IE,Chrome,Firefox,Safari browsers.
- Ø Remote Access:3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
- Ø Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
- Ø Others:With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
Technical specification:
Model |
AVR-6304JHB |
|
System |
Main processor |
Hi3531 |
Operating system |
embedded Linux |
|
System resources |
Simultaneously multi-channel real-time recording, playback, network |
|
operation, USB backup | ||
Interface |
Operator interface |
support 16-bit true color graphical menu interface and mouse operation |
Preview |
1/4 |
|
Video |
Decode |
H.264(High Profile) |
Monitor quality |
VGA,HDMI:HD |
|
Playback quality |
AHD-H/ AHD-M /D1 |
|
Encode ability |
4* AHD-H |
|
Decode ability |
4* AHD-H |
|
Multi-mode input |
analog: 4* AHD-H;4* AHD-M; |
|
hybrid: 2*AHD-H(ananlog)+2*1080P(network) | ||
4*AHD-M(analog)+4*720P(network) | ||
Network only:1*1080P+8*720P;4*1080P;20*960H; | ||
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level |
|
sensitivity can be set (Limited local channel) | ||
Audio |
Audio compression |
G.711A |
Intercom |
support |
|
Record &playback |
Record mode |
manual>alarm>motion detection>timing |
Local Playback |
4ch(local input mode) |
|
Search mode |
Search by time, calendar, event, channel |
|
Storage& backup |
Space occupation |
1080P 20~30G/day*channel;720P ~20G/ day*channel ;960H 12~20G/day*channel;audio:691.2M/ day*channel |
Video storage |
HDD, network |
|
Backup mode |
Network, USBhard disk, USB burner, SATA burner |
|
External Interface |
Video input |
4ch BNC |
Video output |
1ch VGA, 1ch HDMI |
|
Loop Vout |
N/A |
|
Audio input |
4ch RCA |
|
Audio output |
1ch RCA |
|
Alarm input |
0 |
|
Alarm output |
0 |
|
Network interface |
RJ45 10M/100M self-adaption |
|
PTZ control |
1*RS485, Support kinds of PTZ protocols |
|
USB |
2* USB 2.0 ports |
|
HDD |
1*SATA ports (Max 4TB/per) |
|
Wireless |
3G, WIFI (extend via USB) |
|
Power supply |
12V/4A |
|
General |
Power Consumption |
<15W (without HDD) |
Temperature |
0℃-+55℃ |
|
Humidity |
10%-90% |
|
The specification is subject to change without notice
