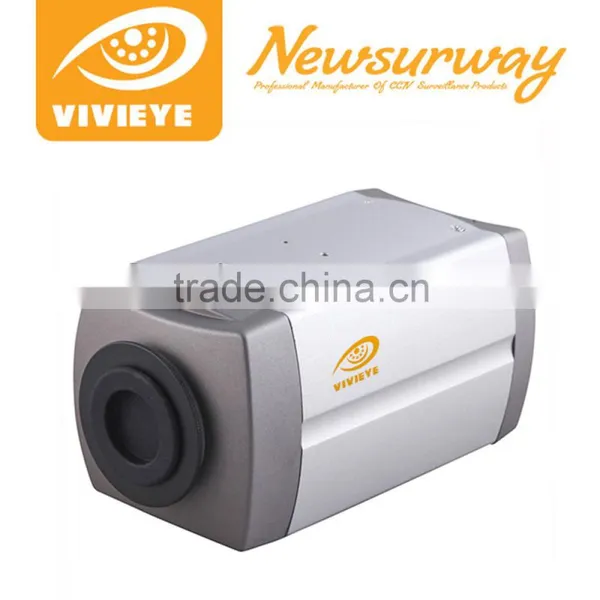

High Defination 960P Sony Cmos IMX238 AHD Box Camera Analog Integrated Block Zoom Camera
1. By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;
2. Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not partial color distortion;
3. Analog HD AHD-M@AHD video output;
4. Support for OSD menu options, can be freely adjusted image, function;
5. The transmission distance is 500 meters;
6. The need to access the back-end AHD DVR;
7. Support the ultra low illumination;
8. Support automatic electronic shutter function, adapt to different monitoring environment;
9. Waterproof design IP66, reliability;
10. Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti- jamming and easy to implement.
Technical Specification
Model |
AHD-NZ300AK |
Max. Resolution |
1280*960 |
Sensor |
SONY IMX238 |
Signal system |
AHD |
SNR |
> 47dB |
Dynamic range |
73.3dB |
Camera lens |
18X Optical Zoom(4.7±10%~84.6±10%mm) |
Focus range |
0.01m(WIDE) / 1.0m(TELE) |
Perspective |
49.6°(WIDE) ~ 2.5°(TELE) |
Low Illumination |
Color 0.1 / B&W 0.01LUX |
Video output |
Composite video output 1.0Vp-p(75&/BNC) |
Control mode |
Standard 9PIN output |
Communication Protocol |
VISCA,BAUD:9600bps PELCO-D/P,BAUD |
OSD |
Chinese, English, |
Focus mode |
Auto / manual / keying |
Electronic Shutter |
Auto / manual 1/50 ~ 1/10000 S |
Gain control |
Auto / manual 1~7(5~30db) |
White Balance |
ATW / AWC / Indoor / Outdoor / MANUAL W |
Mirror Image |
Horizontal/Vertical / OFF |
Motion |
Off / on (Four custom) |
Privacy |
Off / on (Four custom:Color/Mosaic etc.) |
Back light |
Off / BLC / HSBLC |
DWDR |
ON / OFF / Auto |
DEFOG |
ON / OFF |
Noise Reduction |
2D&3D |
Identification code |
0-255 |
Day & Night switching |
Automatic / Color / B&W Mode;Automatic synchronization IR-CUT |
Power Supply |
DC12V ± 20% |
Dimension(mm) |
89.2(L)×50(W)×57(H)mm |
Filters |
IR-CUT :Auto/ Day / night |
About Company
NEWSURWAY CCTV, a professional CCTV Camera and DVR manufacturer for about 14 years in China
We supply CCTV AHD Cameras and DVRs, IP Cameras and NVR, AHD DVR Kits, and NVR Kits.
NEWSURWAY regard client as our god, regard service as our life, regard innovation as our soul. With this in our heart, NEWSURWAY will get win-win situation with you together all the time.
Choose NEWSURWAY will be your correct choice for CCTV Supplier in China.
Quality Certification
NEWSURWAY attends International Exhibitions every year,such as ISC West show in Germany Essen, USA, EXPOSEC in brazil, Crocus Exhibition Center Moscow in Russia, Intersec in Dubai, IFSEC in UK, EXPO in Mexico etc.
1. Factory: More than 4500 square meters, available for OEM& ODM;
2. Lead time: 3-7 working days after payment received;
3. Authentication: CE, FCC, SGS & ROHS;
4. Multiple payment: T/T, L/C, Western Union, Paypal;
5. Guarantee: 1-2 years;
6. QC inspection: Strict 5 steps before shipment;
7. Products Innovation: 10-20 New items per month.
After-sales Service:
1. All our products will be checked in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Thanks for supporting NEWSURWAY.Welcome to our company for guidance.
